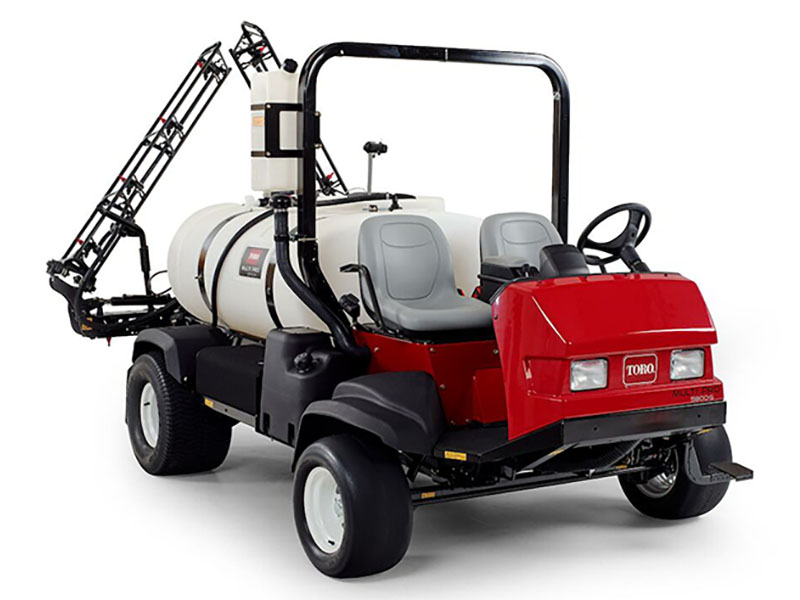

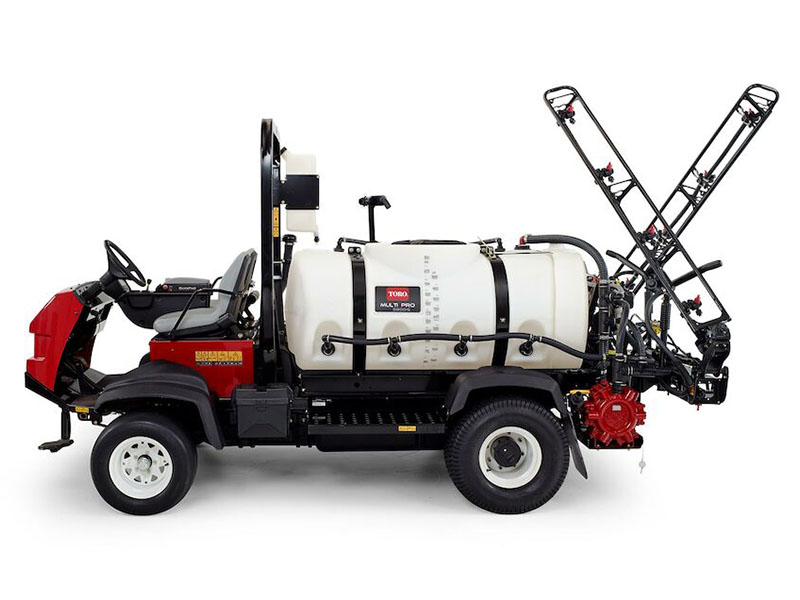

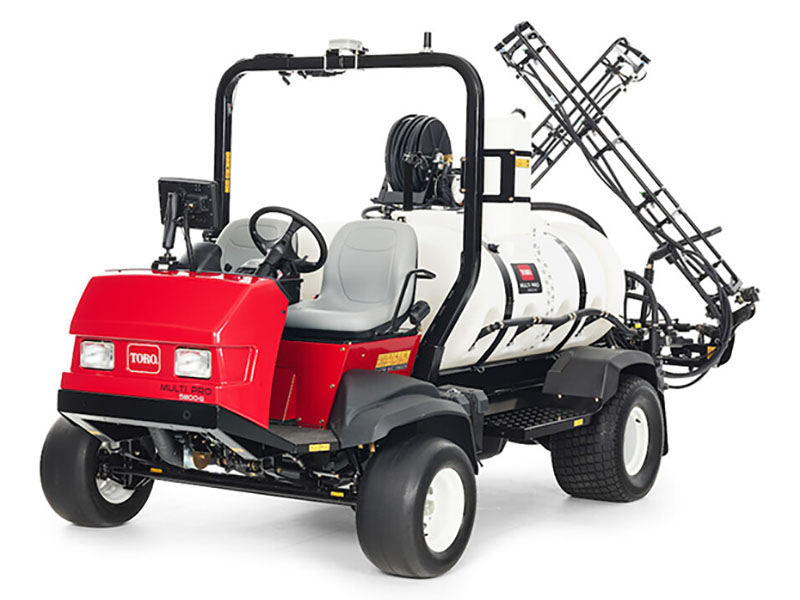

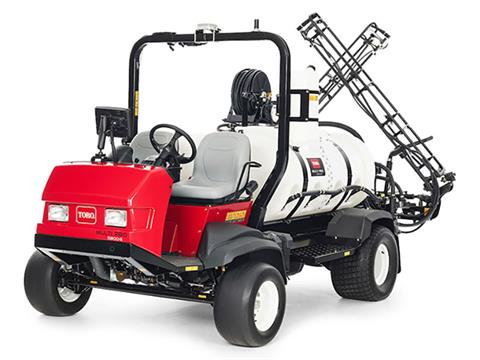

2025 Toro Multi Pro 5800

Features

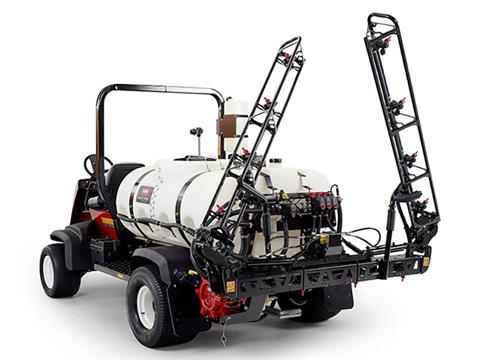

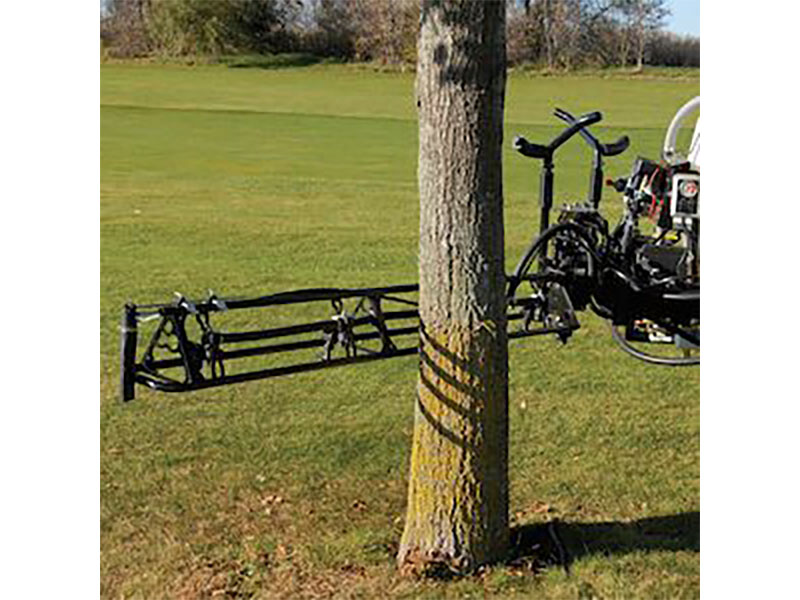

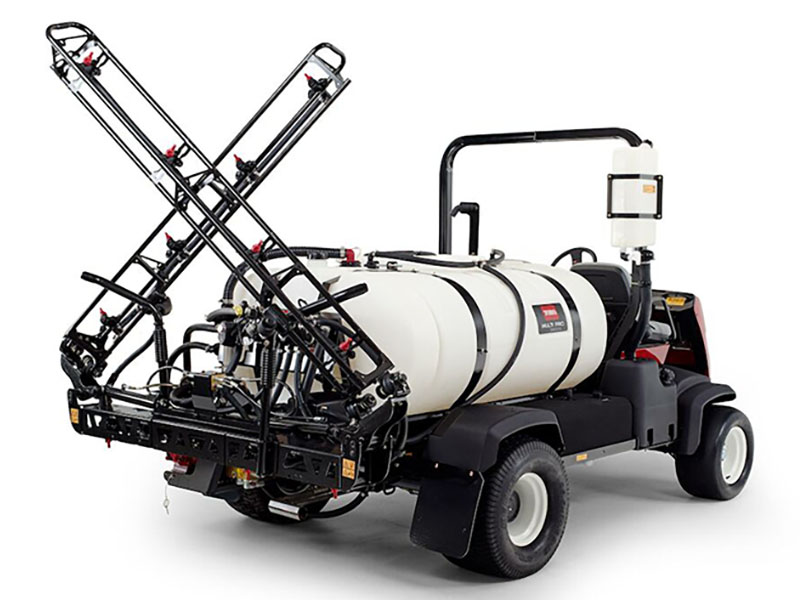

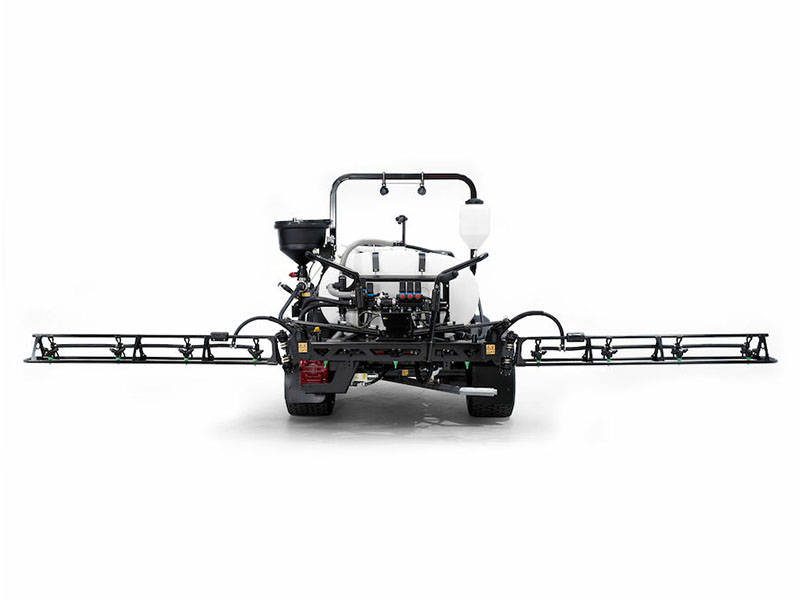

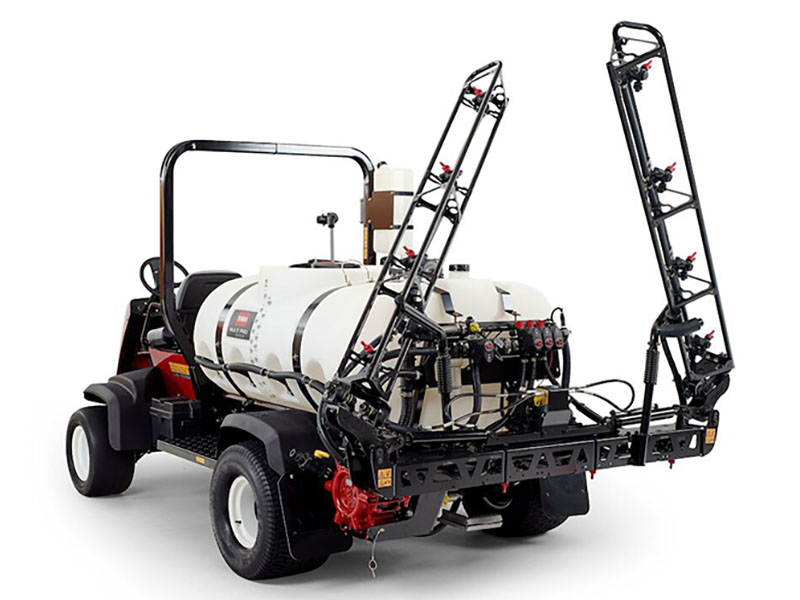

• RUGGED SPRAY BOOMS: The triangulated truss design provides protection to nozzles. Transport cradles with breakaway capability secure wing booms during transport. Lift and lower booms without leaving the seat. Spring-loaded breakaway system returns boom to spray position after an impact during forward or reverse travel. Reduce damage to trees or other objects with specially rounded boom ends. Three section 20.5’ (6.25 m) boom width.

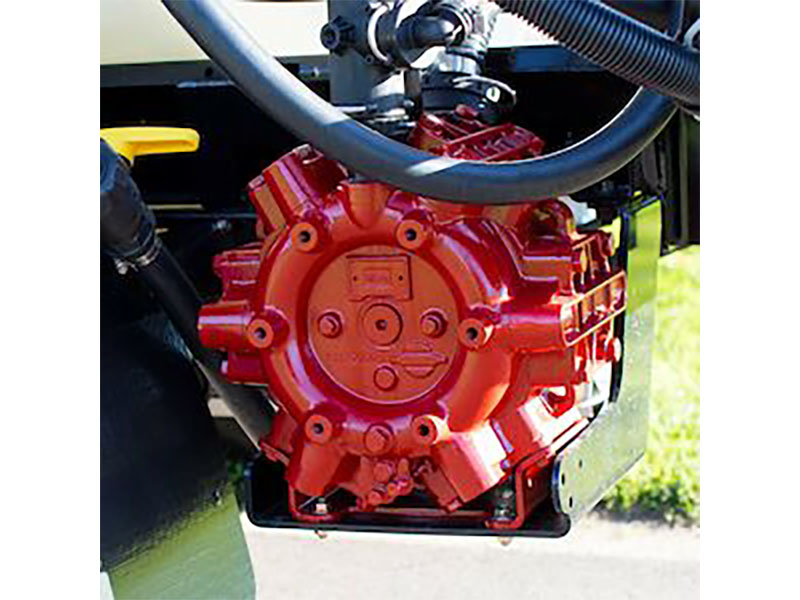

• SIX DIAPHRAGM PUMP: An industry exclusive! This oversized pump satisfies the highest spray rates while simultaneously supplying aggressive agitation flow. The self-priming, positive displacement design means the pump can be run dry without damage. Its dry sump means there's no risk of oil/lubricant contaminating the spray application.

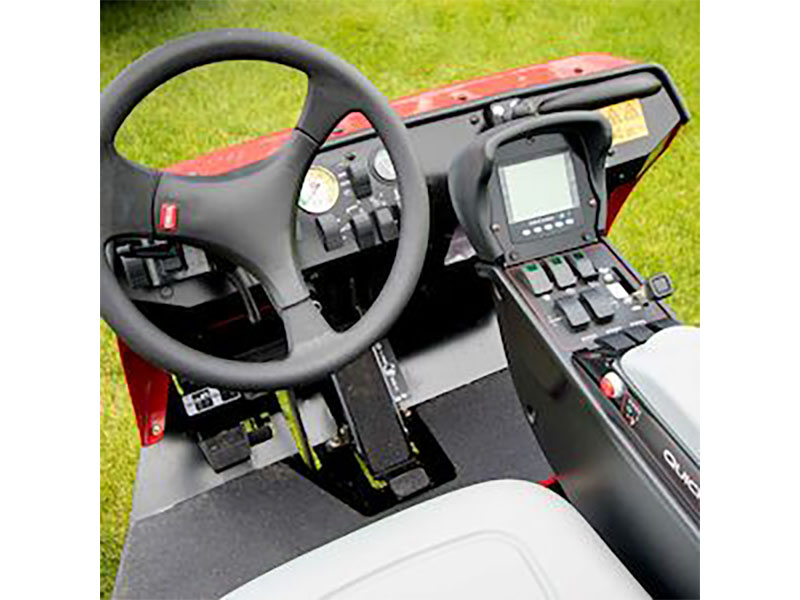

• CENTER CONTROL CONSOLE: Positions operational switches and throttle at the operator's fingertips for convenient access and control. With Quick Find™ controls, the operator can easily locate the buttons without taking their eyes off the spray path.
• EXCELARATE™ RATE CONTROLLER: Digital pressure display, Toro-exclusive spray system icons and nomenclature, programmable vehicle parameters (width, nozzles, etc.) and understandable fault codes (engine, operator presence, parking brake, etc.) make operation simple and intuitive. Developed by Toro specifically for turf applications. Delivers features that no other controller can offer. Simplified calibration, multiple application rates and a special boost feature make operating the Multi Pro 5800 easier than ever before. Tracks applications for sub areas and total spray area for accurate record keeping.

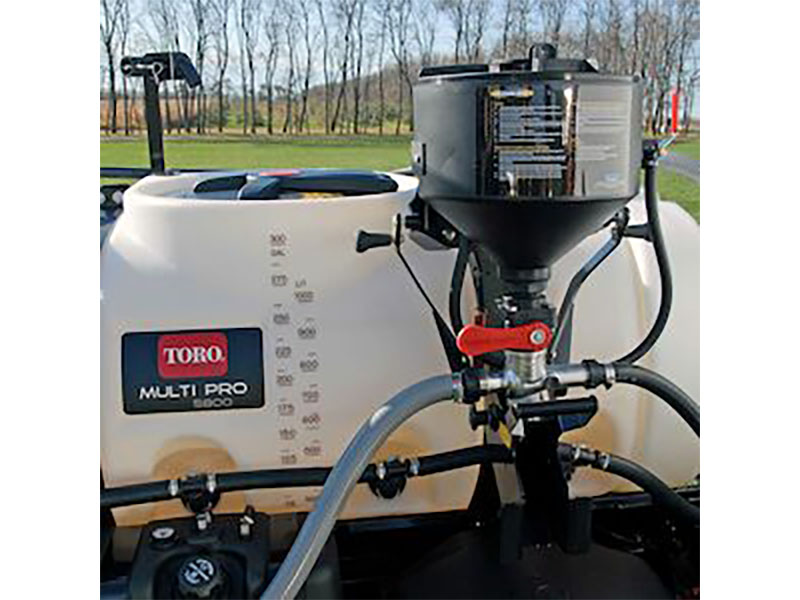

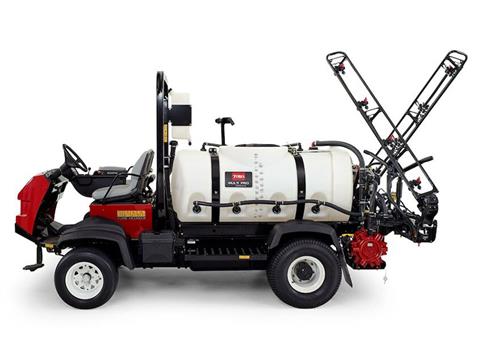

• 300 GALLON (1136 L) CHEMICAL TANK: Ready for the long haul, this completely redesigned tank incorporates four, 30˚, side-mounted agitation nozzles to ensure the homogeneous mixing of chemicals for application accuracy. An offset fill well provides easy access for loading chemicals. Engineered polymer material won't crack, dent, rust, chip or peel.
• HYDROSTATIC VEHICLE DRIVE SYSTEM: Provides a high torque traction system that prevents spinning and turf damage. A speed locking device provides a constant spraying speed.

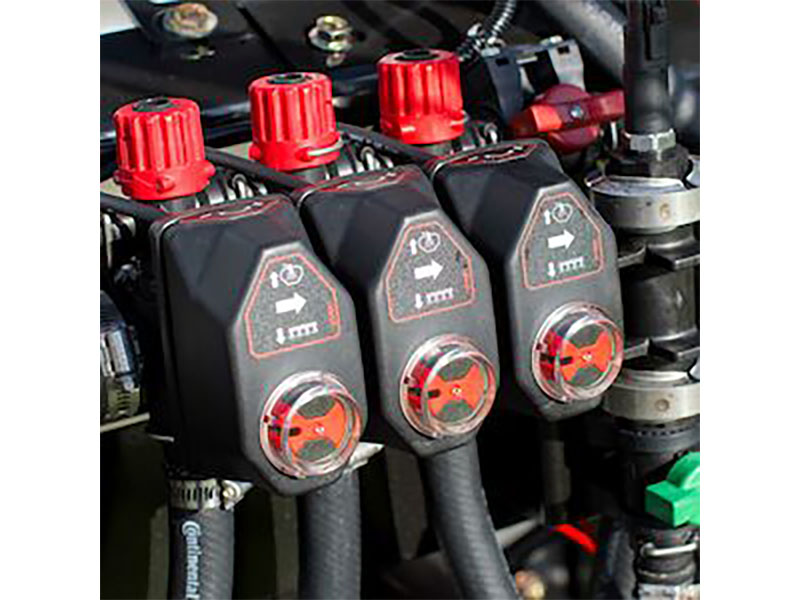

• KZVALVE® SECTION VALVES: Industry exclusive KZValve® electronically-activated ball valves are easily serviceable for long life and outstanding performance.
• SPRAY NOZZLES: Full range of contact, systemic and low drift nozzles are available. Air inclusion nozzles provide improved accuracy, uniform droplet size, and reduced drift and even coverage.
• Agitator - Four side-mounted jet agitation nozzles for full tank agitation
• Electrical system - 12V battery, 690 cold cranking amps at 0° F (-18° C). 12V, 60A alternator. Dash mounted ignition switch.
• Gauges / Instrumentation - Ignition key switch; analog spray system pressure gauge; fuel gauge; battery voltage lamp; oil pressure warning lamp; coolant temperature warning lamp; InfoCenter™ display console.
• GeoLink® capable - Yes
• Lights - Rectangular 12V, 37.5W halogen sealed beam headlights
• Main frame / Chassis - Welded high strength steel tubular construction
• Rated capacity - 300 U.S. gal. (1,135.6 l)
• Seat - Bucket with easy tilt forward bracket; removable bolts allow for adjustment for various seat positions; seats are interchangeable from left to right.
• Sound level - 90 dB(A) at operator ear under normal operation
• Traction system - Hydrostatic system driving double planetary gear reduction rear wheel drives; foot pedal control of forward/reverse ground speed
• Valve actuators - 12 total triple-turret nozzle mounts with diaphragm check valves
• Vehicle controls - Throttle control; spray pump switch; tank agitation switch; individual boom section switches; master boom switch; speed-lock switch; manual / automatic spray mode switch; boom lift / lower switches; manual application rate control (pressure) switch; USB port; 12V power socket; ExcelaRate™ automatic spray rate control (via InfoCenter).
