2024 Gravely USA Pro-Turn Mach One 60 in. Kawasaki FX1000V EFI 38.5 hp

Gravely Red • New Lawn Mowers - Riding

MSRP

$17,660

Call Now!
Previous
Next

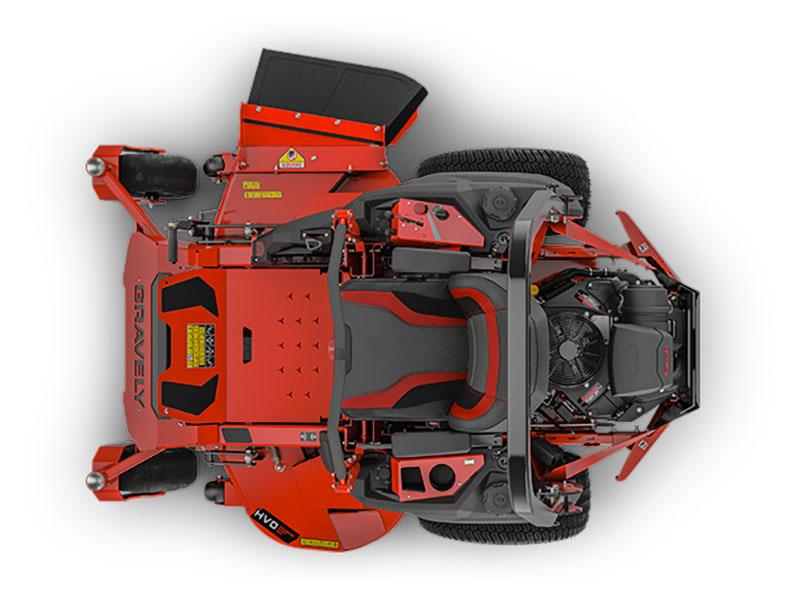

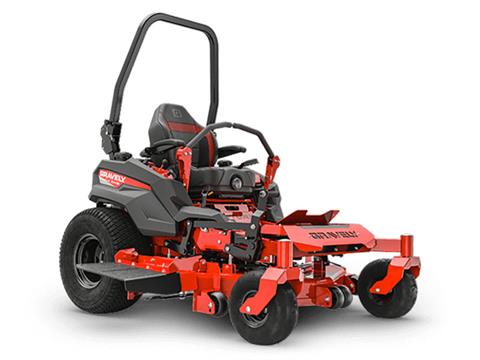

2024 Gravely USA Pro-Turn Mach One 60 in. Kawasaki FX1000V EFI 38.5 hp in Gaylord, Michigan - Photo 1

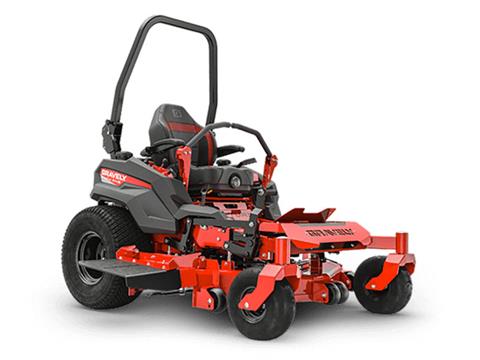

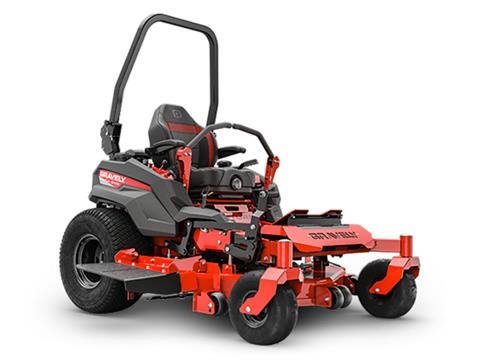

2024 Gravely USA Pro-Turn Mach One 60 in. Kawasaki FX1000V EFI 38.5 hp in Gaylord, Michigan - Photo 2

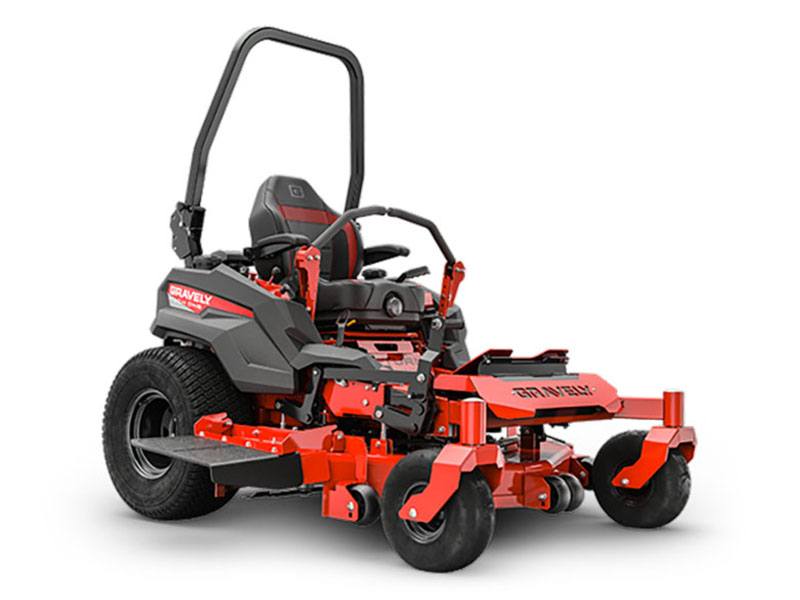

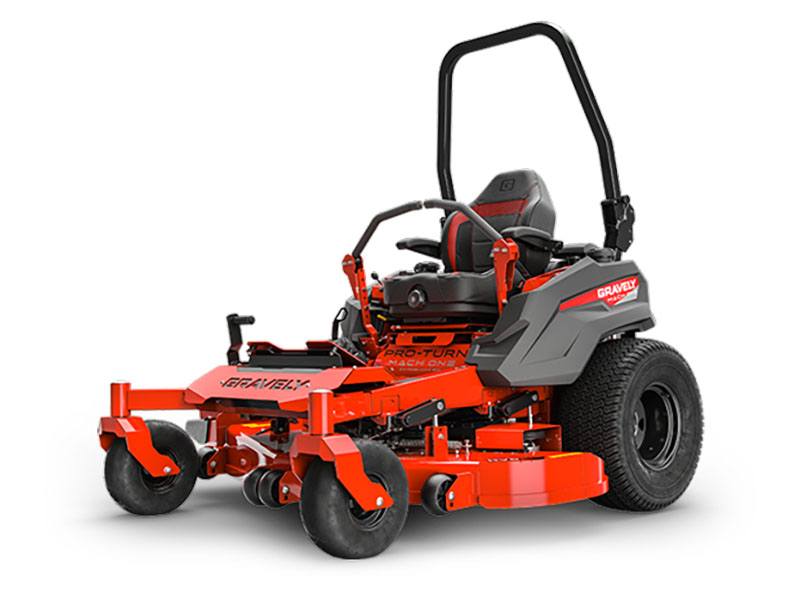

2024 Gravely USA Pro-Turn Mach One 60 in. Kawasaki FX1000V EFI 38.5 hp in Gaylord, Michigan - Photo 3

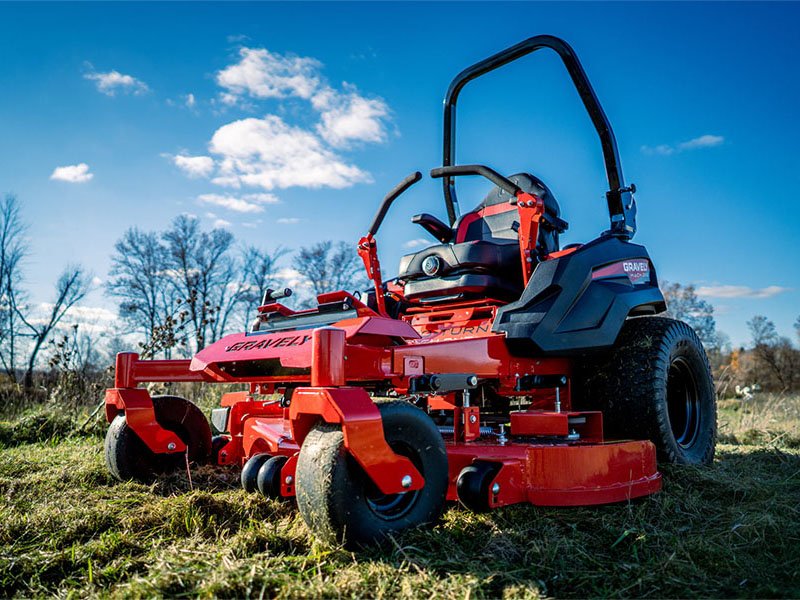

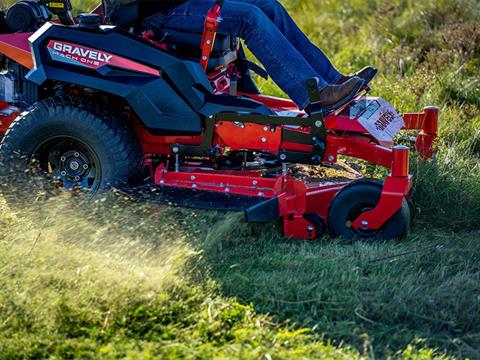

2024 Gravely USA Pro-Turn Mach One 60 in. Kawasaki FX1000V EFI 38.5 hp in Gaylord, Michigan - Photo 4

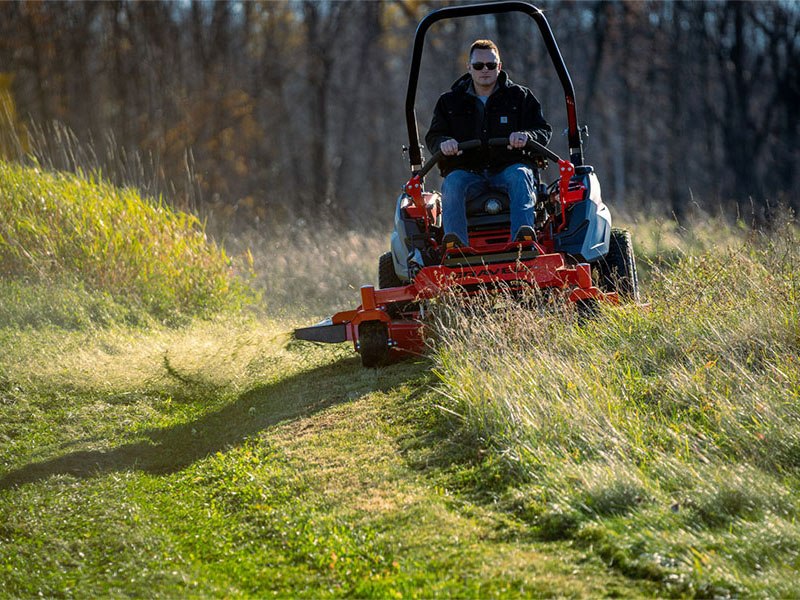

2024 Gravely USA Pro-Turn Mach One 60 in. Kawasaki FX1000V EFI 38.5 hp in Gaylord, Michigan - Photo 5

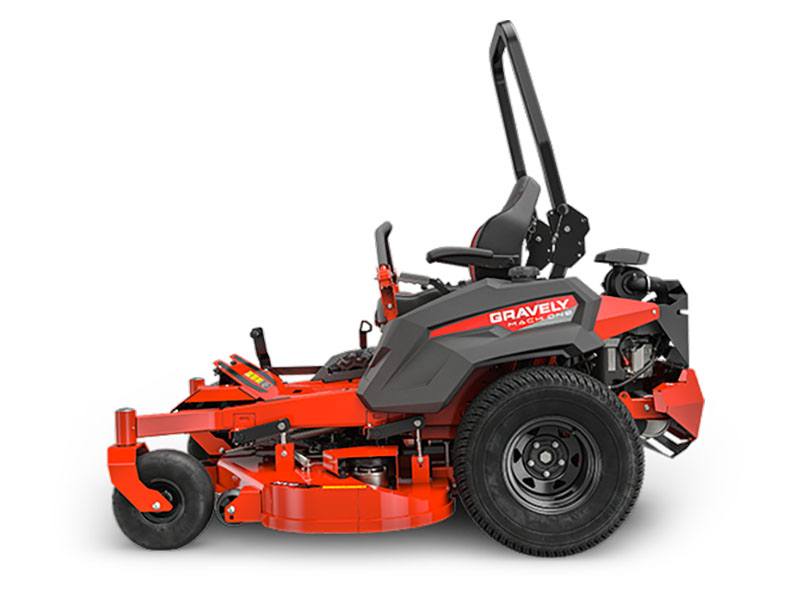

2024 Gravely USA Pro-Turn Mach One 60 in. Kawasaki FX1000V EFI 38.5 hp in Gaylord, Michigan - Photo 6

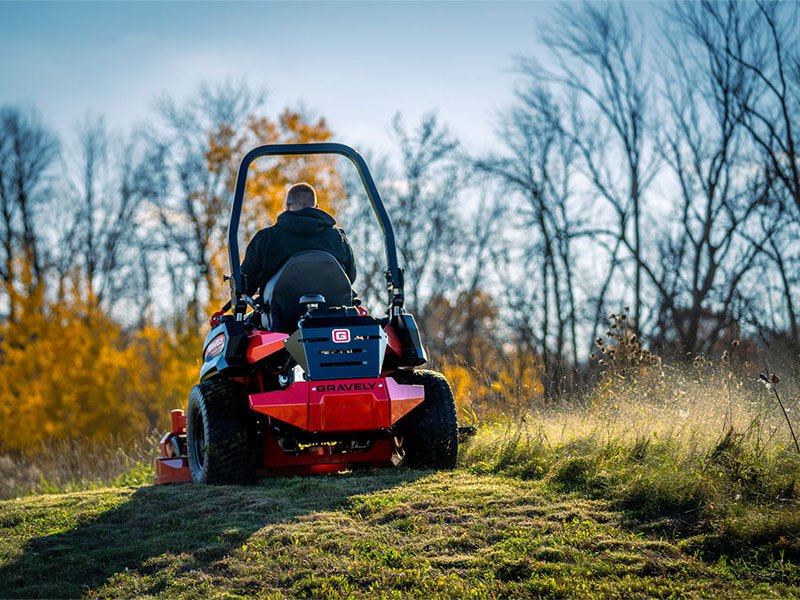

2024 Gravely USA Pro-Turn Mach One 60 in. Kawasaki FX1000V EFI 38.5 hp in Gaylord, Michigan - Photo 7

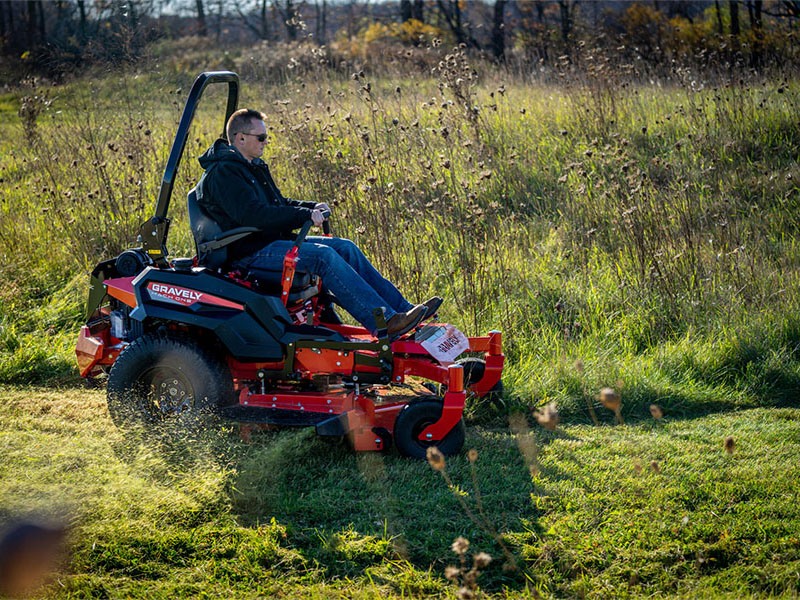

2024 Gravely USA Pro-Turn Mach One 60 in. Kawasaki FX1000V EFI 38.5 hp in Gaylord, Michigan - Photo 8
2024 Gravely USA Pro-Turn Mach One 60 in. Kawasaki FX1000V EFI 38.5 hp in Gaylord, Michigan - Photo 9
Previous
Next

Request More Information

By pressing SUBMIT, you agree that DX1, LLC and Otsego Outdoor Power may call/text you at the number provided, for either informational or marketing purposes, using an automatic telephone dialing system or pre-recorded/artificial voices. Msg/data rates may apply. You don’t need to consent as a condition of any purchase & you may revoke your consent at any time. You also agree to our Privacy Statement & Terms of Use.
WHERE OVERGROWN GRASS BECOMES JUST GRASS.
Overgrown properties, stalky grasses and wet conditions are no match for the MACH ONE. The tunnel deck directs clippings away from the blades, keeping them from getting bogged down.
Request More Information Print Brochure
Calculate Payment
Compare Models

2024 Gravely USA Pro-Turn Mach One 60 in. Kawasaki FX1000V EFI 38.5 hp

Condition
New
Category
Lawn Mowers - Riding
Model Type
Pro-Turn Mach One
Model Code
992519
Color
Gravely Red

Features

  • HIGH-VOLUME OUTPUT (HVO) DECK: The HVO deck provides increased depth from trim side to discharge side so it can process greater material volume.
  • TUNNEL CHAMBER: An advanced cutting chamber is formed by setting the blades back four inches from the front of the deck for less clumping and even grass dispersion.
  • INTEGRATED SEAT ISOLATORS: Bumps and engine vibration are smoothed out thanks to vibration-absorbing dampers.

General Information

Manufacturer
Gravely USA
Model Year
2024
Model
Pro-Turn Mach One 60 in. Kawasaki FX1000V EFI 38.5 hp
Model Code
992519
Color
Gravely Red

Body

Seat
High back comfort with full suspension and padded armrests
Rollover Protection (ROPS)
Foldable - Standard

Drivetrain

Drive System
Hydro-gear® ZT-5400 Transaxles
Travel Speed Forward
15 mph (24.1 km/h)
Travel Speed Reverse
6 mph (9.6 km/h)
Drive Tires
Turf 24 x 12-12
Steering Tires
Smooth 15 x 6-6 with greaseable tapered roller bearings
Axles
Front - Fixed, greaseable caster fork tubes

Engine

Engine Make
Kawasaki®
Engine Model
FX1000V EFI
Horsepower
38.5 hp
Displacement
999 cc
Fuel Capacity
13.4 gal. (50.7 l)

Measurements

Length
86.2 in.
Width

Without chute up - 61 in.

With chute down - 74.6 in.

Height

With ROPS ext - 76 in.

With ROPS down - 47.75 in.

Weight
1,502 lb.
Cutting Width
60 in.
Ground Clearance
4.5 in. (under rear wheels)
Mowing Height Range
1.5 - 5.5 in.
Mowing Height Adjustments
19 positions

Operational

Deck Construction
Welded
Deck Material
7 ga. steel with 0.25 in. spindle reinforcement
Deck Engagement
Ogura® GT3.5 electric clutch
Spindles

Housing material - Forged aluminum

Bearings - Ball

Number of Spindles
3
Blade Tip Speed
18,633 fpm

Other

Warranty

Unit - 5 year / 1,250 hr. commercial / no hour limit first two years - see your professional gravely® dealer for complete warranty details

Deck shell and frame - Limited Lifetime
