2024 Gravely USA Pro-Turn 348 48 in. Kawasaki FX801V 25.5 hp

Gravely RedNew Lawn Mowers - Riding

MSRP

$13,876

Previous
Next

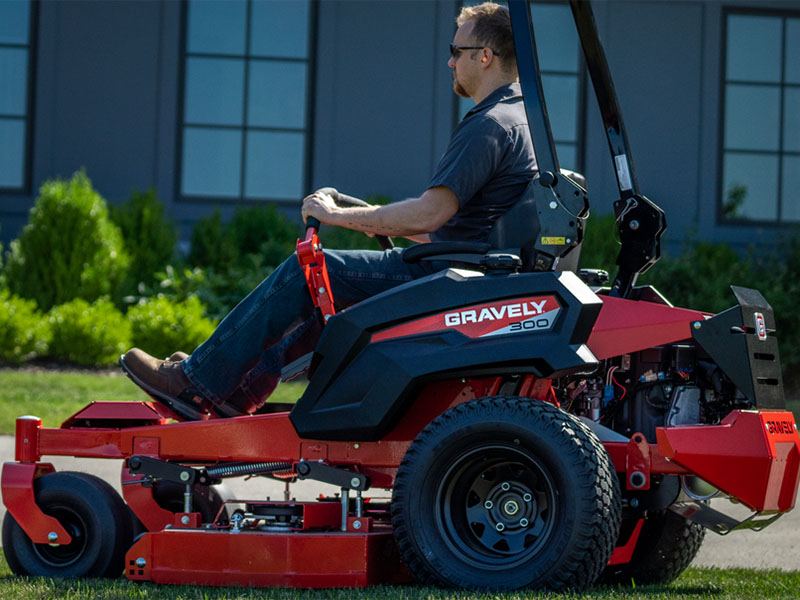

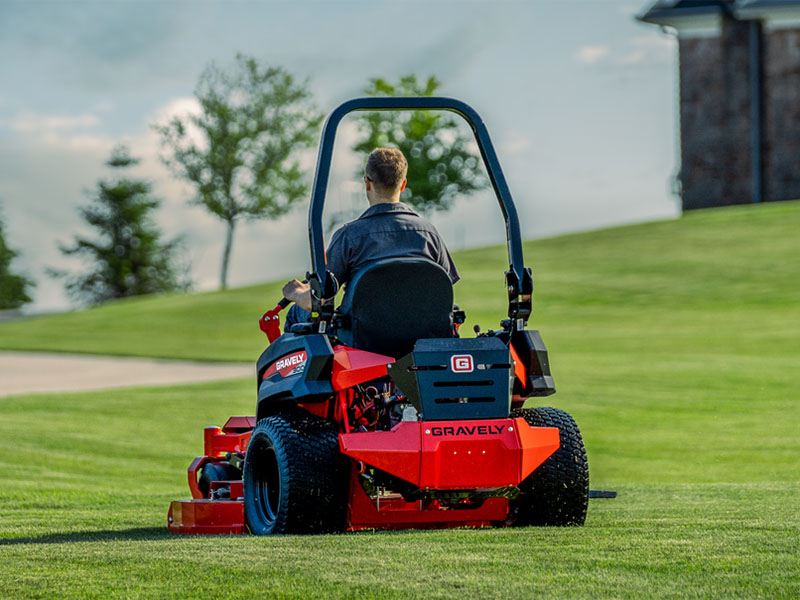

2024 Gravely USA Pro-Turn 348 48 in. Kawasaki FX801V 25.5 hp in Gaylord, Michigan - Photo 1

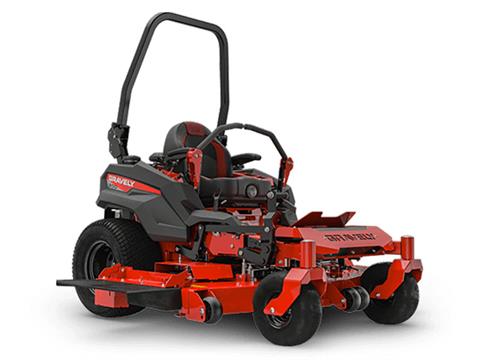

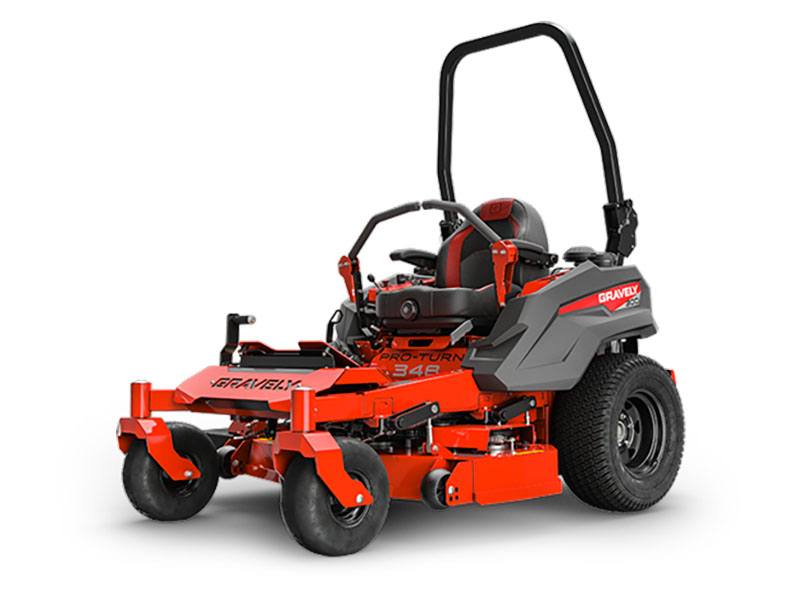

2024 Gravely USA Pro-Turn 348 48 in. Kawasaki FX801V 25.5 hp in Gaylord, Michigan - Photo 2

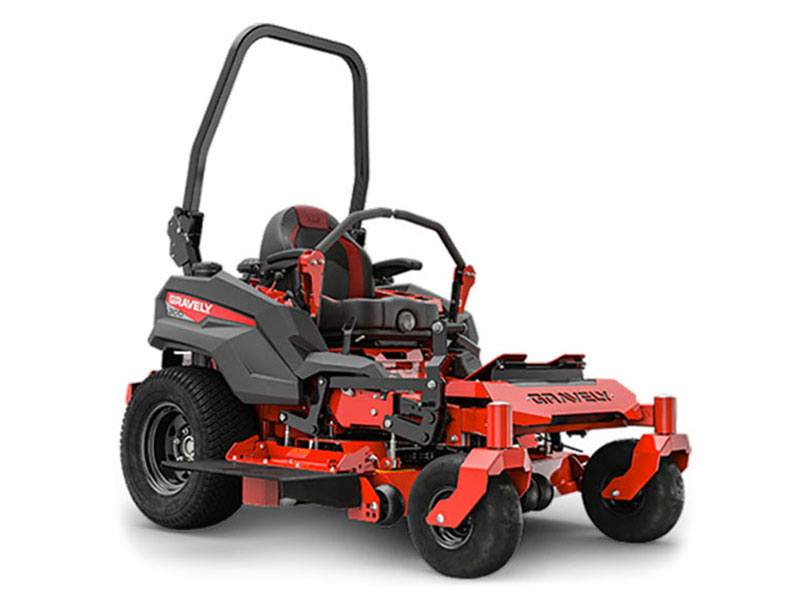

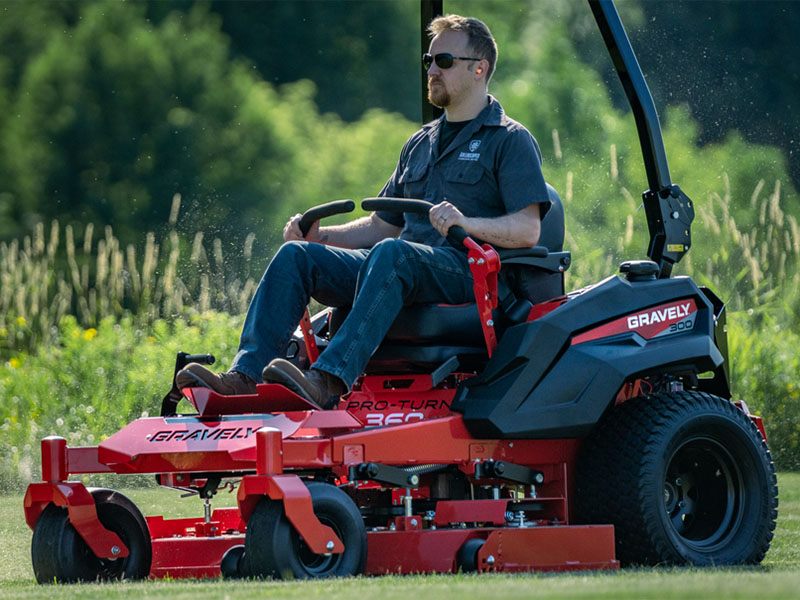

2024 Gravely USA Pro-Turn 348 48 in. Kawasaki FX801V 25.5 hp in Gaylord, Michigan - Photo 3

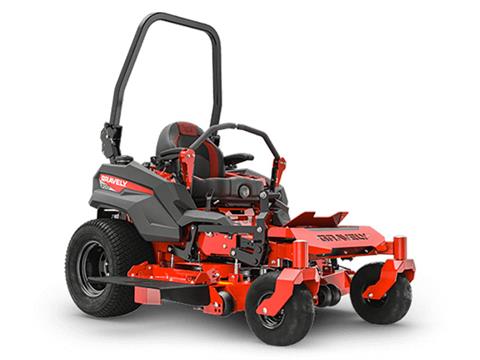

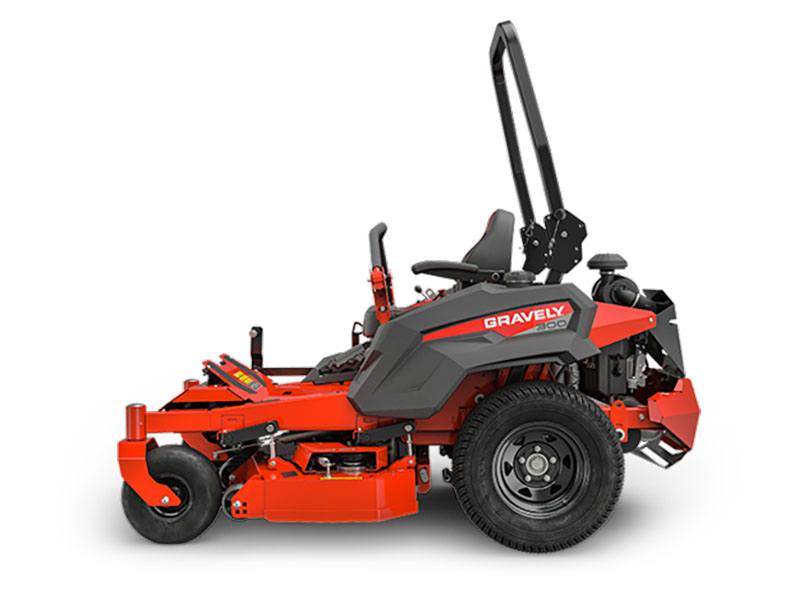

2024 Gravely USA Pro-Turn 348 48 in. Kawasaki FX801V 25.5 hp in Gaylord, Michigan - Photo 4

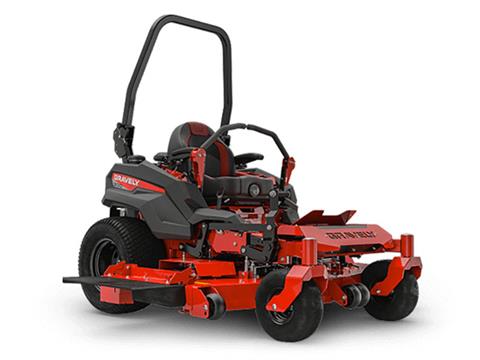

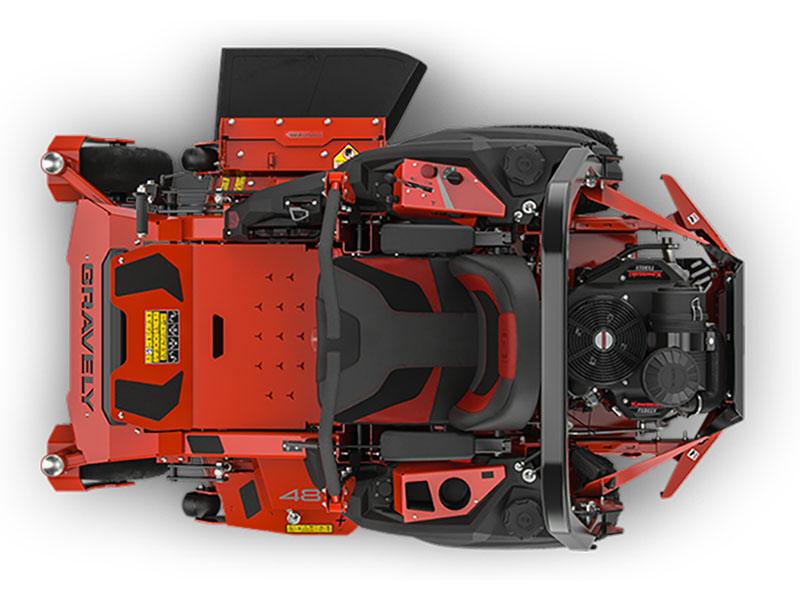

2024 Gravely USA Pro-Turn 348 48 in. Kawasaki FX801V 25.5 hp in Gaylord, Michigan - Photo 5

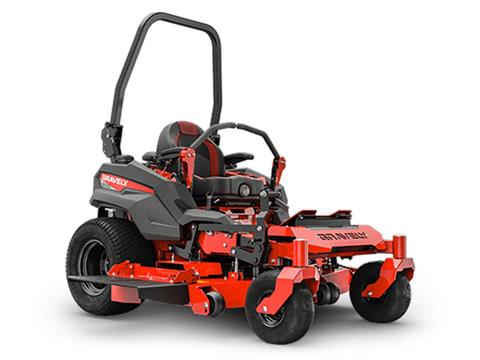

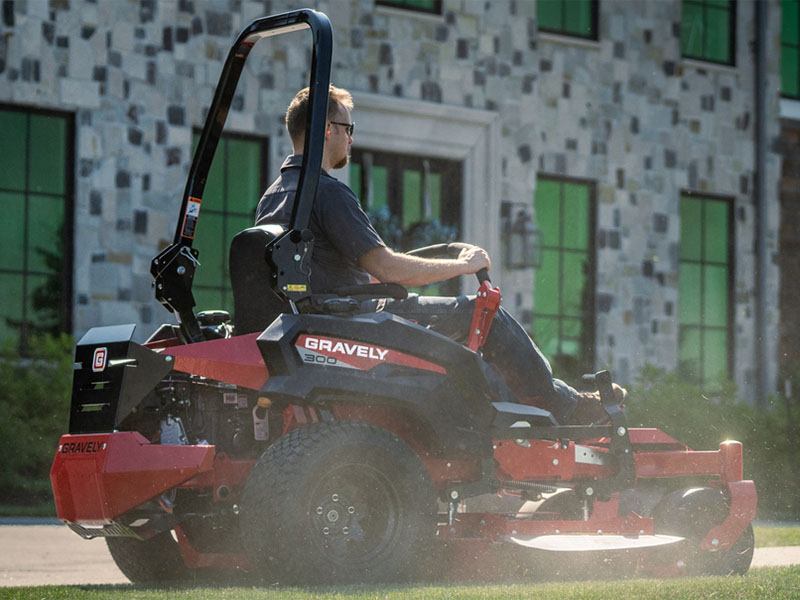

2024 Gravely USA Pro-Turn 348 48 in. Kawasaki FX801V 25.5 hp in Gaylord, Michigan - Photo 6

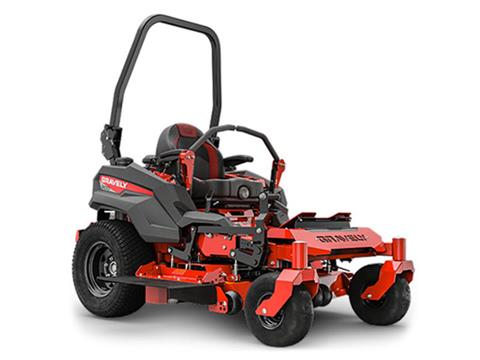

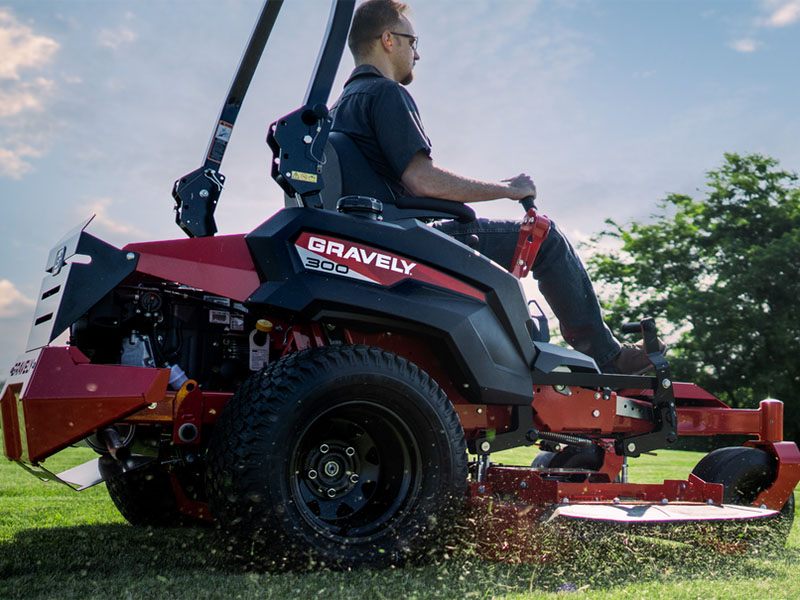

2024 Gravely USA Pro-Turn 348 48 in. Kawasaki FX801V 25.5 hp in Gaylord, Michigan - Photo 7

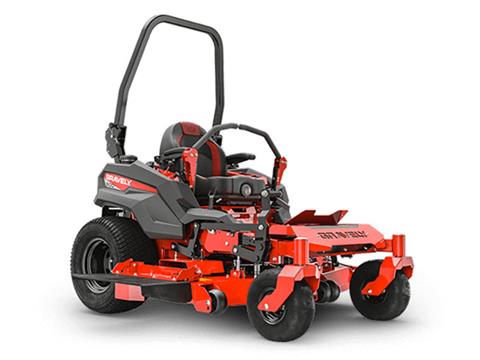

2024 Gravely USA Pro-Turn 348 48 in. Kawasaki FX801V 25.5 hp in Gaylord, Michigan - Photo 8
2024 Gravely USA Pro-Turn 348 48 in. Kawasaki FX801V 25.5 hp in Gaylord, Michigan - Photo 9
Previous
Next

Request More Information

By pressing SUBMIT, you agree that DX1, LLC and Otsego Outdoor Power may call/text you at the number provided, for either informational or marketing purposes, using an automatic telephone dialing system or pre-recorded/artificial voices. Msg/data rates may apply. You don’t need to consent as a condition of any purchase & you may revoke your consent at any time. You also agree to our Privacy Statement & Terms of Use.
COMFORT AND DURABILITY, YARD AFTER YARD.
The Pro-Turn® 348 Kawasaki® FX801. A newly designed, hard-working mower built to keep you comfortable from dawn to dusk. This is mowing to the next-level thanks to its innovative features and superior cutting performance.
Request More Information Print Brochure
Calculate Payment
Compare Models

2024 Gravely USA Pro-Turn 348 48 in. Kawasaki FX801V 25.5 hp

Condition
New
Category
Lawn Mowers - Riding
Model Type
Pro-Turn 300
Model Code
992527
Color
Gravely Red

Features

  • COMFORTABLE SEAT: High back seat has lumbar support and molded armrests. Its red double stitching gives a high-end look with black, dark grey, and red accents.
  • X-FACTOR® 3: Made with 7-gauge steel and specially designed for better grass dispersion thanks to its larger discharge opening, integrated baffles, and sloped front end. Reinforced spindle mounts protect blade operation while the six recessed anti-scalp wheels protect the turf on uneven terrain. Its flip-up rubber chute makes it easy to drive through gates and around obstacles. A 5/8” leading edge provides extra protection to the shell while stabilizer links keep vibration to a minimum. Includes a limited lifetime warranty.
  • FULLY WELDED TUBULAR FRAME: One glace and you can see its strength and ruggedness. Its wide front rail distributes weight for superior balance. Also supports the deck lift for easy engagement. Includes a limited lifetime warranty
  • PARKER TRANSAXLES: Parker HTJ transaxles deliver a top speed of 11mph and have a 12cc pump. Filters are easily accessed from the rear for easy maintenance. This is one complete system which eliminates the need for additional parts, saving both time and money.
  • DIAL HEIGHT ADJUSTMENT: The dial wheel allows easy height adjustment between one and five inches. Toolless adjustable foot pedal with internal assist springs helps lift the deck with little effort.

General Information

Manufacturer
Gravely USA
Model Year
2024
Model
Pro-Turn 348 48 in. Kawasaki FX801V 25.5 hp
Model Code
992527
Color
Gravely Red

Body

Seat
Suspension plush seat with arm rests
Rollover Protection (ROPS)
Foldable - Standard

Drivetrain

Drive System
Parker HTJ transmission
Travel Speed Forward
11 mph (6.8 km/h)
Travel Speed Reverse
5 mph (3.1 km/h)
Drive Tires
24 x 12-16 bias ply turf
Steering Tires
Smooth 15 x 6-6 pneumatic
Axles
Front - Fixed, greaseable caster fork tubes

Engine

Engine Make
Kawasaki
Engine Model
FX801V
Horsepower
25.5 hp
Displacement
852 cc
Fuel Capacity
12.5 gal. (47.3 l)

Measurements

Length
83 in.
Width

Without chute - 51 in.

With chute - 63 in.

Height

With ROPS ext - 76 in.

With ROPS down - 47.8 in.

Weight
1,235 lb.
Cutting Width
48 in.
Mowing Height Range
1.0 - 5.5 in.
Mowing Height Adjustments
19 positions

Operational

Deck Construction
X-Factor® 3
Deck Material
7 ga. steel with 0.25 in. spindle reinforcement
Deck Engagement
Ogura® GT2.75
Spindles

Housing material - Forged aluminum

Bearing - Ball

Number of Spindles
3
Blade Tip Speed
18,000 fpm

Other

Warranty

Unit - 5 year / 1250 hour commercial / no hour limit first 2 years- see your professional gravely dealer for complete warranty details

Deck shell and frame - Limited lifetime
