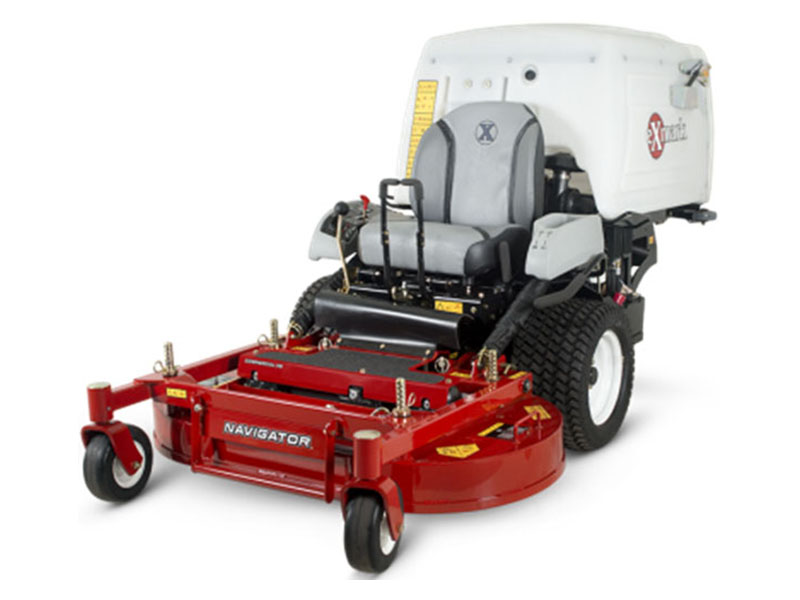

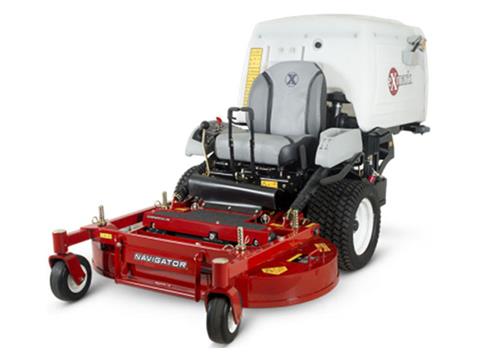

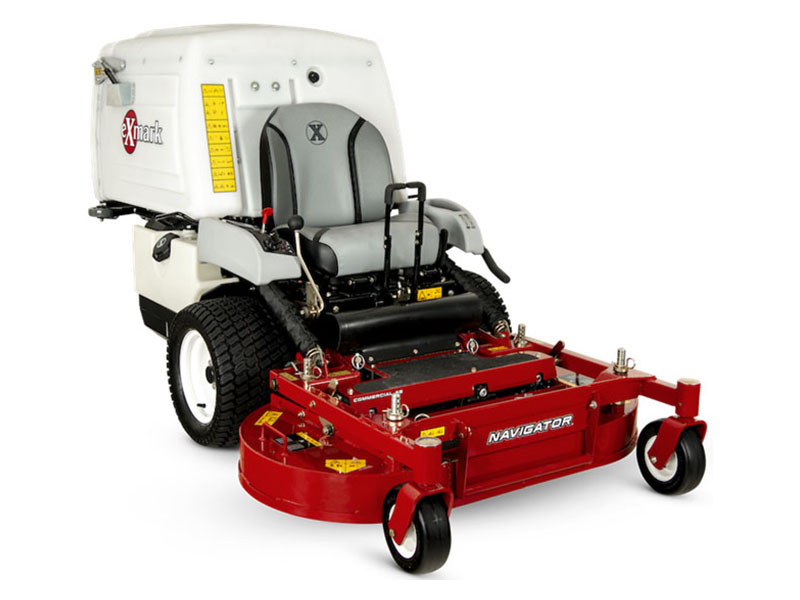

2024 Exmark Navigator 42 in. Kohler 25 hp

RedNew Lawn Mowers - Riding

MSRP

$21,089

2024 Exmark Navigator 42 in. Kohler 25 hp in Gaylord, Michigan - Photo 1
2024 Exmark Navigator 42 in. Kohler 25 hp in Gaylord, Michigan - Photo 2
2024 Exmark Navigator 42 in. Kohler 25 hp in Gaylord, Michigan - Photo 3
2024 Exmark Navigator 42 in. Kohler 25 hp in Gaylord, Michigan - Photo 4
2024 Exmark Navigator 42 in. Kohler 25 hp in Gaylord, Michigan - Photo 5
2024 Exmark Navigator 42 in. Kohler 25 hp in Gaylord, Michigan - Photo 6
2024 Exmark Navigator 42 in. Kohler 25 hp in Gaylord, Michigan - Photo 7
2024 Exmark Navigator 42 in. Kohler 25 hp in Gaylord, Michigan - Photo 8
2024 Exmark Navigator 42 in. Kohler 25 hp in Gaylord, Michigan - Photo 9
2024 Exmark Navigator 42 in. Kohler 25 hp in Gaylord, Michigan - Photo 10
2024 Exmark Navigator 42 in. Kohler 25 hp in Gaylord, Michigan - Photo 11
2024 Exmark Navigator 42 in. Kohler 25 hp in Gaylord, Michigan - Photo 12
2024 Exmark Navigator 42 in. Kohler 25 hp in Gaylord, Michigan - Photo 13
2024 Exmark Navigator 42 in. Kohler 25 hp in Gaylord, Michigan - Photo 14
2024 Exmark Navigator 42 in. Kohler 25 hp in Gaylord, Michigan - Photo 15
Previous
Next
2024 Exmark Navigator 42 in. Kohler 25 hp in Gaylord, Michigan - Photo 1
2024 Exmark Navigator 42 in. Kohler 25 hp in Gaylord, Michigan - Photo 2
2024 Exmark Navigator 42 in. Kohler 25 hp in Gaylord, Michigan - Photo 3
2024 Exmark Navigator 42 in. Kohler 25 hp in Gaylord, Michigan - Photo 4
2024 Exmark Navigator 42 in. Kohler 25 hp in Gaylord, Michigan - Photo 5
2024 Exmark Navigator 42 in. Kohler 25 hp in Gaylord, Michigan - Photo 6
2024 Exmark Navigator 42 in. Kohler 25 hp in Gaylord, Michigan - Photo 7
2024 Exmark Navigator 42 in. Kohler 25 hp in Gaylord, Michigan - Photo 8
2024 Exmark Navigator 42 in. Kohler 25 hp in Gaylord, Michigan - Photo 9
2024 Exmark Navigator 42 in. Kohler 25 hp in Gaylord, Michigan - Photo 10
2024 Exmark Navigator 42 in. Kohler 25 hp in Gaylord, Michigan - Photo 11
2024 Exmark Navigator 42 in. Kohler 25 hp in Gaylord, Michigan - Photo 12
2024 Exmark Navigator 42 in. Kohler 25 hp in Gaylord, Michigan - Photo 13
2024 Exmark Navigator 42 in. Kohler 25 hp in Gaylord, Michigan - Photo 14
2024 Exmark Navigator 42 in. Kohler 25 hp in Gaylord, Michigan - Photo 15
Previous
Next

Request More Information

By pressing SUBMIT, you agree that DX1, LLC and Otsego Outdoor Power may call/text you at the number provided, for either informational or marketing purposes, using an automatic telephone dialing system or pre-recorded/artificial voices. Msg/data rates may apply. You don’t need to consent as a condition of any purchase & you may revoke your consent at any time. You also agree to our Privacy Statement & Terms of Use.
Thanks to the Navigator's patented fill-reduction and larger-diameter blower, you get the perfectly mowed lawn in less time. This zero turn mower is perfect for any pro who wants even more control and responsiveness.
Request More Information Print Brochure
Calculate Payment
Compare Models

2024 Exmark Navigator 42 in. Kohler 25 hp

Condition
New
Category
Lawn Mowers - Riding
Model Type
Navigator
Model Code
NVS740GKC42000
Color
Red

Features

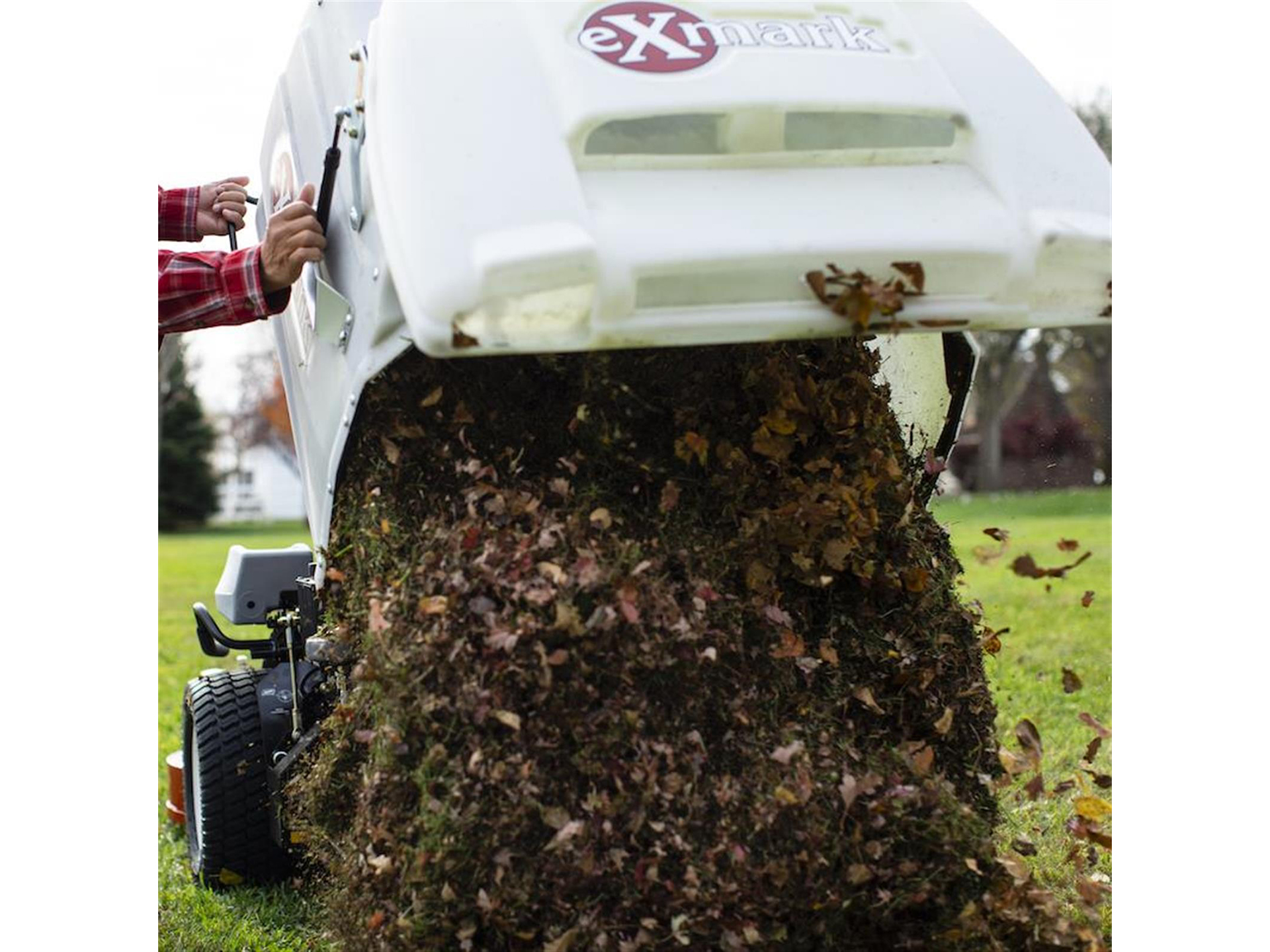

  • MORE CAPACITY, MORE PRODUCTIVITY: The optional powered dump attachment system means less time emptying and more time mowing. An exclusive baffle design fills, evenly back to front, for maximum efficiency on large lawns.
  • EASY TO MAINTAIN: Landscape professionals can spend more time mowing and less time maintaining their commercial mower.

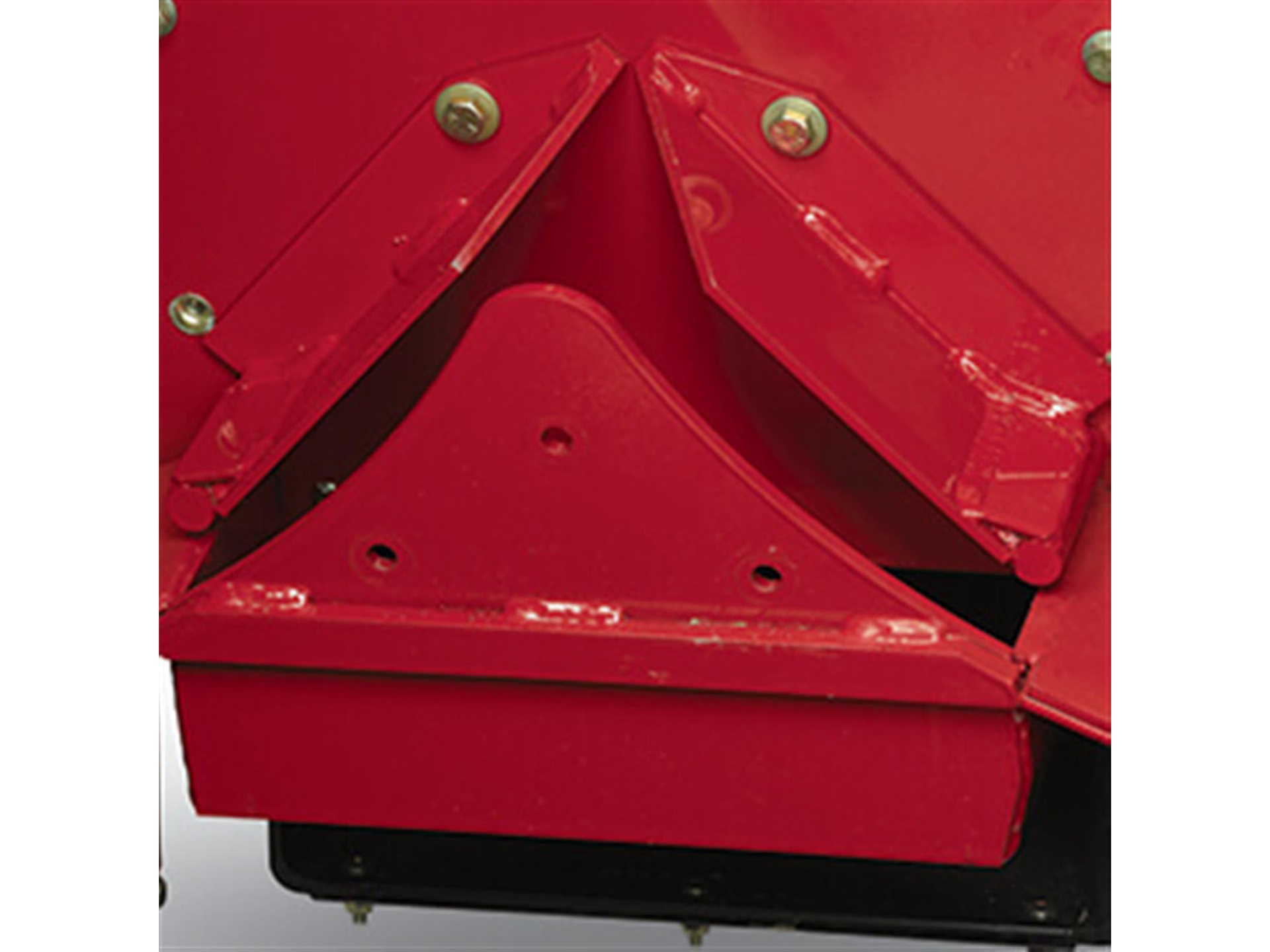

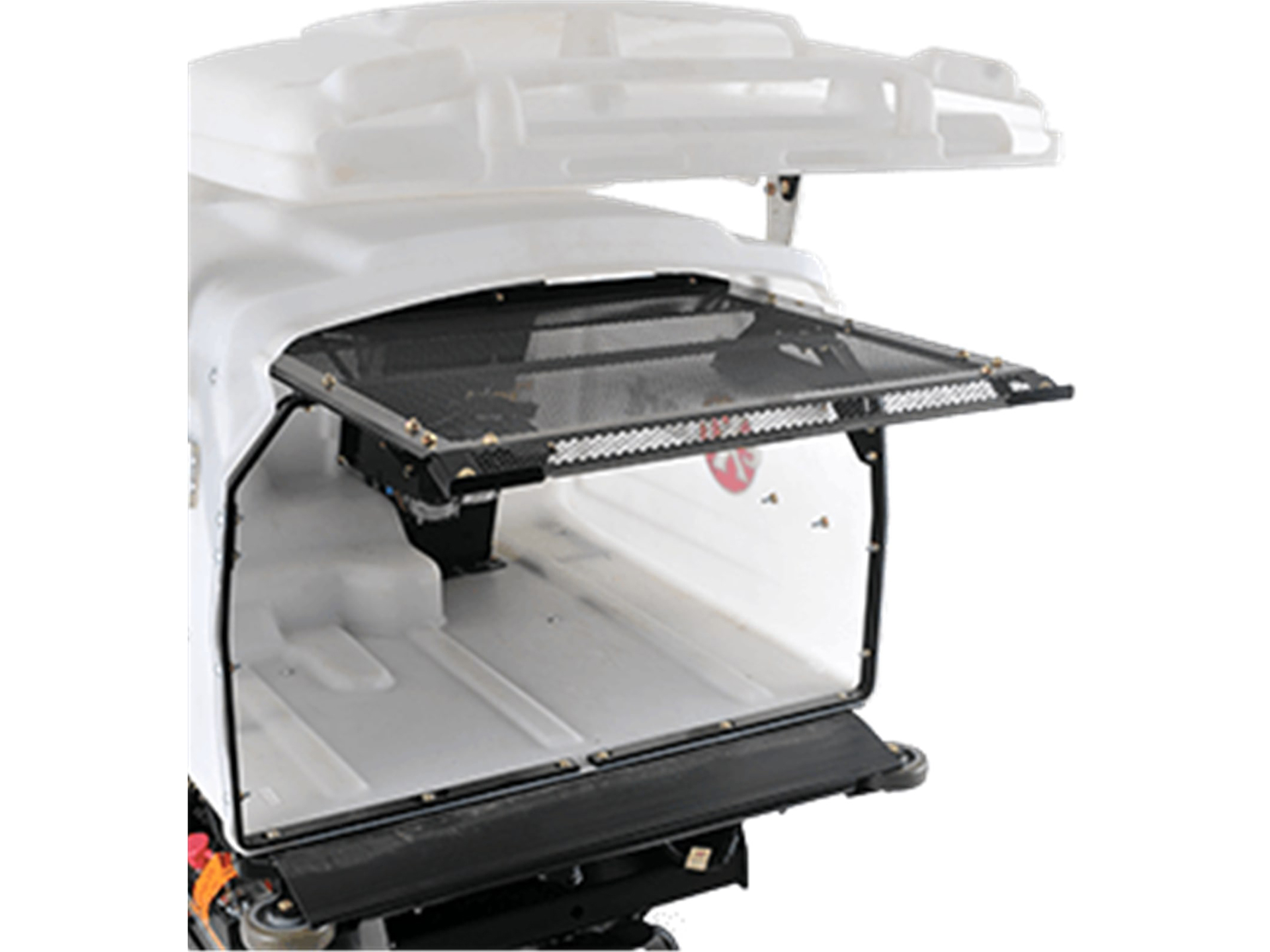

  • FILL REDUCTION: The Navigator’s patented fill-reduction system lets you bag 100%, bag 33% and mulch 67% or mulch 100%. All with its versatile cutting deck and baffle system.

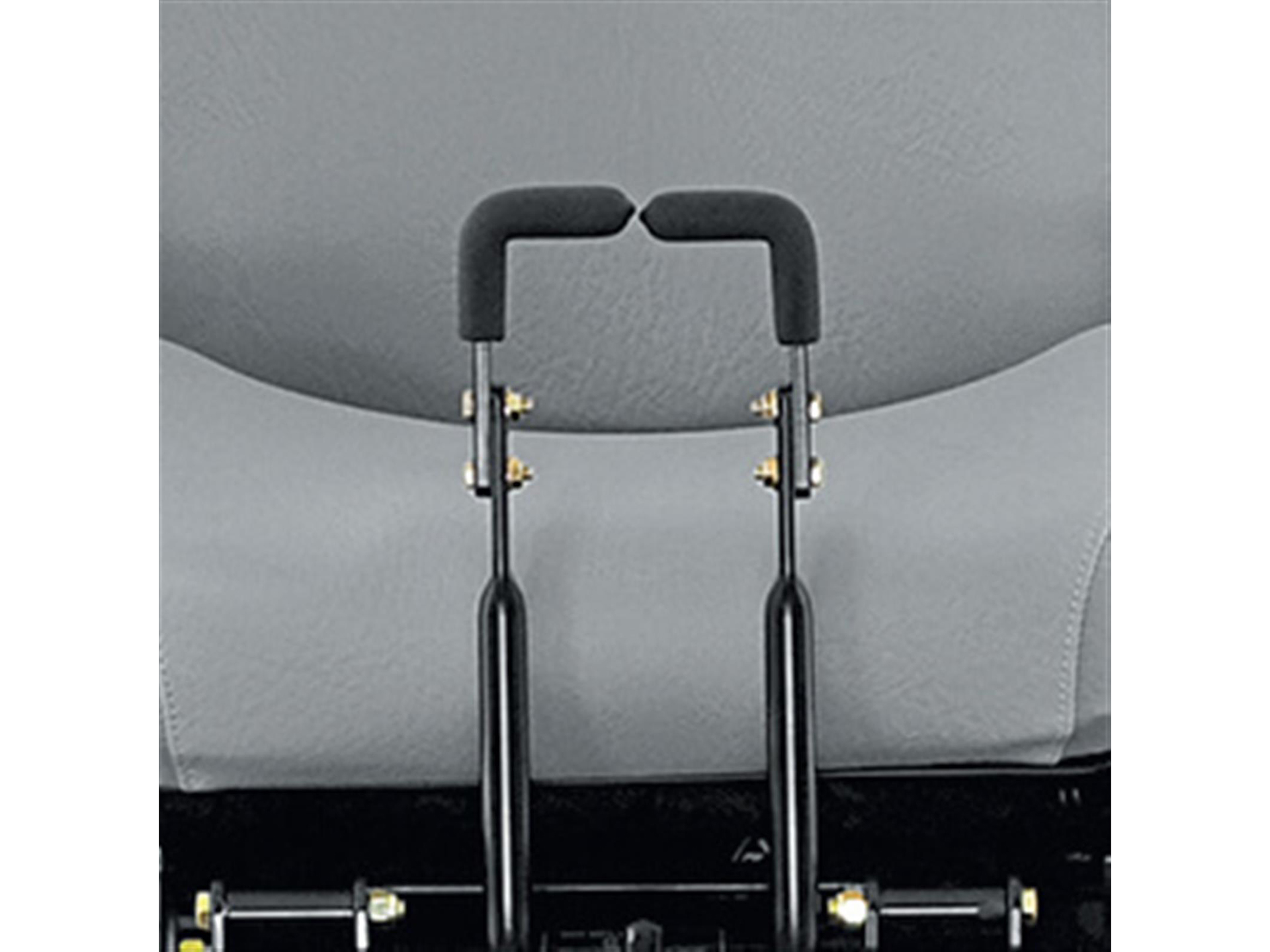

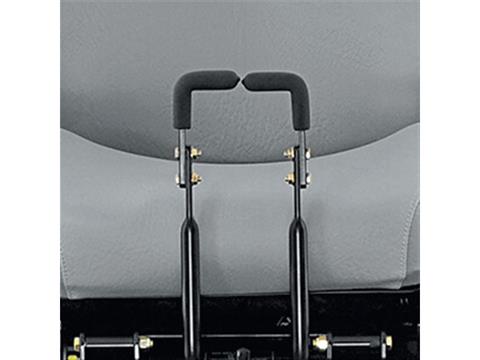

  • “FEATHERTOUCH” CONTROLS: As the name implies, you don’t have to muscle the Navigator around. Its FeatherTouch controls make maneuvering tight spots virtually effortless.
  • HEAVY DUTY GEAR BOX: Superior gear with spiral-bevel cut gears. Rated at 50hp for improved durability.
  • DECK DEPTH: 4 5/8 inch deep deck allows for improved productivity and durability.

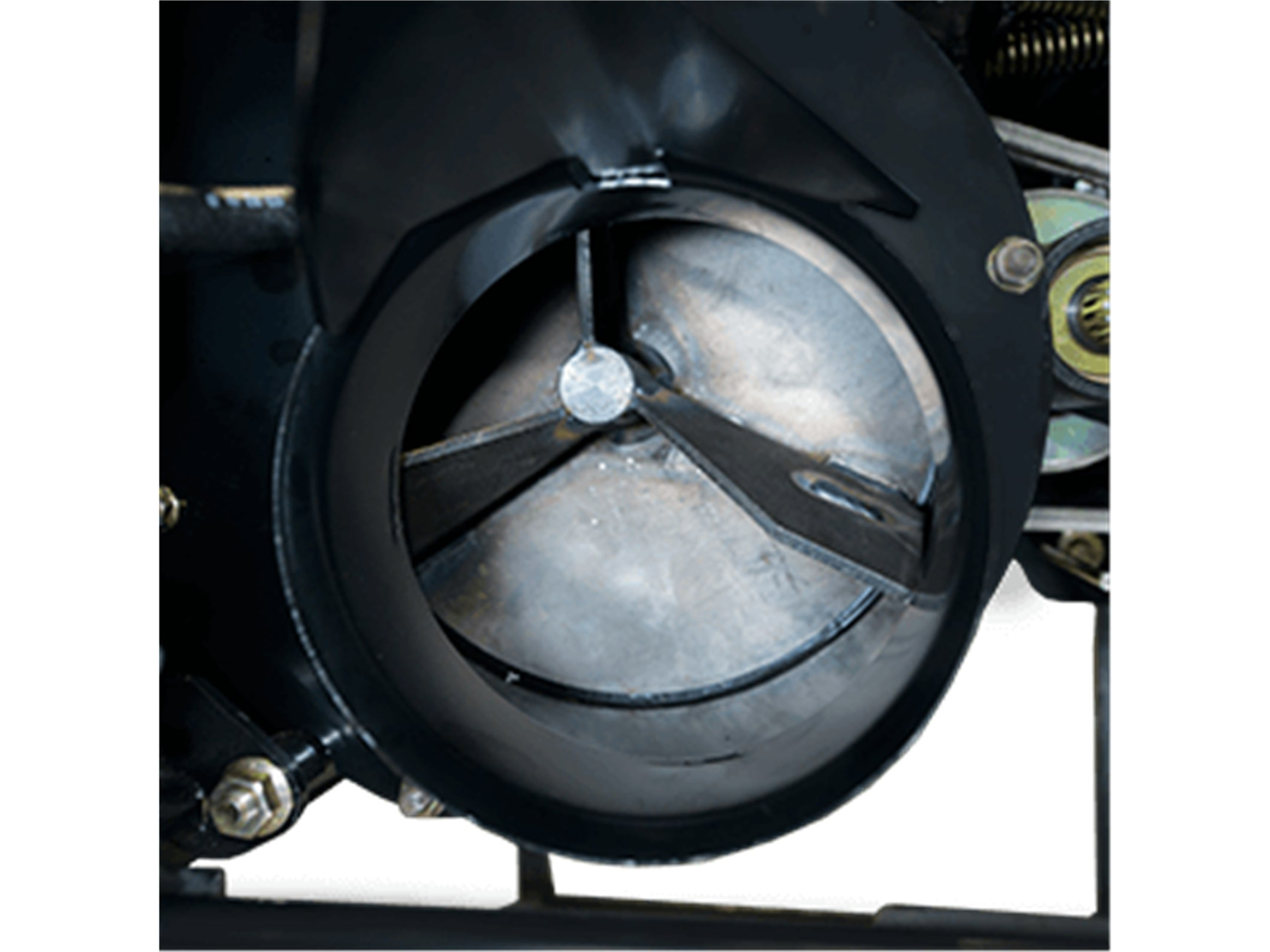

  • BLOWER SIZE: Larger diameter blower helps improve hopper fill and reduce plugging.

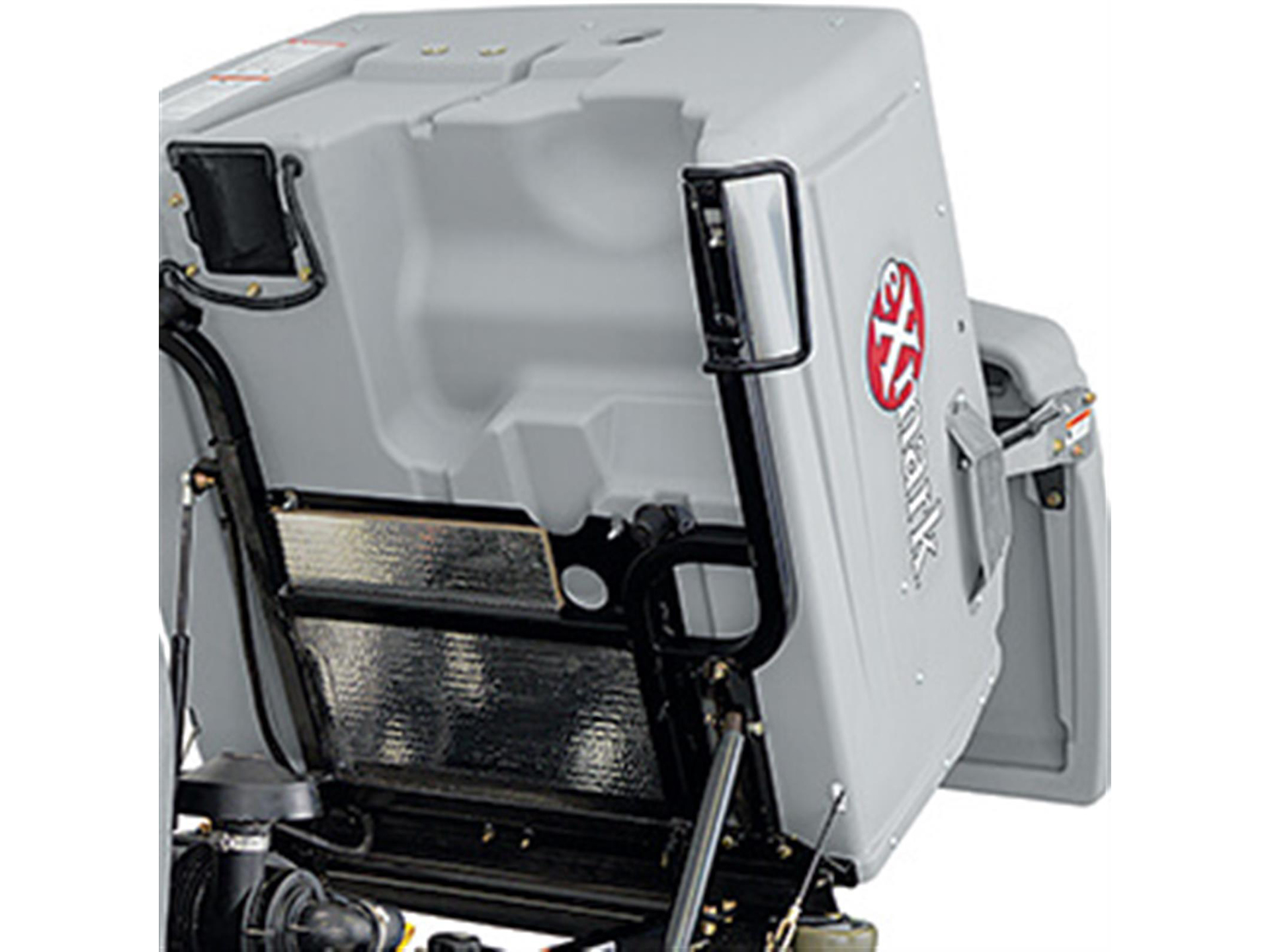

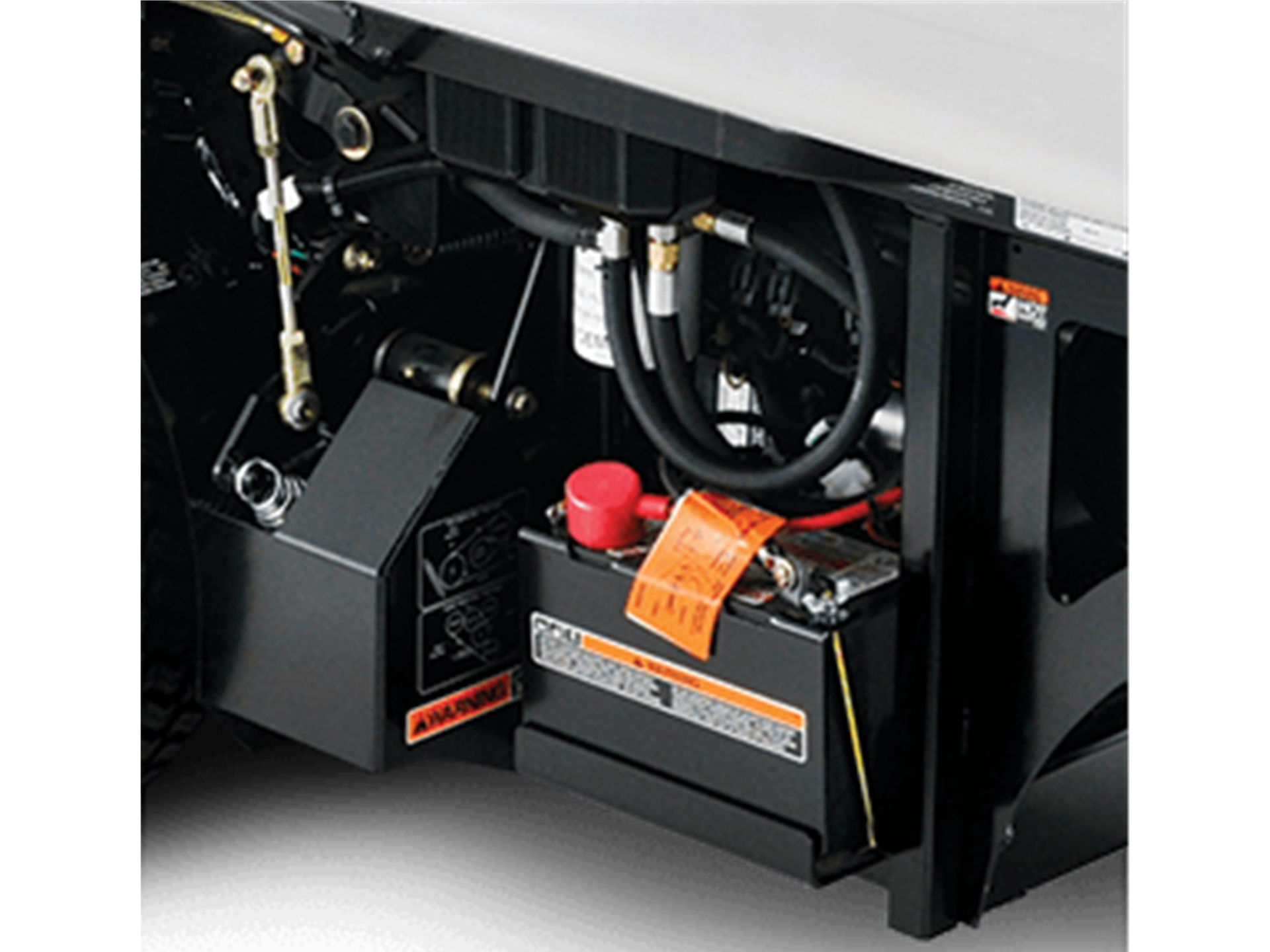

  • ENGINE ORIENTATION: Orientation of the engine draws air from the front of the machine over the belts, pumps and through the engine to the rear of the machine extending driveline component life. Fuel tank pivots out for easy servicing of the engine.

General Information

Manufacturer
Exmark
Model Year
2024
Model
Navigator 42 in. Kohler 25 hp
Model Code
NVS740GKC42000
Color
Red

Body

Frame
Tractor - Channeled and fully welded 1.5 x 1.5 x 0.187 in. wall tubing with a ground clearance of 4.0 in., strategically located, continuous force counterweight springs
Seat
Commercial grade high back contoured foam padded with hinged mounting
Rollover Protection (ROPS)
Optional 2-post foldable ROPS with seat belt and latch
Safety Features
Safety package - Operator Presence Controls (OPC) and drive system interlock

Drivetrain

Drive System
Hydro
Drive Type
Drive description - New Dual Hydro-Gear 12 cc variable displacement pumps power Hydro-Gear H Series motors
Number of Speeds
Infinitely variable speed selection
Travel Speed Forward
0 - 7.0 mph (11.3 km/h)
Travel Speed Reverse
0 - 4.5 mph (7.2 km/h)
Drive Tires

18 x 10.5-10 Multi-Trac® C/S

Drive wheel release - Allows movement without engine running

Steering Tires
Front caster tires - 8 x 3.0-4 semi-pneumatic
Parking Brake
Wet disc, internal in wheel motor

Electrical

Battery
12V with 15A alternator
Instrumentation
Fuel indicator - Translucent visual

Engine

Engine Make
Kohler
Engine Model
CH730, Command™ EFI
Horsepower
23 hp @ 3,600 rpm
Displacement
725 cc
Air Cleaner
Air filter - Heavy-duty canister air filtration
Fuel Type
Gas Carbureted
Fuel Capacity
7.5 gal. (28.4 l), pivoting tank for easier engine service

Measurements

Length
91.8 in. (233.2 cm)
Width
43.2 in. (109.7 cm)
Height
51.2 in. (130.0 cm)
Weight
Curb - 1,173 lb.
Mowing Width
42 in.
Mowing Height Range
1.0 - 4.0 in. (2.54 - 10.2 cm)
Mowing Height Adjustments
0.25 in. (0.64 cm) increments

Operational

Steering

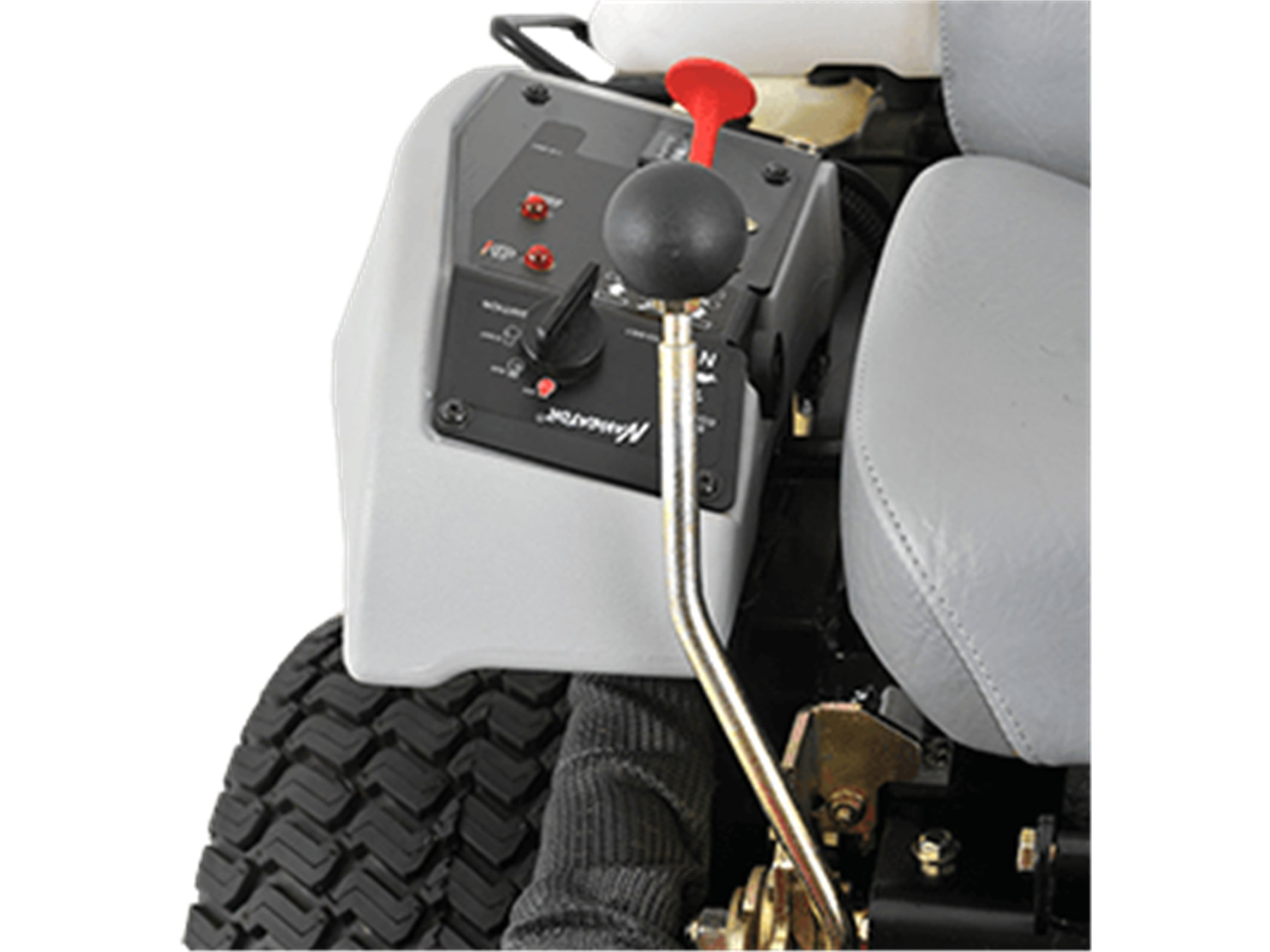

Control - FeatherTouch hand-control drive levers, low-force constant speed lever
Deck Construction

7 ga. sides joined by a continuous bead weld to a 10 ga. top, 3/16 in. wear guard is welded to the entire base of the deck, 7 ga. deck spindle supports, 0.25 in. thick strap steel deck supports

Deck style - Floating deck

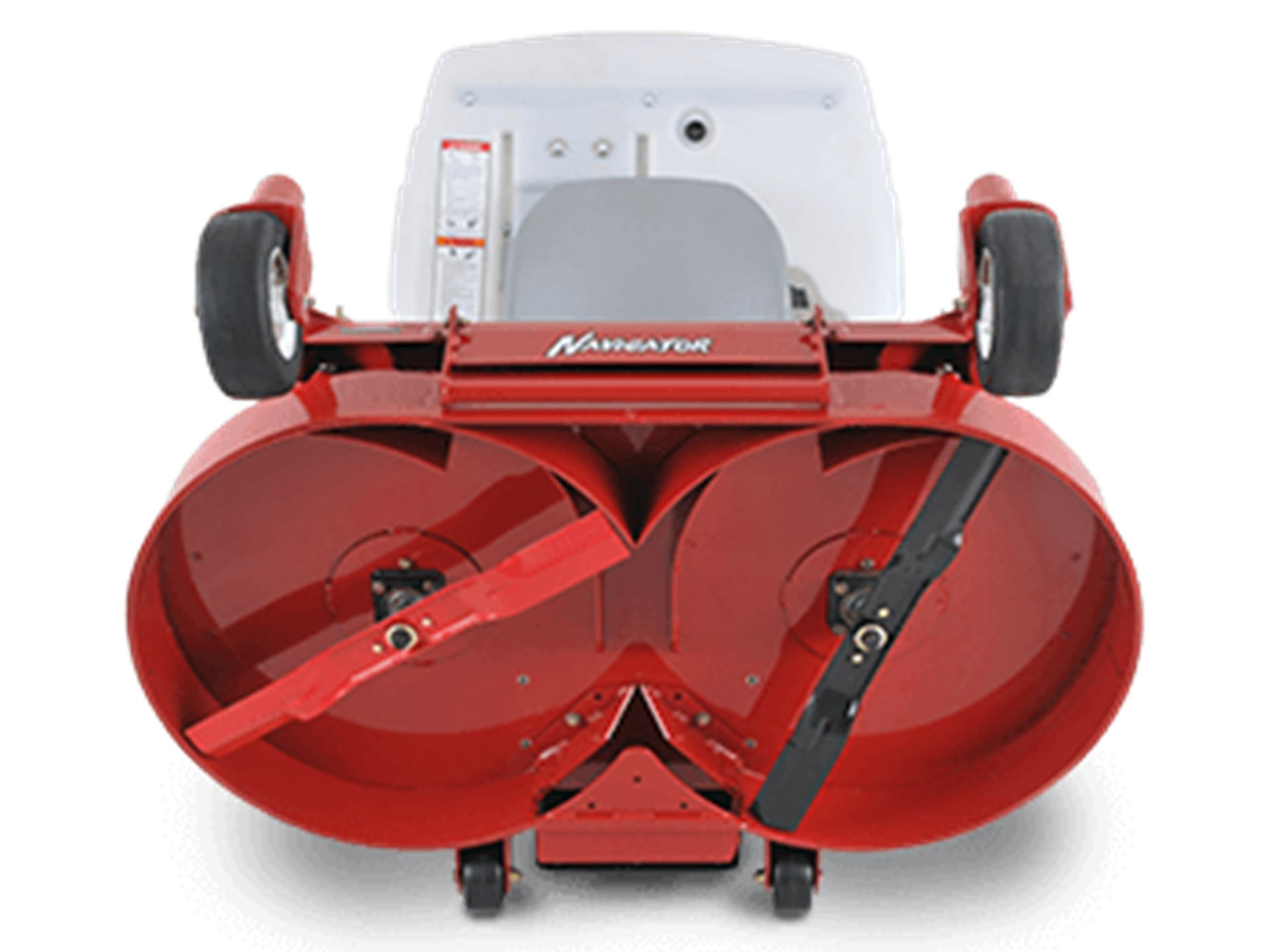

Deck style description - Full floating center discharge cutting deck for dedicated bagging with patented fill reduction baffles and heavy duty gear driven spindle assembly

Deck Lift
Deck latch for easier height of cut adjustment
Spindles
Blade - Heavy duty cast iron right-angle gearboxes
Blades
2 at 22 in. length
Blade Tip Speed
Approximately 18,500 fpm
Bagger
Capacity - 9.5 bu. (76 gal.)
Power Take-Off (PTO)
Engagement - Lever-actuated clutching belt with 6 in. brake band

Other

Warranty
Commercial - 2 years limited
