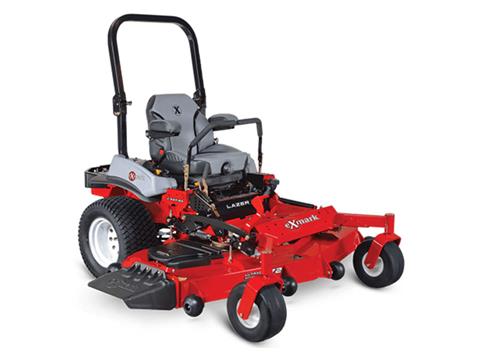

2025 Exmark Lazer Z X-Series 60 in. Kawasaki FX801V 25.5 hp (LZX801GKA606Q1)

RedNew Lawn Mowers - Riding

MSRP

$16,999

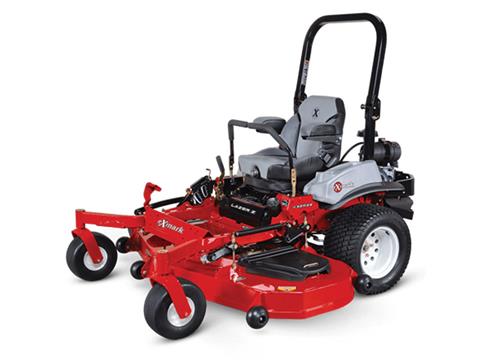

2025 Exmark Lazer Z X-Series 60 in. Kawasaki FX801V 25.5 hp (LZX801GKA606Q1) in Gaylord, Michigan - Photo 1
2025 Exmark Lazer Z X-Series 60 in. Kawasaki FX801V 25.5 hp (LZX801GKA606Q1) in Gaylord, Michigan - Photo 2
2025 Exmark Lazer Z X-Series 60 in. Kawasaki FX801V 25.5 hp (LZX801GKA606Q1) in Gaylord, Michigan - Photo 3
2025 Exmark Lazer Z X-Series 60 in. Kawasaki FX801V 25.5 hp (LZX801GKA606Q1) in Gaylord, Michigan - Photo 4
2025 Exmark Lazer Z X-Series 60 in. Kawasaki FX801V 25.5 hp (LZX801GKA606Q1) in Gaylord, Michigan - Photo 5
2025 Exmark Lazer Z X-Series 60 in. Kawasaki FX801V 25.5 hp (LZX801GKA606Q1) in Gaylord, Michigan - Photo 6
2025 Exmark Lazer Z X-Series 60 in. Kawasaki FX801V 25.5 hp (LZX801GKA606Q1) in Gaylord, Michigan - Photo 7
2025 Exmark Lazer Z X-Series 60 in. Kawasaki FX801V 25.5 hp (LZX801GKA606Q1) in Gaylord, Michigan - Photo 8
2025 Exmark Lazer Z X-Series 60 in. Kawasaki FX801V 25.5 hp (LZX801GKA606Q1) in Gaylord, Michigan - Photo 9
2025 Exmark Lazer Z X-Series 60 in. Kawasaki FX801V 25.5 hp (LZX801GKA606Q1) in Gaylord, Michigan - Photo 10
2025 Exmark Lazer Z X-Series 60 in. Kawasaki FX801V 25.5 hp (LZX801GKA606Q1) in Gaylord, Michigan - Photo 11
Previous
Next
2025 Exmark Lazer Z X-Series 60 in. Kawasaki FX801V 25.5 hp (LZX801GKA606Q1) in Gaylord, Michigan - Photo 1
2025 Exmark Lazer Z X-Series 60 in. Kawasaki FX801V 25.5 hp (LZX801GKA606Q1) in Gaylord, Michigan - Photo 2
2025 Exmark Lazer Z X-Series 60 in. Kawasaki FX801V 25.5 hp (LZX801GKA606Q1) in Gaylord, Michigan - Photo 3
2025 Exmark Lazer Z X-Series 60 in. Kawasaki FX801V 25.5 hp (LZX801GKA606Q1) in Gaylord, Michigan - Photo 4
2025 Exmark Lazer Z X-Series 60 in. Kawasaki FX801V 25.5 hp (LZX801GKA606Q1) in Gaylord, Michigan - Photo 5
2025 Exmark Lazer Z X-Series 60 in. Kawasaki FX801V 25.5 hp (LZX801GKA606Q1) in Gaylord, Michigan - Photo 6
2025 Exmark Lazer Z X-Series 60 in. Kawasaki FX801V 25.5 hp (LZX801GKA606Q1) in Gaylord, Michigan - Photo 7
2025 Exmark Lazer Z X-Series 60 in. Kawasaki FX801V 25.5 hp (LZX801GKA606Q1) in Gaylord, Michigan - Photo 8
2025 Exmark Lazer Z X-Series 60 in. Kawasaki FX801V 25.5 hp (LZX801GKA606Q1) in Gaylord, Michigan - Photo 9
2025 Exmark Lazer Z X-Series 60 in. Kawasaki FX801V 25.5 hp (LZX801GKA606Q1) in Gaylord, Michigan - Photo 10
2025 Exmark Lazer Z X-Series 60 in. Kawasaki FX801V 25.5 hp (LZX801GKA606Q1) in Gaylord, Michigan - Photo 11
Previous
Next

Request More Information

Captcha is required.
By pressing SUBMIT, you agree that DX1, LLC and Otsego Outdoor Power may call/text you at the number provided, for either informational or marketing purposes, using an automatic telephone dialing system or pre-recorded/artificial voices. Msg/data rates may apply. You don’t need to consent as a condition of any purchase & you may revoke your consent at any time. You also agree to our Privacy Statement & Terms of Use.

For more than 30 years, the Exmark Lazer Z has been the choice of more landscape professionals than any other zero-turn mower. For pros that demand the absolute best durability, productivity, cut quality and innovation, the Lazer Z X-Series is the number one choice. With more configuration options than any other Exmark mower, the Lazer Z X-Series is the pinnacle of state-of-the-art commercial mowers. Choose from 52-, 60-, or 72-inch UltraCut Series 6, or massive 96-inch UltraCut Rear Discharge cutting decks. Our exclusive flow control baffles and Adapt tools-free deck rake adjustment deliver Exmark Signature cut quality and higher cutting speeds in any mowing conditions. Powered by a choice of state-of-the-art big block EFI V-Twin commercial engines from Kawasaki, Kohler and Vanguard, the Lazer Z X-Series powers through the largest jobs with ease. A long-travel full suspension operator seat features isolation bumpers to deliver a smoother ride for reduced operator fatigue. When you’re looking for the pinnacle of power, performance, cut quality and durability in a commercial zero-turn mower, the Lazer Z X-Series is the obvious choice.
Request More Information Print Brochure
Calculate Payment
Compare Models

2025 Exmark Lazer Z X-Series 60 in. Kawasaki FX801V 25.5 hp (LZX801GKA606Q1)

Condition
New
Category
Lawn Mowers - Riding
Model Type
Lazer Z X-Series
Model Code
LZX801GKA606Q1
Color
Red

Features

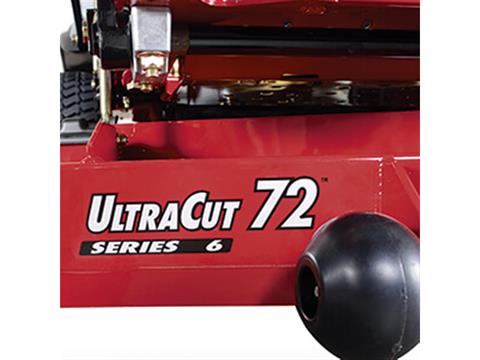

  • ULTRACUT SERIES 6 DECK: Our full-floating side-discharge deck design uses dual-capture anti-scalp rollers and double-row sealed bearings for ultimate durability, with splined blade drivers to stop bolt tightening from impacts. Plus, our patented idler arm bearing design needs only annual service. (The 96-inch Flex Wing deck is a rear-discharge design.)

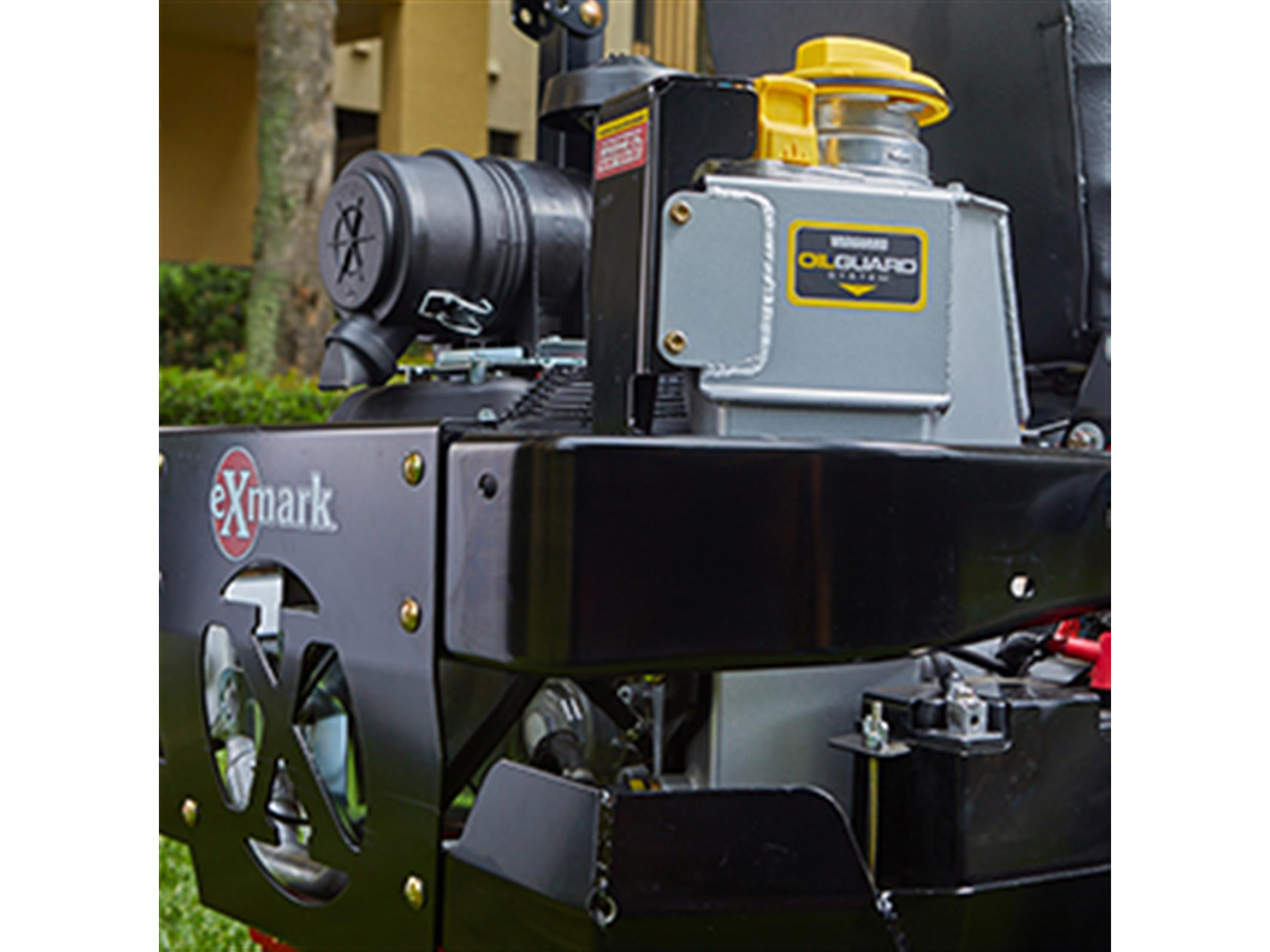

  • VANGUARD OIL GUARD SYSTEM: With oil change intervals of 500 hours, the Vanguard Oil Guard system increases mower uptime and decreases maintenance. Available on select Lazer Z X-Series models, the Oil Guard system also decreases engine oil temperature by 20-30 degrees.

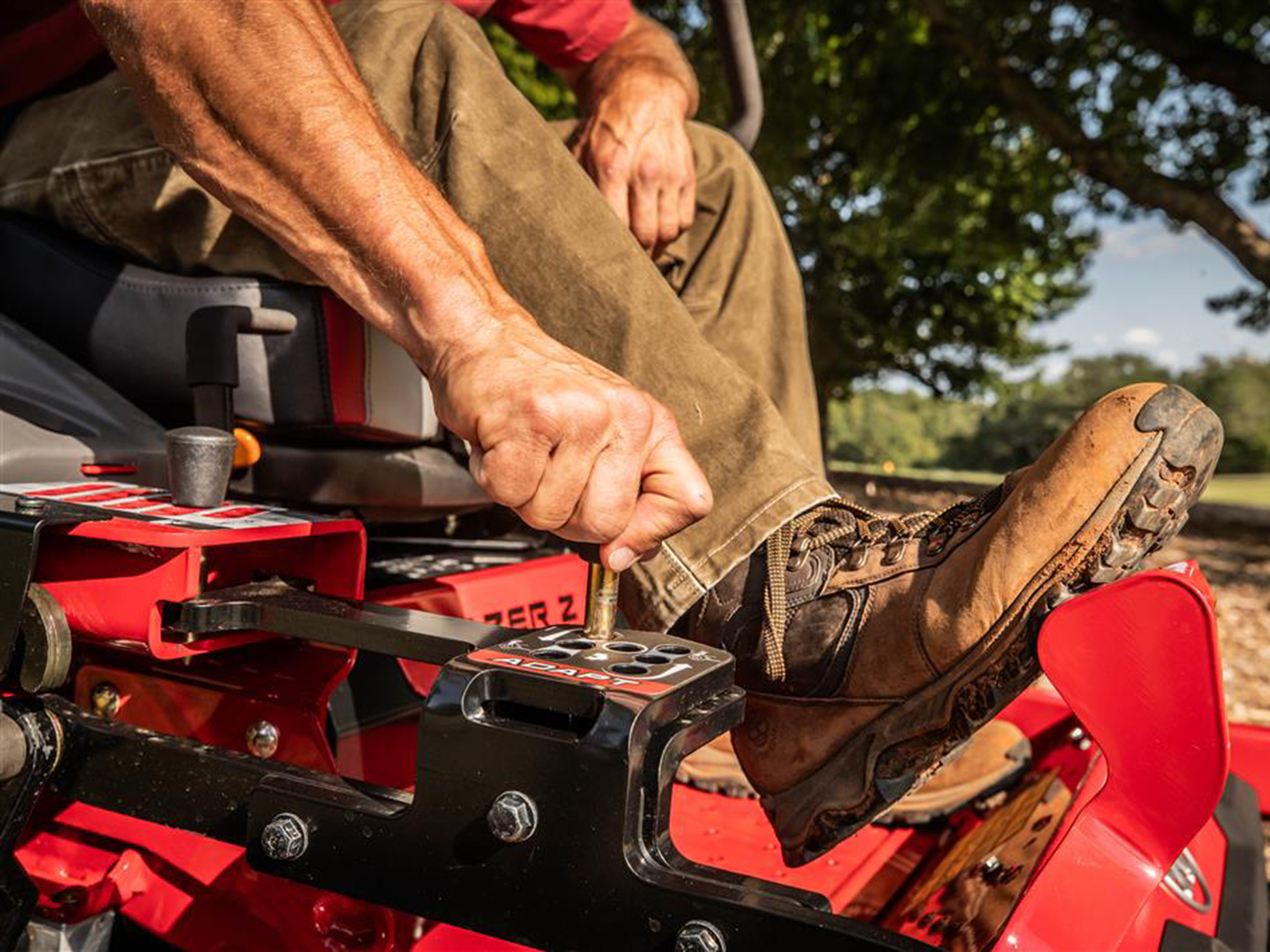

  • ADAPT YOUR CUT: Adjust deck rake quickly and easily without tools, from the operator seat, to optimize cut quality and performance in a variety of turf types and conditions. Adapt is particularly useful when mowing in wet, overgrown, or lush conditions, or stemmy grasses and weeds.

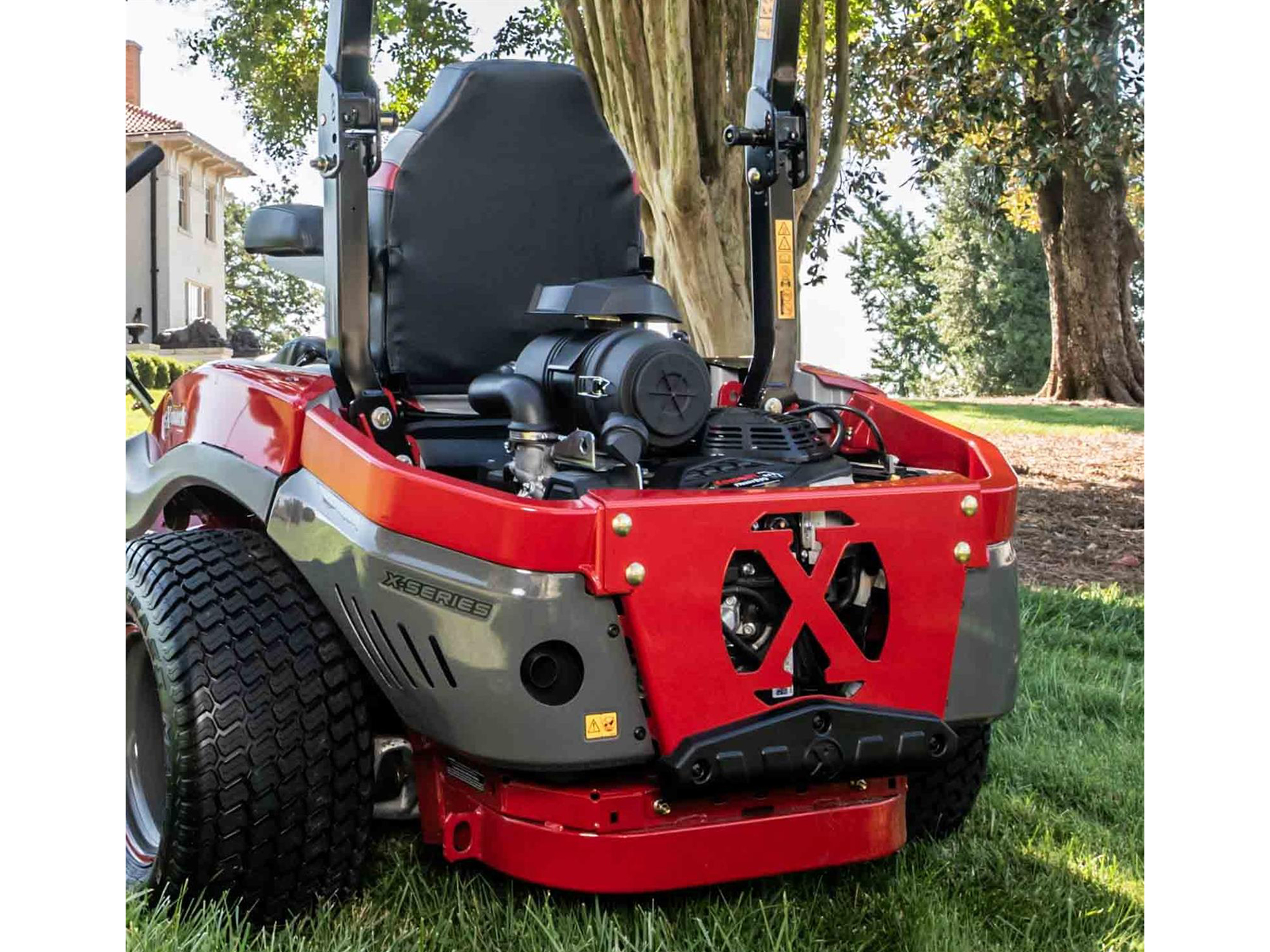

  • EASY TO SERVICE: The new Lazer Z X-Series is easier than ever to service, thanks to a rear engine guard that removes with just four bolts. Plus, a redesigned seat mount enables easier access to the engine and hydro drive components. Tools-free deck and hydro belt installation further eases maintenance.
  • MAXIMUM PRODUCTIVITY: With a combination of increased power, faster control response, larger cutting decks and a high-capacity hydro drive system, Lazer Z X-Series delivers maximum productivity.

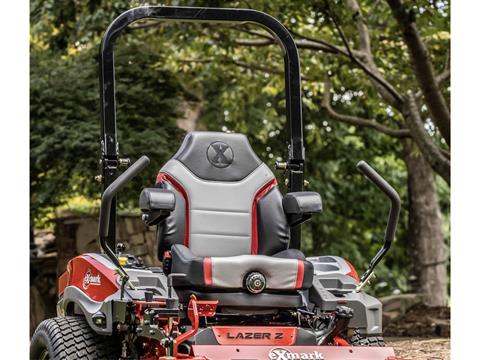

  • SUPERIOR OPERATOR COMFORT: Our new ergonomically-advanced operator seat features long-travel suspension and our exclusive iso-mount seat isolation. This seating system increases productivity by reducing operator fatigue, so each worker can work stronger, longer.

General Information

Manufacturer
Exmark
Model Year
2025
Model
Lazer Z X-Series 60 in. Kawasaki FX801V 25.5 hp (LZX801GKA606Q1)
Model Code
LZX801GKA606Q1
Color
Red

Body

Frame

Tractor - Unibody, welded, heavy-duty 1.5 x 3 in. tubular steel

Caster forks - 0.50 in. thick caster yoke arms

Seat
Deluxe, two-tone, bolstered suspension with elastomeric vibration control material. Mounted on innovative seat isolation system that provides operator isolation in all three planes of motion as well as fore-aft slide and seat flip-up.
Rollover Protection (ROPS)
2-post foldable standard with seat belt and latch
Safety Features
Safety package - Operator Presence Controls (OPC) and drive system interlock, with safety interlock system indicators

Drivetrain

Drive System
Hydro
Drive Type
Drive description - Two Exmark exclusive Parker unitized pump and wheel motor systems with no hoses, integrated cooling fans, shock valve, 1.7 qt. integrated reservoir, spin-on filter and heavy-duty components. 16 cc pumps and 17.1 ci motors
Transmission
Hydrostatic
Transmission Speed
Infinitely variable
Number of Speeds
Infinitely variable speed selection
Travel Speed Forward
0 - 11.5 mph (18.5 km/h)
Travel Speed Reverse
0 - 7.0 mph (11.3 km/h)
Drive Tires

24 x 12.0-12, 4-ply Turf Master®

Drive wheel release - Allows unit movement without engine running

Steering Tires
Front caster tires - 13 x 6.5-6 smooth tread, semi-pneumatic tires
Parking Brake
Lever-actuated disc brake

Electrical

Battery
12V with 15A alternator
Instrumentation
Fuel indicator - Electronic sender
Hour Meter
Engine

Engine

Engine Make
Kawasaki
Engine Model
FX801V, V-Twin Series
Horsepower
25.5 hp @ 3,750 rpm
Displacement
852 cc
Air Cleaner
Air filter - Heavy-duty canister air filtration system
Starter
Electric
Fuel Type
Gas carbureted
Fuel Capacity
12 gal. (45.4 l) single fuel tank with single fill location

Measurements

Length
83.1 in. (211.1 cm)
Width
72.8 in. (184.9 cm)
Height
70.5 in. (179.1 cm)
Weight
Curb - 1,209 lb.
Mowing Width
60 in.
Mowing Height Range
1.0 - 5.5 in. (2.5 - 11.8 cm) in 0.25 in. (0.64 cm) increments
Mowing Height Adjustments
Adjustable from operator’s seat

Operational

Steering
Control - Hydraulically dampened twin levers, adjust fore and aft. Adjustable dampeners (3 positions) to customize drive responsiveness. Also adjustable to 2 height positions.
Deck Construction

10 ga. top that is formed and continuously seam welded, 7 ga. side skirt and 7 ga. formed and welded spindle mounting locations for improved strength and reduced weight

Deck style - Floating deck

Deck style description - Full-floating UltraCut Series 6 with heavy-duty spindle

Deck Lift
Standard, foot-controlled deck lift changes cutting height and lifts the deck to maneuver around obstacles, or place in transport position
Discharge
Side standard with the option to bag or mulch
Spindles
Blade - No maintenance, sealed and non-greasable; 7.75 in. diameter cutter housing with 1.18 in. (30 mm) diameter spindle shaft and splined blade driver
Blades
3 at 20.50 in. length
Blade Tip Speed
Approximately 18,500 fpm
Power Take-Off (PTO)
Engagement - MagStop electromagnetic 200 ft. lb. clutch with spot brake

Other

Includes
Cup holder
