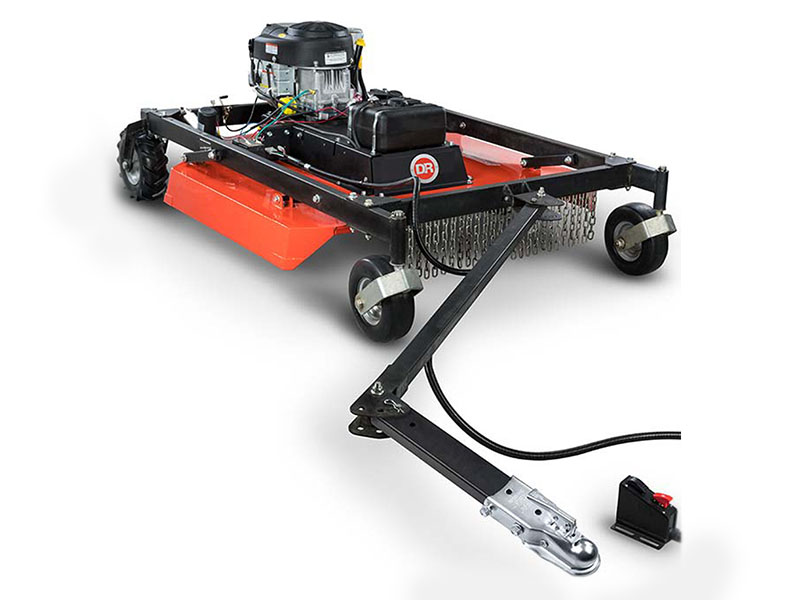

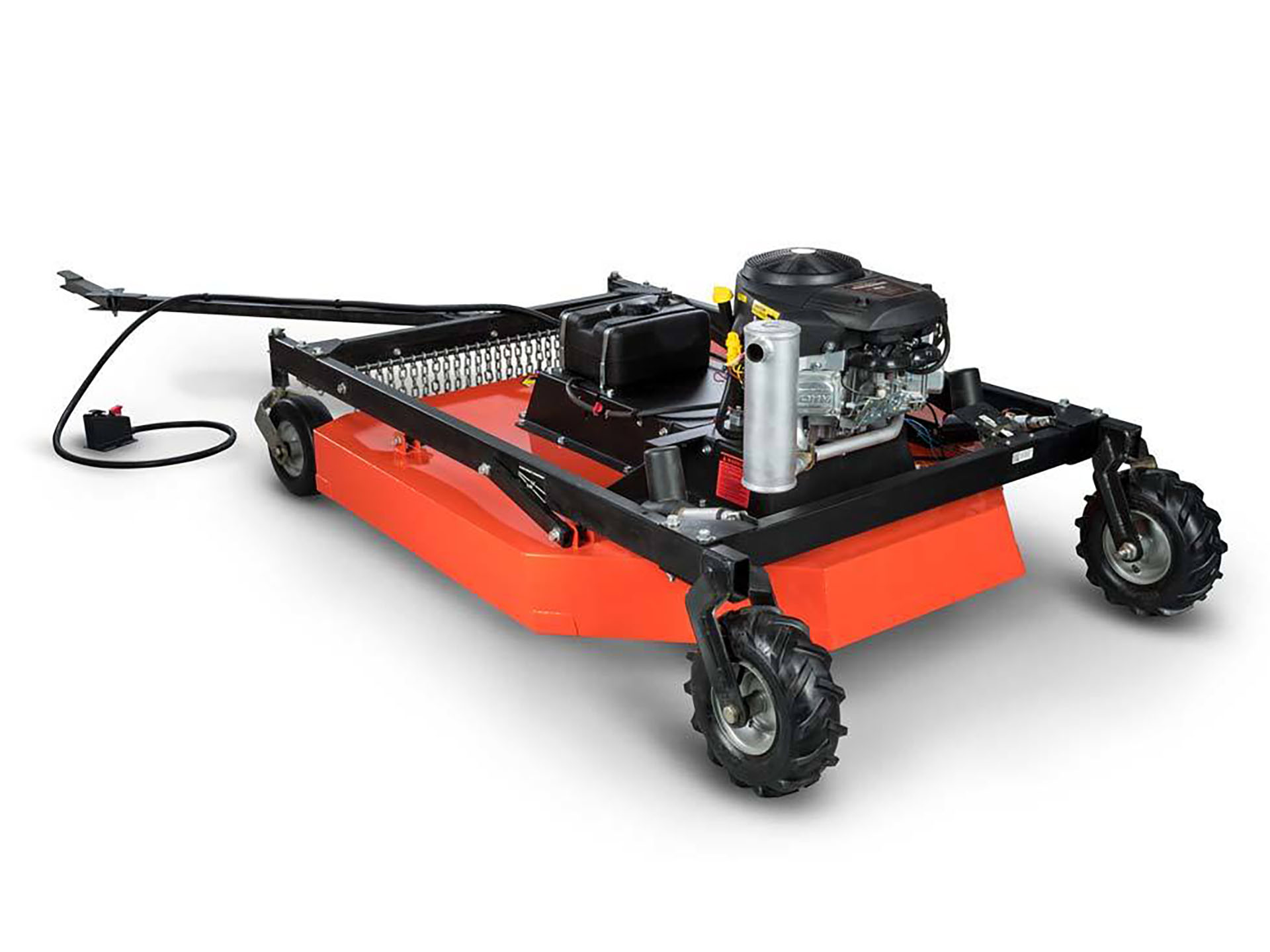

DR Power Equipment PRO MAX52T Briggs & Stratton 22 hp in Gaylord, Michigan - Photo 1

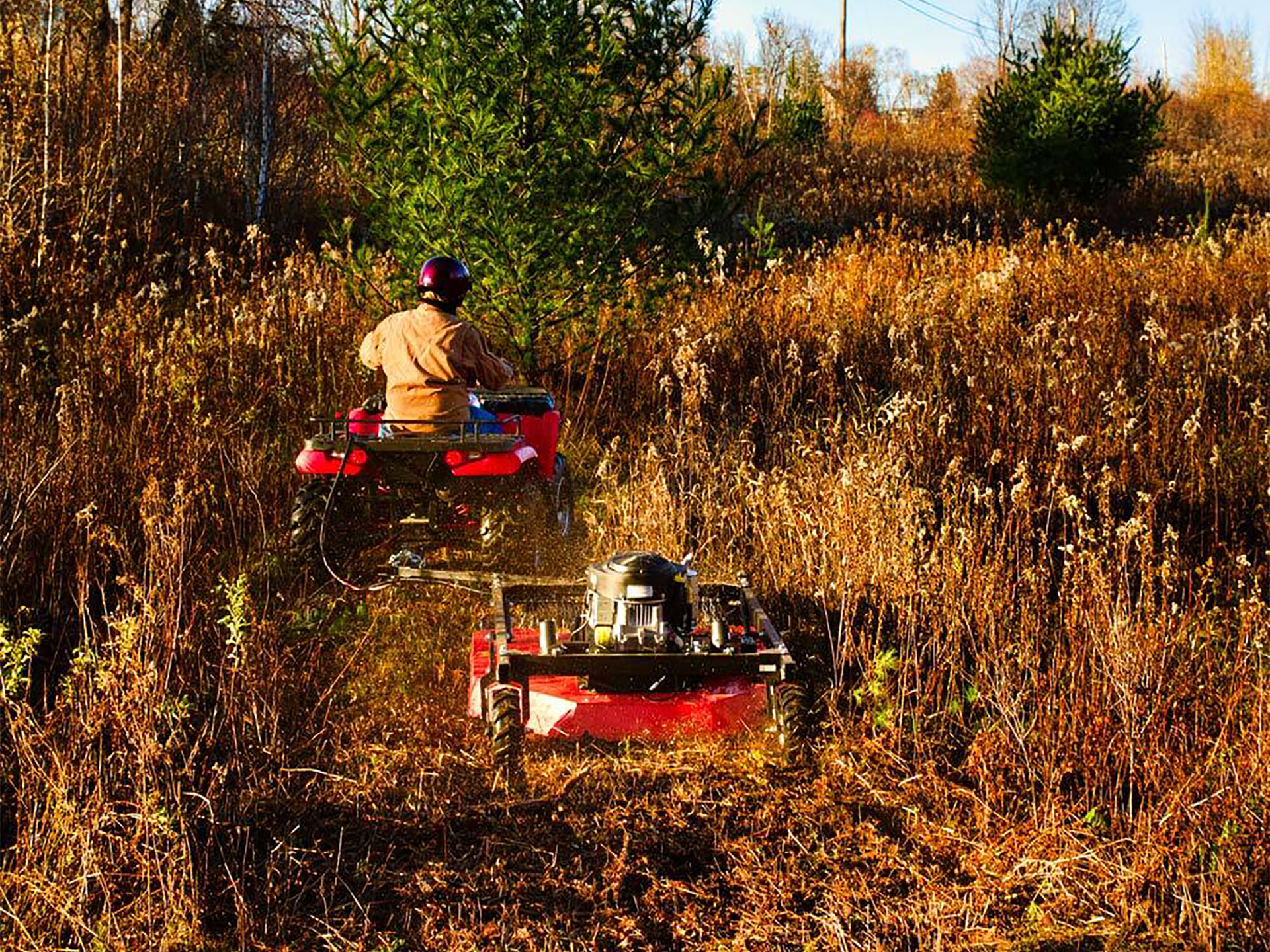

DR Power Equipment PRO MAX52T Briggs & Stratton 22 hp in Gaylord, Michigan - Photo 2

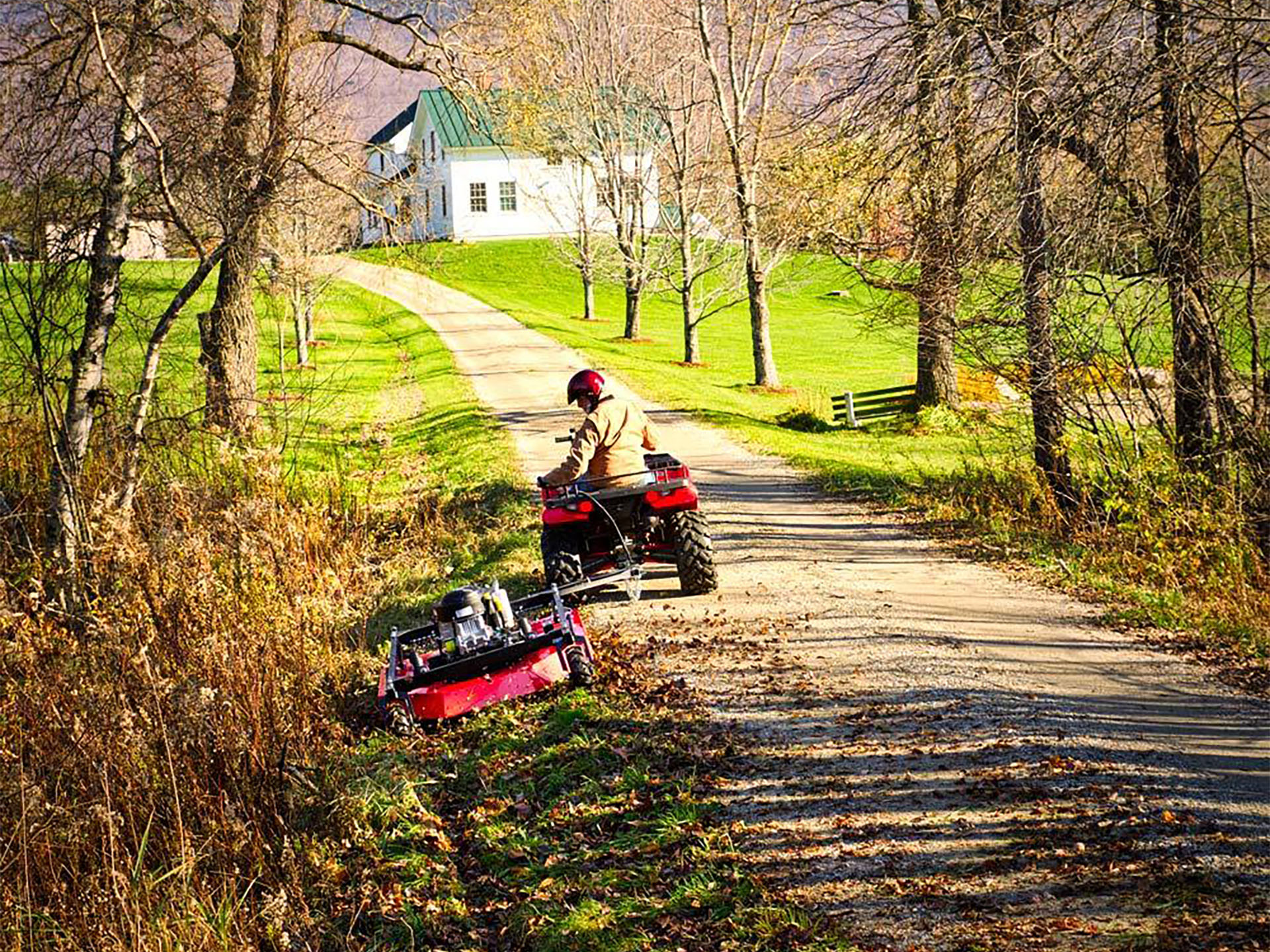

DR Power Equipment PRO MAX52T Briggs & Stratton 22 hp in Gaylord, Michigan - Photo 3

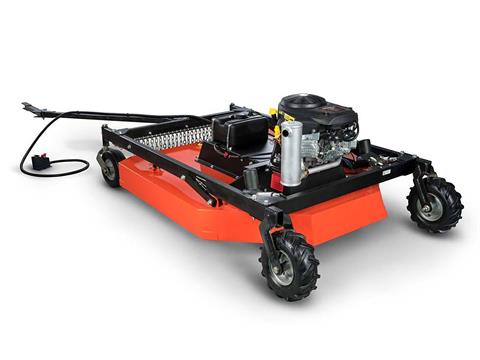

DR Power Equipment PRO MAX52T Briggs & Stratton 22 hp in Gaylord, Michigan - Photo 4

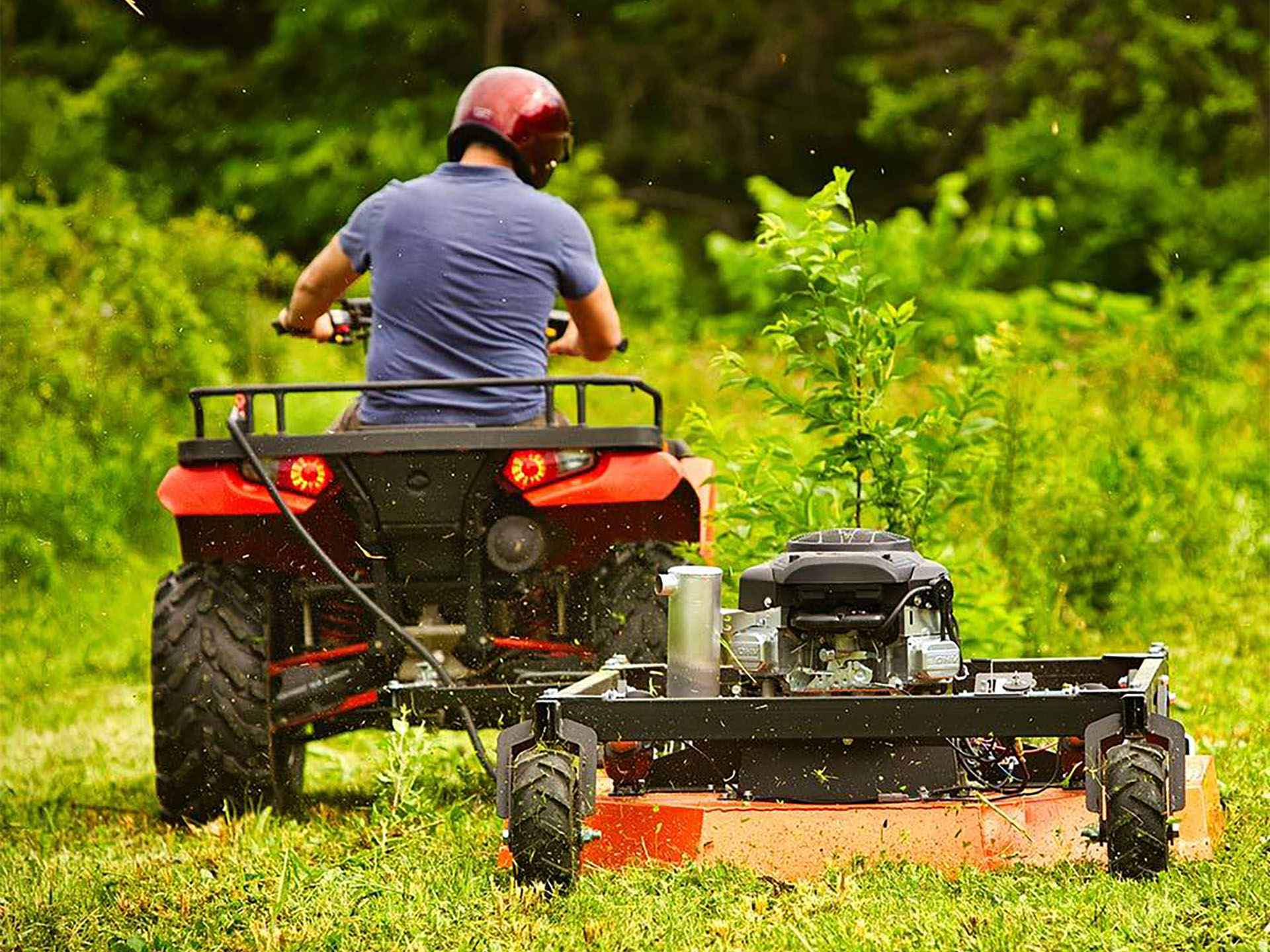

DR Power Equipment PRO MAX52T Briggs & Stratton 22 hp in Gaylord, Michigan - Photo 5

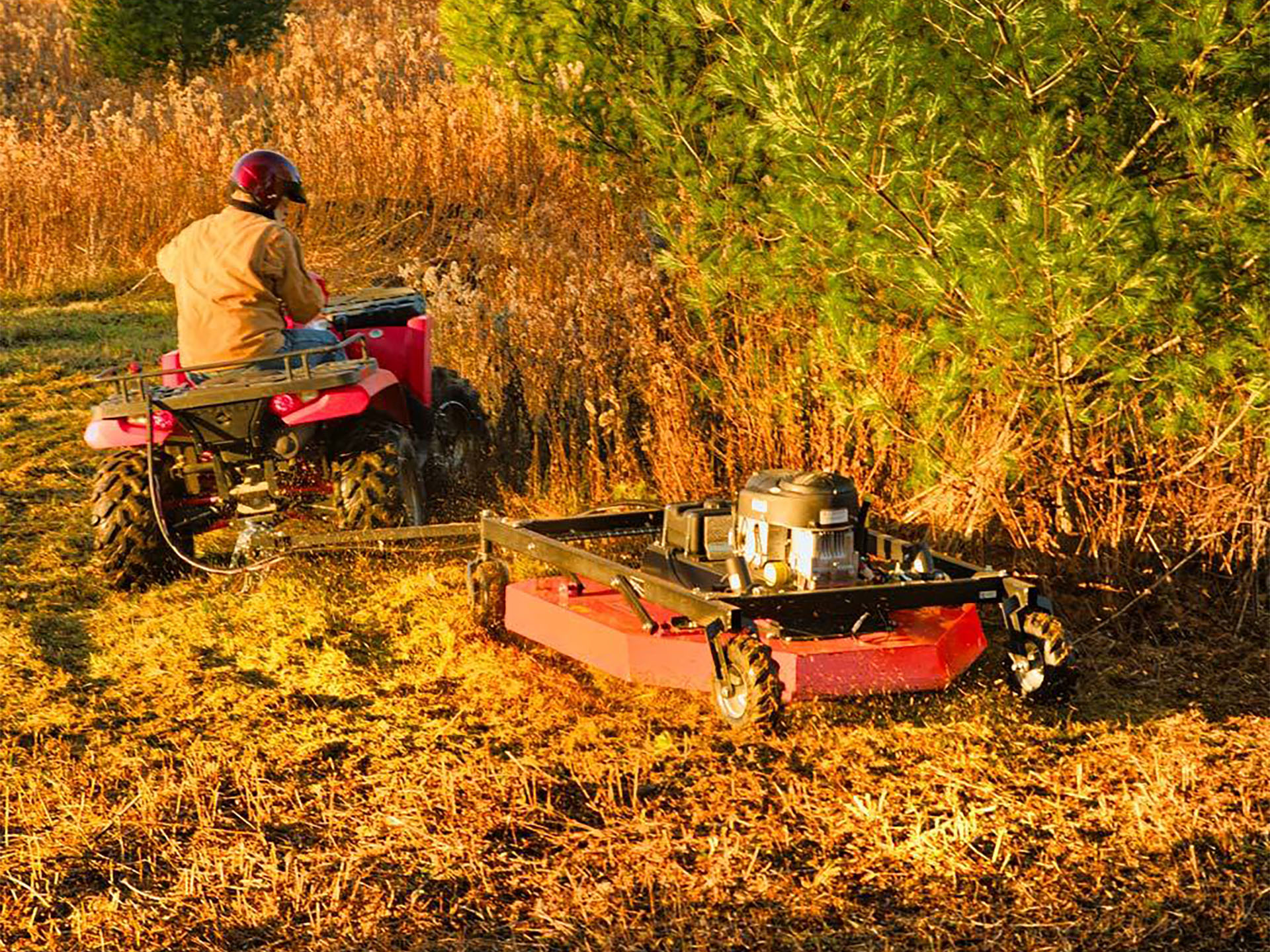

DR Power Equipment PRO MAX52T Briggs & Stratton 22 hp in Gaylord, Michigan - Photo 6

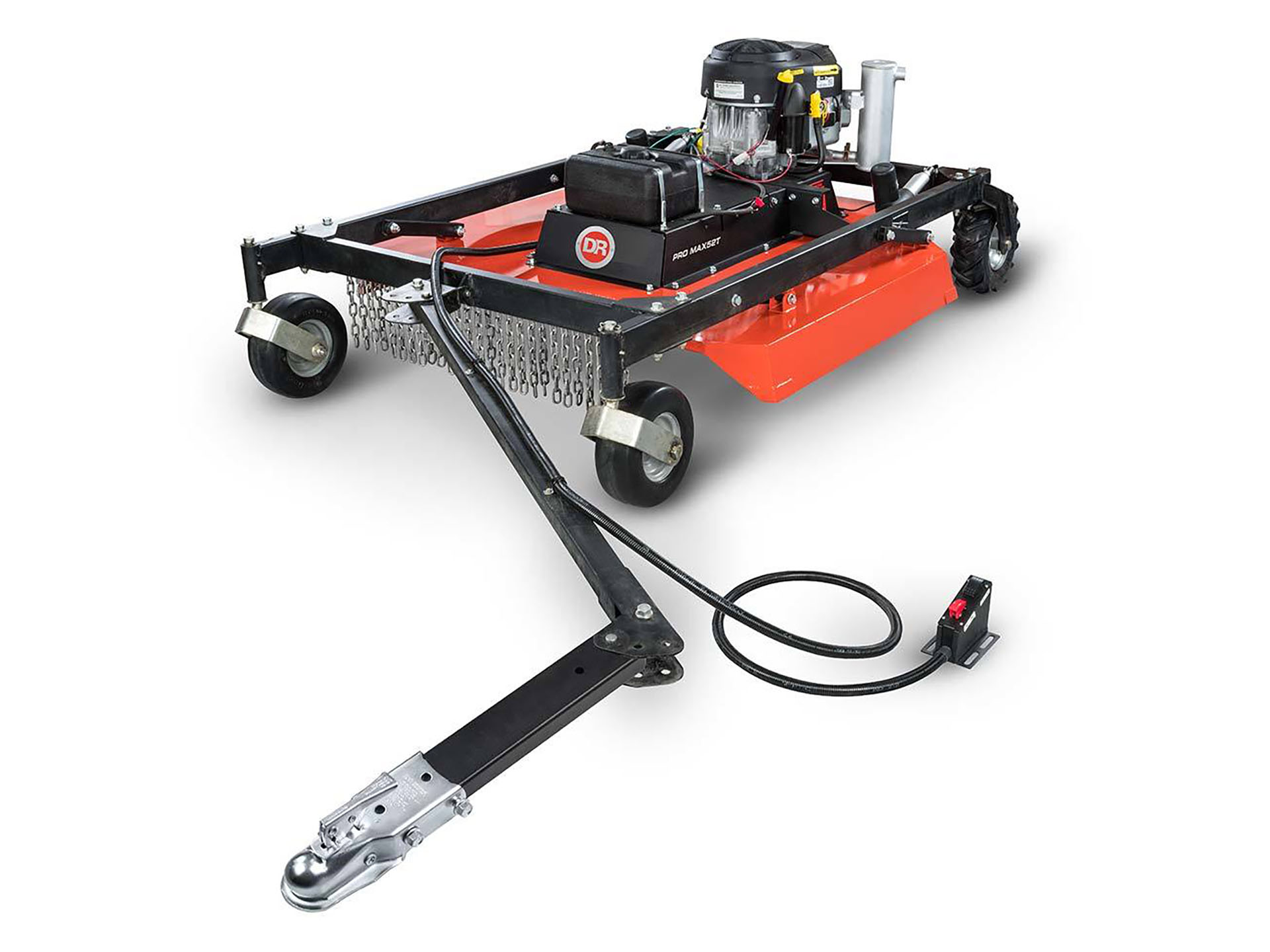

DR Power Equipment PRO MAX52T Briggs & Stratton 22 hp in Gaylord, Michigan - Photo 7
DR Power Equipment PRO MAX52T Briggs & Stratton 22 hp in Gaylord, Michigan - Photo 8
Previous
Next

Request More Information

By pressing SUBMIT, you agree that DX1, LLC and Otsego Outdoor Power may call/text you at the number provided, for either informational or marketing purposes, using an automatic telephone dialing system or pre-recorded/artificial voices. Msg/data rates may apply. You don’t need to consent as a condition of any purchase & you may revoke your consent at any time. You also agree to our Privacy Statement & Terms of Use.
Top-of-the-Line!
Our top-of-the-line Tow-Behind, the PRO MAX52T, cuts 52" wide. Its powerful 22 HP V-Twin engine lets you mow up to 2.4 acres per hour and reclaim overgrown property in record time. Take down the thickest growth and make cutting height adjustments on the fly by remote control!
Request More Information Print Brochure
Calculate Payment
Compare Models

DR Power Equipment PRO MAX52T Briggs & Stratton 22 hp

Condition
New
Category
Lawn Mowers
Model Type
Tow-Behind
Model Code
TB27052BEN
Color
Orange

Features

  • 22 HP BRIGGS & STRATTON PXI SERIES ENGINE: The legendary power, performance and durability of Briggs & Stratton® engines make them the obvious choice for our Tow-Behind Field and Brush Mowers. The PRO MAX52T model uses a durable, V-Twin, 22HP (724cc) Overhead Valve PXi Series engine with cast-iron cylinder sleeve and full pressure oil pump
  • FLOATING DECK: The deck is suspended from the frame, allowing it to ride up and over high points, minimizing scalping and protecting the drivetrain from damage.
  • ASSEMBLED IN THE USA: Assembled in the USA using foreign and domestic parts. Ships direct from our Wisconsin factory.
  • ELECTRIC LIFT HEIGHT ADJUSTMENT: Make easy adjustments to the cutting height (from 4" to 7.5") from your tow vehicle. A battery powered actuator does the work, allowing you to change mowing heights on the fly, without stopping.

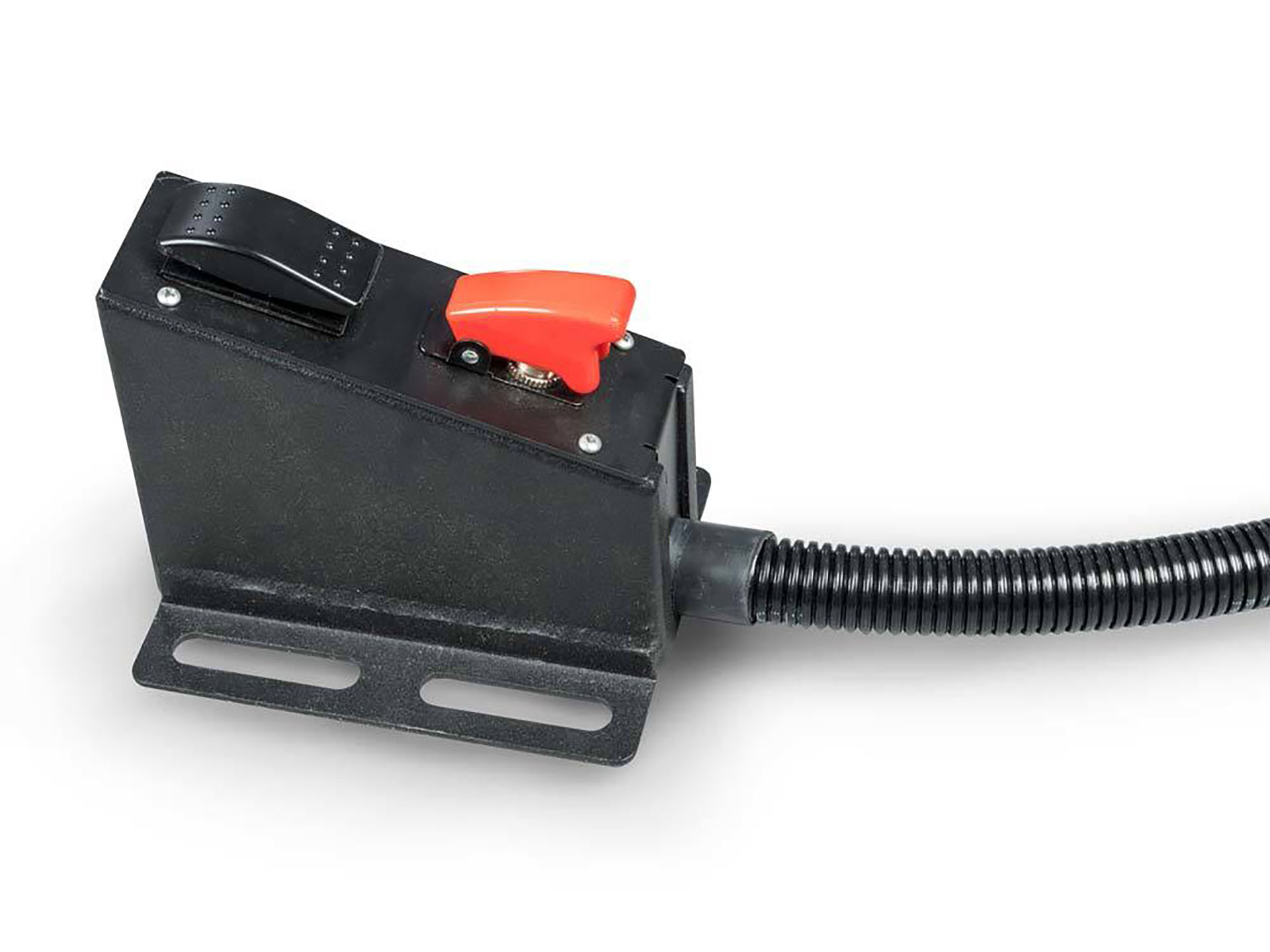

  • REMOTE CONTROL: The cabled remote control can be routed to your tow vehicle, and it handles two different functions: 1) engaging the blade and 2) raising or lowering the cutting height.
  • CHAIN DEBRIS GUARD: Similar to the debris shields used on commercial roadside mowers, this guard stops material from flying forward.
  • MOWS OUTSIDE WHEELBASE: The mowing blade extends outside of the wheels—so you can mow right up next to fences, walls, hedgerows and other obstacles without interference.
  • 52" MULCHING DECK: The 52" mowing deck is enclosed on 3 sides, so cut material is chopped and re-chopped, leaving no windrows behind.
  • OUTRIGGER TOW BAR: The 2-piece tow bar allows for offsetting the mowing deck to the left or right…or you can mow right behind your tow vehicle.
  • MOW UP TO 2.4 ACRES PER HOUR!: Mowing times will vary with conditions (density of growth and features of terrain), but hooked up to your ATV the PRO MAX52T Brush Mower can clear as much 2.4 acres per hour—while you ride in comfort!

General Information

Manufacturer
DR Power Equipment
Model
PRO MAX52T Briggs & Stratton 22 hp
Model Code
TB27052BEN
Color
Orange

Drivetrain

Transmission/Drive
Clutch - Electric
Wheels/Tires

Number of Tires - 4

Front Tire - 11 x 4-5 in.

Rear Tire - 13 x 5-6 in.

Front Tread - Never flat

Rear Tread - Tubed

Engine

Engine Make
Briggs & Stratton
Engine Model
PXi Series
Engine Type
Briggs & Stratton V-Twin OHV
Cylinders
2 (cast iron sleeved)
Horsepower
22 hp
Fuel System
Fuel shutoff valve
Air Cleaner
Filter - Dual element
Starter
Electric
Lubrication

Pressurized

Oil filter

Oil Type - 30W HD

Fuel Capacity
2.5 gal. with fuel pump and fuel filter

Measurements

Wheelbase
Mows outside
Length

156 in. with tow bar extended

Shipping - 91 in.

Width

53.2 in.

Shipping - 59 in.

Height

32.5 in.

Shipping - 40 in.

Weight

566 lb.

Shipping - 663 lb.

Mowing Height Range
4 - 7.5 in.
Mowing Width
52 in.

Operational

Blades

Number - 2

Pivoting

Remote control for blade engagement and cutting height adjustment

Mulching
Everything
Working Area Capacity

Mows up to 2.4 acres per hour

Cutting Capacity - 6 ft. high grass, 8 ft. high weeds and brush, 3 in. thick saplings

Other

Includes

Pre Cleaner

Type - Tow-Behind

Tow Vehicles - ATV, UTV, or Tractor

Floating deck rides over obstacles

Warranty

Engine - 2 years residential, 1 year commercial

Machine - 2 years residential, 90 days commercial
