2024 Exmark Lazer Z E-Series 48 in. Kawasaki FX651V 20.5 hp
2024 Exmark Lazer Z E-Series 48 in. Kawasaki FX651V 20.5 hp

General Information

Manufacturer
Exmark
Exmark
Model Year
2024
2024
Model
Lazer Z E-Series 48 in. Kawasaki FX651V 20.5 hp
Lazer Z E-Series 48 in. Kawasaki FX651V 20.5 hp
Model Code
LZE651CKA484A2
LZE651CKA484A2
Color
Red
Red

Body

Frame

Tractor - Unibody, welded, heavy-duty 1.5 x 3 in. tubular steel

Caster Forks - 0.50 in. thick caster yoke arms

Tractor - Unibody, welded, heavy-duty 1.5 x 3 in. tubular steel

Caster Forks - 0.50 in. thick caster yoke arms

Seat
Deluxe, bolstered suspension seat with elastomeric vibration control material
Deluxe, bolstered suspension seat with elastomeric vibration control material
Seat Adjustment
Fore and aft from operators’ position
Fore and aft from operators’ position
Rollover Protection (ROPS)
2-post foldable ROPS standard with seat belt and latch
2-post foldable ROPS standard with seat belt and latch
Safety Features
Safety package - Operator Presence Controls (OPC) and drive system interlock, with safety interlock system indicators
Safety package - Operator Presence Controls (OPC) and drive system interlock, with safety interlock system indicators

Drivetrain

Drive System
Hydro
Hydro
Drive Type
Drive description - Two Exmark exclusive Parker unitized pump and wheel motor systems with no hoses, 1.7 qt. integrated reservoir, spin-on filter and heavy-duty components. 12 cc pumps and 14. 5 cu. in. motors
Drive description - Two Exmark exclusive Parker unitized pump and wheel motor systems with no hoses, 1.7 qt. integrated reservoir, spin-on filter and heavy-duty components. 12 cc pumps and 14. 5 cu. in. motors
Number of Speeds
Infinitely variable speed selection
Infinitely variable speed selection
Travel Speed Forward
0 - 8.0 mph (12.9 kmph)
0 - 8.0 mph (12.9 kmph)
Travel Speed Reverse
0 - 5.0 mph (8.1 kmph)
0 - 5.0 mph (8.1 kmph)
Drive Tires

23 x 9.50-12, 4 ply Super Turf®

Drive wheel release - Allows unit movement without engine running

23 x 9.50-12, 4 ply Super Turf®

Drive wheel release - Allows unit movement without engine running

Steering Tires

Front caster tires - 13 x 5.0-6, smooth-tread, semi-pneumatic

Front caster tires - 13 x 5.0-6, smooth-tread, semi-pneumatic

Parking Brake
Lever-actuated disc brake
Lever-actuated disc brake

Electrical

Battery
12 V with 15 A alternator
12 V with 15 A alternator
Instrumentation
Fuel indicator - Electronic sender
Fuel indicator - Electronic sender
Hour Meter
Engine
Engine

Engine

Engine Make
Kawasaki®
Kawasaki®
Engine Model
FX651V, V-Twin Series
FX651V, V-Twin Series
Gross Horsepower
20.5 hp @ 3,750 rpm engine speed
20.5 hp @ 3,750 rpm engine speed
Displacement
726 cc
726 cc
Air Cleaner
Air filter - Heavy-duty canister air filtration system
Air filter - Heavy-duty canister air filtration system
Fuel Type
Gas carbureted
Gas carbureted
Fuel Capacity
8 gal. (30.3 l) single fuel tank with single fill location
8 gal. (30.3 l) single fuel tank with single fill location

Measurements

Length
79.2 in. (201.2 cm)
79.2 in. (201.2 cm)
Width
59.6 in. (151.4 cm)
59.6 in. (151.4 cm)
Height
70.5 in. (179.1 cm)
70.5 in. (179.1 cm)
Weight
Curb - 1,118 lb.
Curb - 1,118 lb.
Mowing Width
48 in.
48 in.
Mowing Height Range
1.0 - 5.5 in. (2.5 - 11.8 cm) in 0.25 in. (0.64 cm) increments
1.0 - 5.5 in. (2.5 - 11.8 cm) in 0.25 in. (0.64 cm) increments
Mowing Height Adjustments
Adjustable from operator’s seat
Adjustable from operator’s seat

Operational

Steering
Control - Hydraulically dampened twin levers, adjust fore and aft. Adjustable dampeners (3 positions) to customize drive responsiveness. Also adjustable to 2 height positions.
Control - Hydraulically dampened twin levers, adjust fore and aft. Adjustable dampeners (3 positions) to customize drive responsiveness. Also adjustable to 2 height positions.
Deck Construction

10 ga. top that is formed and continuously seam welded, 7 ga. side skirt and 7 ga. reinforced spindle mounting locations for improved strength and reduced weight

Deck style - Floating deck

Deck style description - Full-floating UltraCut Series 4

10 ga. top that is formed and continuously seam welded, 7 ga. side skirt and 7 ga. reinforced spindle mounting locations for improved strength and reduced weight

Deck style - Floating deck

Deck style description - Full-floating UltraCut Series 4

Deck Lift
Standard; foot-controlled deck lift changes cutting height and lifts the deck to maneuver around obstacles, or place in transport position
Standard; foot-controlled deck lift changes cutting height and lifts the deck to maneuver around obstacles, or place in transport position
Discharge

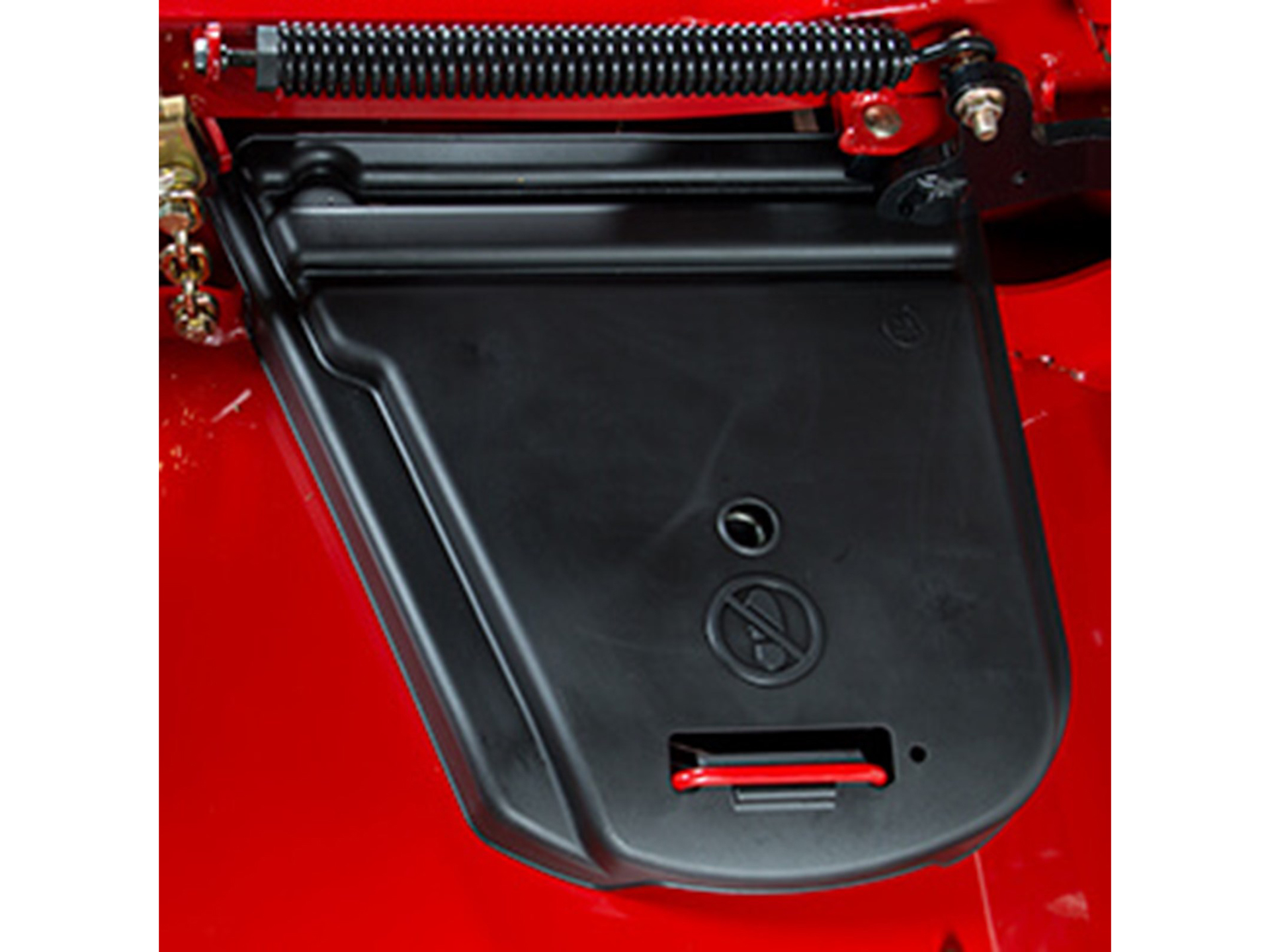

Side discharge standard, with molded discharge chute and option to bag or mulch
Side discharge standard, with molded discharge chute and option to bag or mulch
Spindles
Blade - No maintenance, sealed and non-greasable spindles; 7.75 in. diameter cutter housing with 25 mm (0.98 in.) diameter spindle shaft and splined blade driver
Blade - No maintenance, sealed and non-greasable spindles; 7.75 in. diameter cutter housing with 25 mm (0.98 in.) diameter spindle shaft and splined blade driver
Blades
3 at 16.25 in. length
3 at 16.25 in. length
Blade Tip Speed
Approximately 18,500 fpm
Approximately 18,500 fpm
Power Take-Off (PTO)
Engagement - MagStop Electromagnetic 175 ft. lb. clutch with spot brake
Engagement - MagStop Electromagnetic 175 ft. lb. clutch with spot brake

Other

Includes
Cup holder
Cup holder
Warranty
Commercial / Consumer - 5 year limited or 1,250-hour (with no hour limit the first 2 years)
Commercial / Consumer - 5 year limited or 1,250-hour (with no hour limit the first 2 years)

Features

  • HYDRO DRIVE, SIMPLIFIED: Our hydro drive system has no hoses to leak and just one easy-to-change belt. Only simple, annual maintenance is required. It also lowers the center of gravity for improved handling.
  • UNIBODY FRAME: Our one-piece body frame is a classic case of “less is more.” Because, fewer parts equal more strength. And, more durability. So, in the interest of accuracy, the Lazer Z’s unibody frame is actually a case of “less is way more.”
  • LESS TIME AT THE PUMP: Gas-powered E-Series models have a single 8-gallon tank with one fill location.
  • ON-BOARD DIAGNOSTICS: Check vital functions at a glance on the digital screen. An electronic fuel gauge with low fuel warning on all Lazer Z units, battery voltage warning, hour meter and OPC safety switch monitoring make troubleshooting easy.
  • FEWER GREASE POINTS: With just four grease points that only need annual greasing, the Lazer Z delivers maximum performance with minimum maintenance. Greaseless spindles and only four grease points on the entire machine.

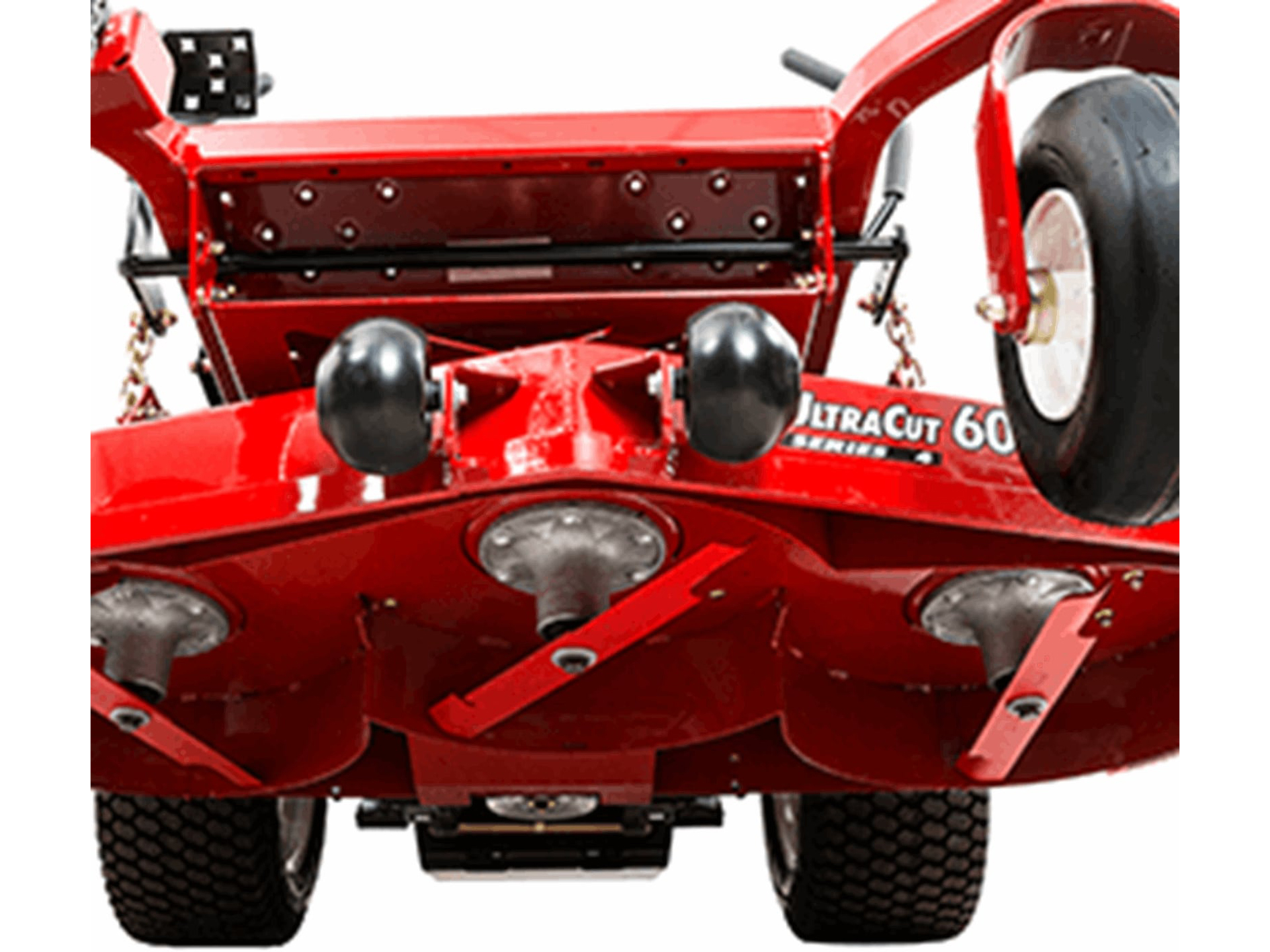

  • ULTRACUT SERIES 4 DECK: This full-floating deck uses maintenance free spindle with a splined blade driver to stop bolt tightening on impacts. And, our patented bearing design on idler arm pivots only needs annual service.
  • TOOL-LESS BELT REMOVAL: Deck and hydro belt can be installed without using any tools.

Features

  • HYDRO DRIVE, SIMPLIFIED: Our hydro drive system has no hoses to leak and just one easy-to-change belt. Only simple, annual maintenance is required. It also lowers the center of gravity for improved handling.
  • UNIBODY FRAME: Our one-piece body frame is a classic case of “less is more.” Because, fewer parts equal more strength. And, more durability. So, in the interest of accuracy, the Lazer Z’s unibody frame is actually a case of “less is way more.”
  • LESS TIME AT THE PUMP: Gas-powered E-Series models have a single 8-gallon tank with one fill location.
  • ON-BOARD DIAGNOSTICS: Check vital functions at a glance on the digital screen. An electronic fuel gauge with low fuel warning on all Lazer Z units, battery voltage warning, hour meter and OPC safety switch monitoring make troubleshooting easy.
  • FEWER GREASE POINTS: With just four grease points that only need annual greasing, the Lazer Z delivers maximum performance with minimum maintenance. Greaseless spindles and only four grease points on the entire machine.
  • ULTRACUT SERIES 4 DECK: This full-floating deck uses maintenance free spindle with a splined blade driver to stop bolt tightening on impacts. And, our patented bearing design on idler arm pivots only needs annual service.
  • TOOL-LESS BELT REMOVAL: Deck and hydro belt can be installed without using any tools.
