DR Power Equipment PRO XLP
DR Power Equipment PRO XLP

General Information

Manufacturer
DR Power Equipment
DR Power Equipment
Model
PRO XLP
PRO XLP
Model Code
TT130003PN
TT130003PN
Color
Orange / Black
Orange / Black

Measurements

Length
79.5 in.
79.5 in.
Width
50 in.
50 in.
Height
30 in.
30 in.
Weight

220 lb.

Shipping - 293 lb.

220 lb.

Shipping - 293 lb.

Mowing Height Adjustments
3 - 7-1/2 in. (3 - 4-1/2 in. on the head, plus 3 in. on the wheel in 1/2 in. increments)
3 - 7-1/2 in. (3 - 4-1/2 in. on the head, plus 3 in. on the wheel in 1/2 in. increments)
Mowing Width
22 in.
22 in.

Operational

PTO
540 rpm
540 rpm

Other

Warranty
Machine - 2 years Residential, 90 days Commercial
Machine - 2 years Residential, 90 days Commercial

Features

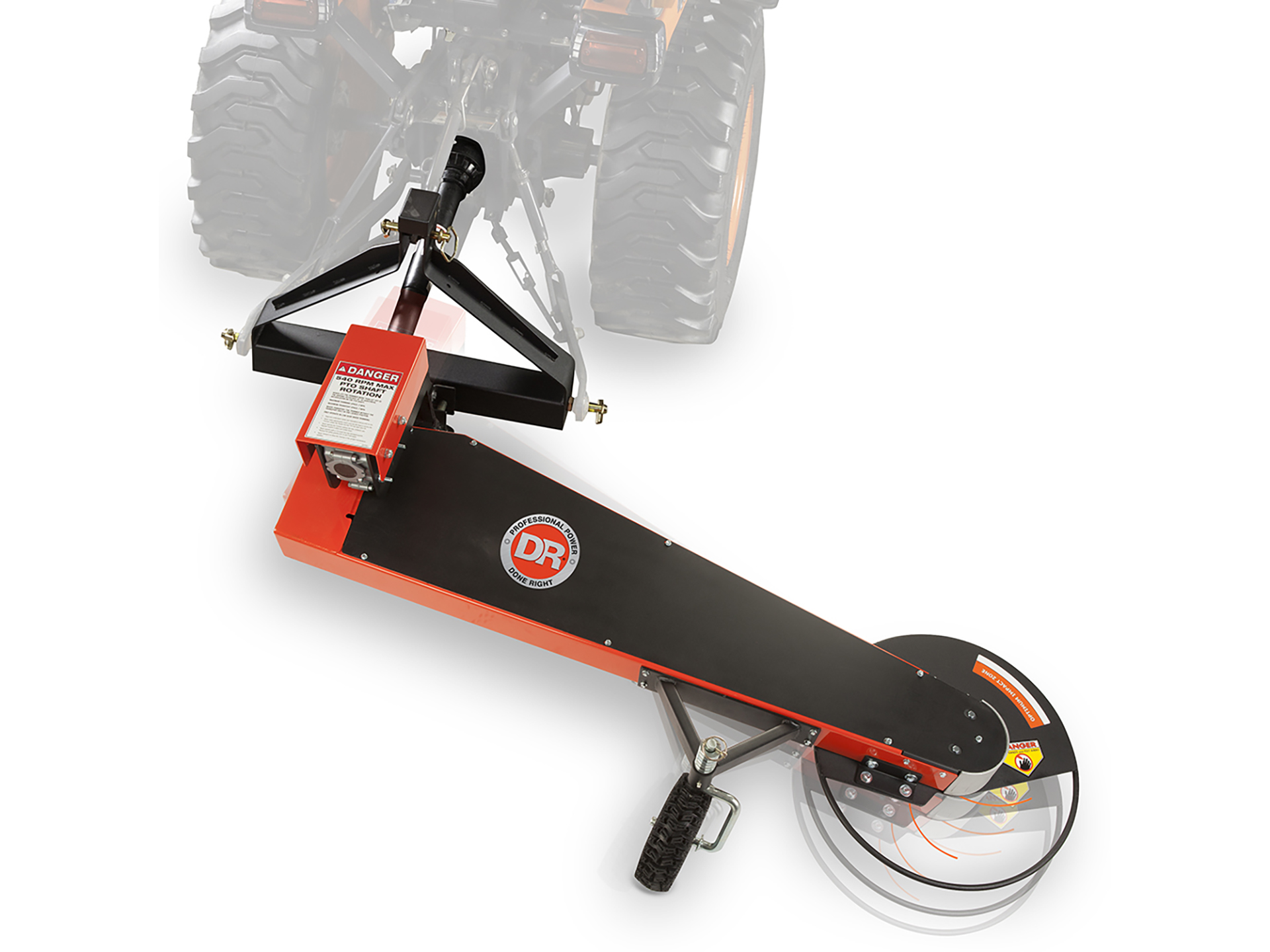

  • SPRING-LOADED MOWING ARM: The spring-loaded mowing arm allows the trimmer head to automatically deflect around fence posts, mailboxes, walls, and other obstacles. This allows you to trim right up close to just about anything on your property!

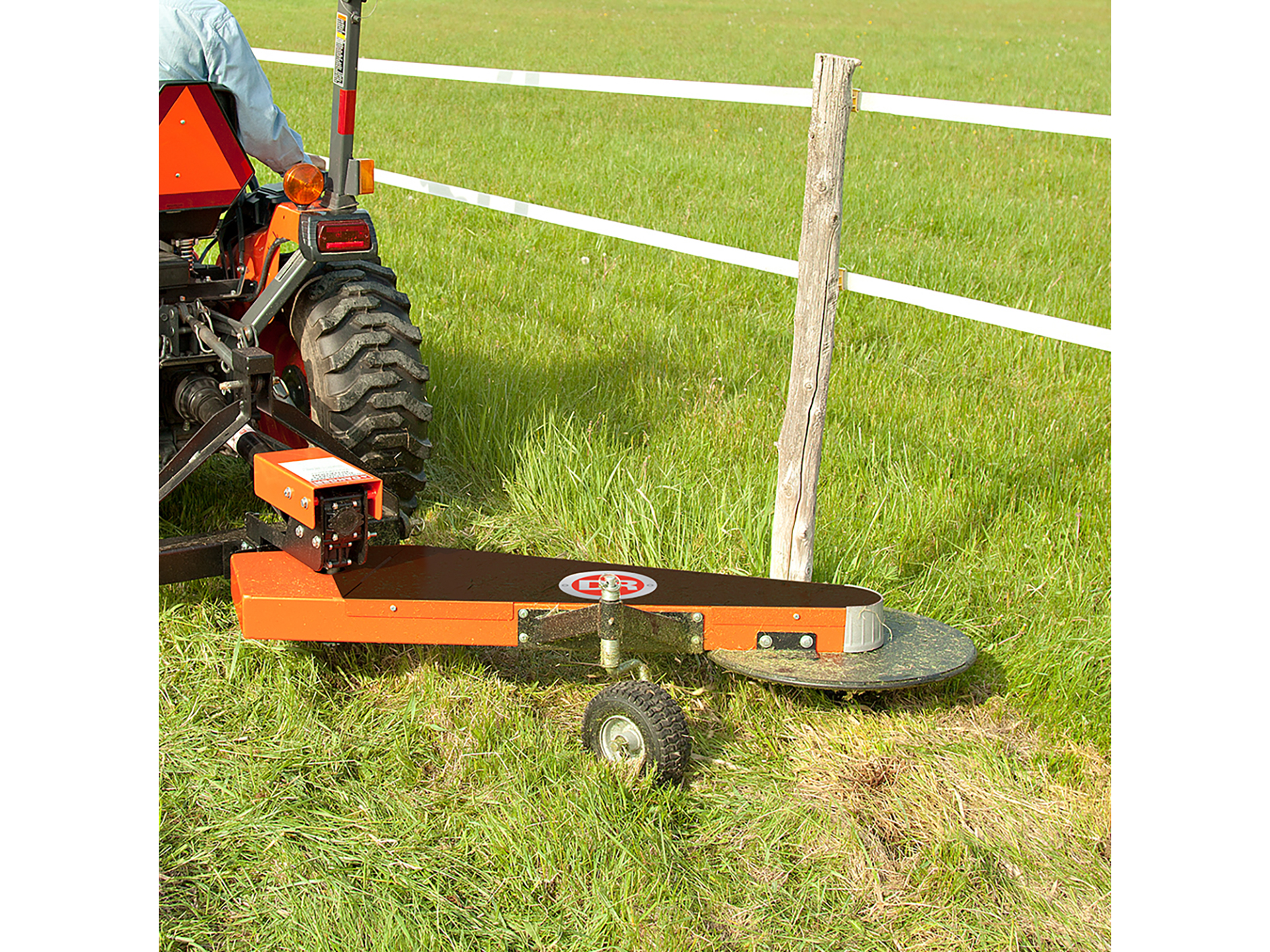

  • STEEL GUARD: The 23" diameter steel guard ensures that you'll trim just as close to fence posts as you need to, but not damage them. The guard allows the trimmer head to cut within a half-inch of any obstacle.
  • ADJUSTABLE HEIGHT ANTI-SCALPING WHEEL: The adjustable-height anti-scalping wheel prevents damage to the turf by keeping the trimmer head always at a constant distance from the ground. Adjust the height to make precise cutting height changes. Cutting height can be adjusted between 1.5" and 3.5".

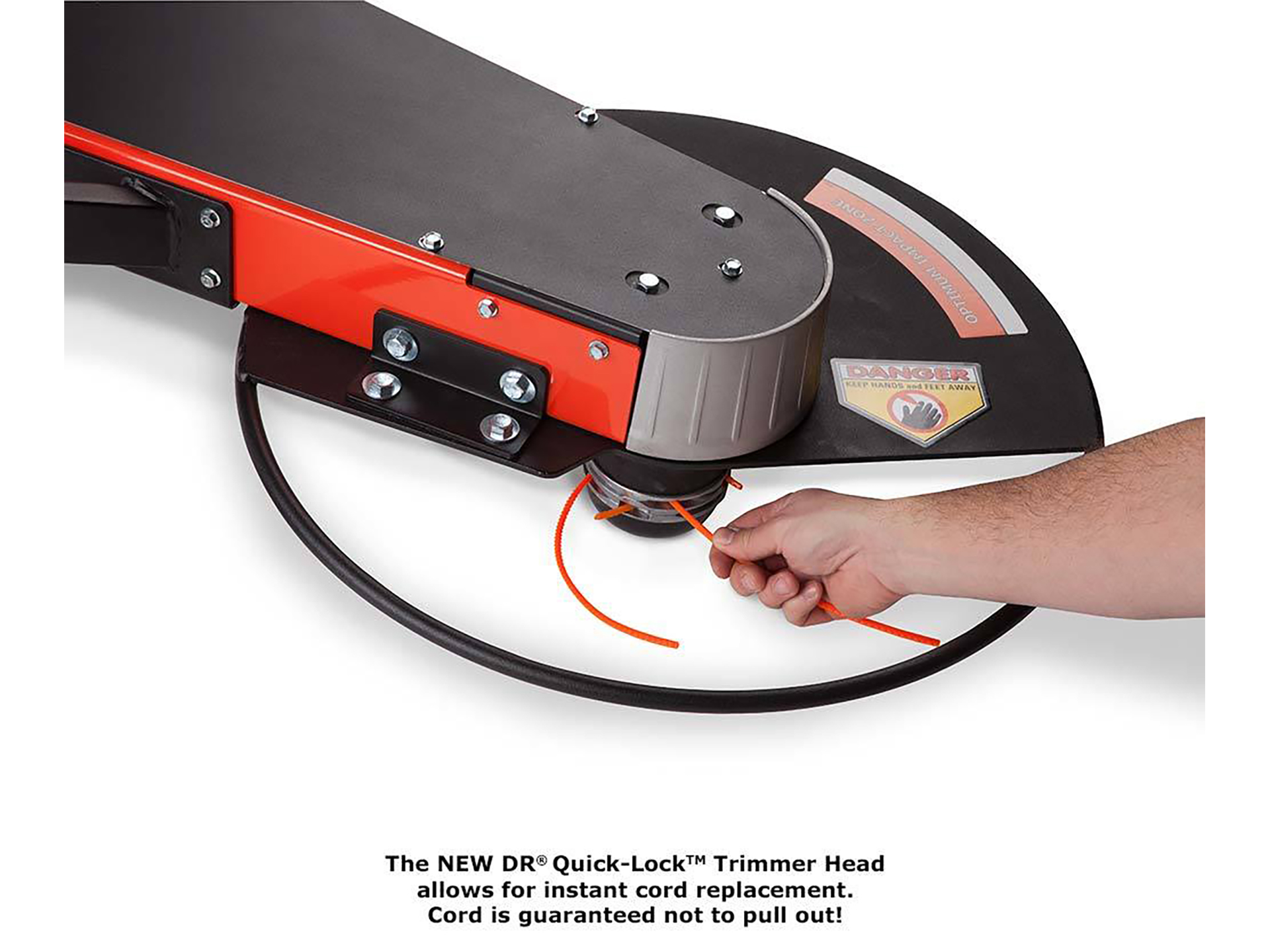

  • QUICK-LOCK™ TRIMMER HEAD: Quick-Lock Trimmer Head makes replacing the cord on your Trimmer Mower faster and easier than ever! It takes just seconds — without tools — to insert new cord into the trimmer head. The patented gripping system anchors the cord instantly, holding tight and never letting go. Accepts our 225 mil and 255 mil cords—the thickest, longest-lasting in the industry!
  • PIVOTING DECK: Follow the contours of the land with the unique pivoting deck. Ideal for anywhere with uneven ground, the pivoting deck ensures professional-quality results — an even trim with no scalping!

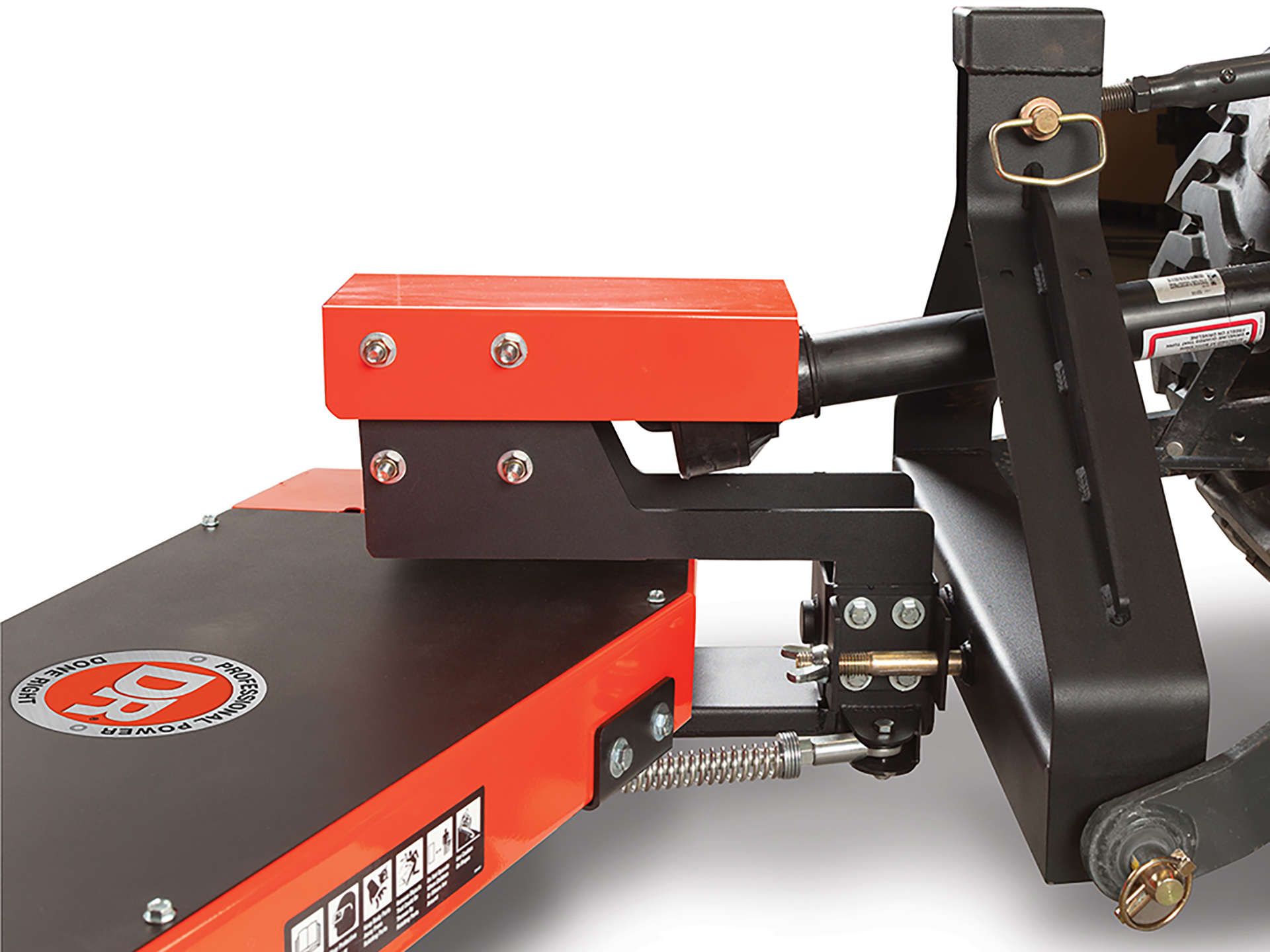

  • PROTECTED SHAFT COUPLING: The protected shaft coupling keeps your PTO shaft safe from debris and damage.
  • SUPER-DUTY CUTTING CORDS: The PRO XL Trimmer Mower accepts all DR trimming cord, including our super-thick 225 mil and 255 mil cutting cords—designed exclusively for the the Quick-Lock Trimmer Head.
  • General Type - PTO
  • Max Reach (from Center of Tractor) - 63 in. from PTO shaft to cord tip
  • Maximum Recommended Deflection - 15 in.
  • Tractor Requirements - Category 1, (45 hp maximum)
