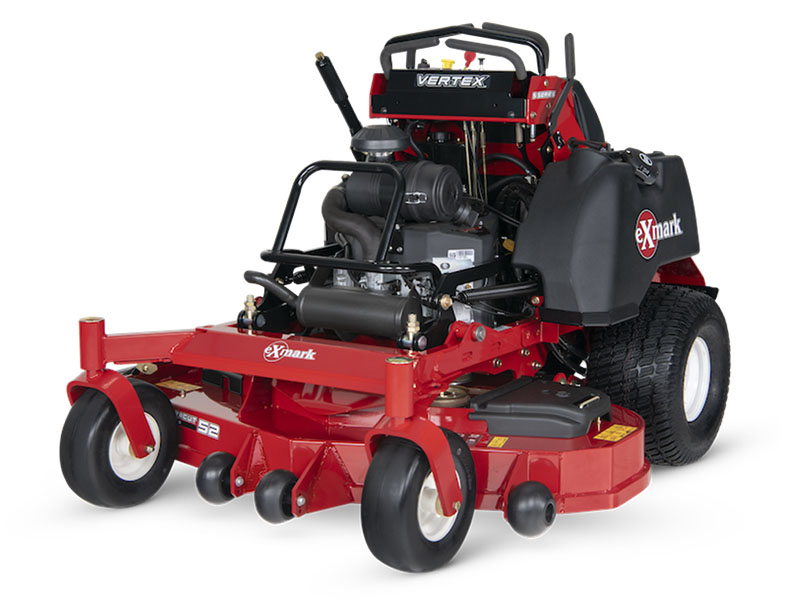

2024 Exmark Vertex S-Series 52 in. Kohler EFI 25 hp
2024 Exmark Vertex S-Series 52 in. Kohler EFI 25 hp

General Information

Manufacturer
Exmark
Exmark
Model Year
2024
2024
Model
Vertex S-Series 52 in. Kohler EFI 25 hp
Vertex S-Series 52 in. Kohler EFI 25 hp
Model Code
VXS740EKC52400
VXS740EKC52400
Color
Red
Red

Body

Frame

Tractor - Welded, heavy-duty 1.5 x 2.5 in. tubular steel

Caster forks - 0.50 in. thick caster yoke arms with tapered roller bearings

Tractor - Welded, heavy-duty 1.5 x 2.5 in. tubular steel

Caster forks - 0.50 in. thick caster yoke arms with tapered roller bearings

Safety Features
Safety package - Operator Presence Controls (OPC) with safety interlock system indicators
Safety package - Operator Presence Controls (OPC) with safety interlock system indicators

Drivetrain

Drive System
Hydro
Hydro
Drive Type
Drive description - Two Hydro Gear 12 cc pumps powering two Parker 14.5 ci motors
Drive description - Two Hydro Gear 12 cc pumps powering two Parker 14.5 ci motors
Number of Speeds
Infinitely variable speed selection
Infinitely variable speed selection
Travel Speed Forward
0 - 8.5 mph (13.68 km / h)
0 - 8.5 mph (13.68 km / h)
Drive Tires

12 x 5.0-6, smooth-tread, semipneumatic tires with tapered roller bearings

Drive wheel release - Allows unit movement without engine running

12 x 5.0-6, smooth-tread, semipneumatic tires with tapered roller bearings

Drive wheel release - Allows unit movement without engine running

Steering Tires

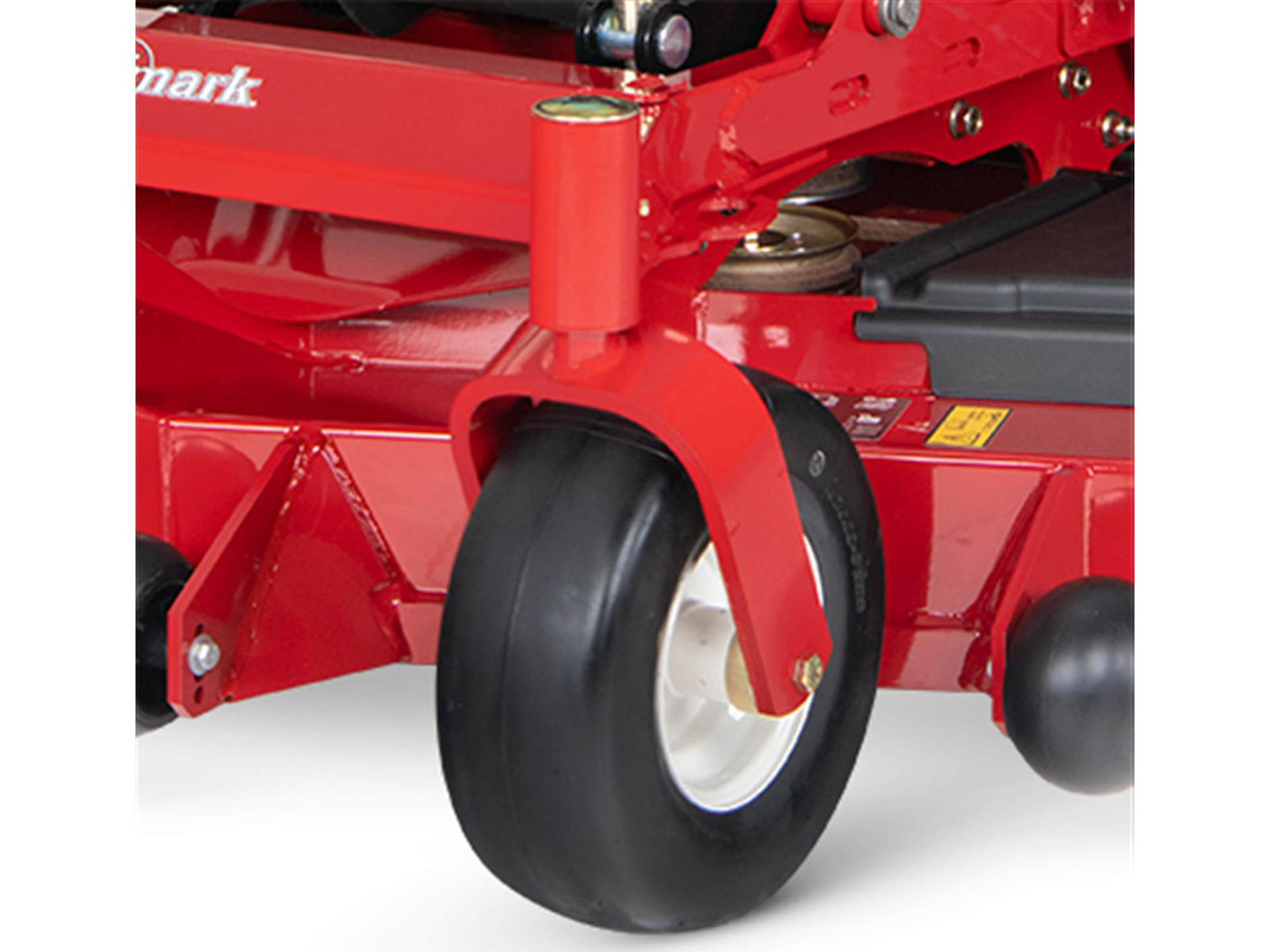

Front caster tires - 20 x 10.0-8 Carlisle Turf Master
Front caster tires - 20 x 10.0-8 Carlisle Turf Master
Parking Brake
Lever-actuated bar brake
Lever-actuated bar brake

Electrical

Battery
12 V with 20 A alternator
12 V with 20 A alternator
Instrumentation
Fuel indicator - Float gauge
Fuel indicator - Float gauge
Hour Meter
Enhanced engine
Enhanced engine

Engine

Engine Make
Kohler
Kohler
Engine Model
ECV740, Command™ EFI
ECV740, Command™ EFI
Engine Type
Speed - 3,750 rpm
Speed - 3,750 rpm
Horsepower
25 hp
25 hp
Displacement
747 cc
747 cc
Fuel System
Electronic Fuel Injected
Electronic Fuel Injected
Air Cleaner
Air filter - Heavy-duty canister air filtration system
Air filter - Heavy-duty canister air filtration system
Fuel Type
Gas EFI
Gas EFI
Fuel Capacity
8 gal. (30.28 l), single fuel tank on LH side
8 gal. (30.28 l), single fuel tank on LH side

Measurements

Length
65.33 in.
65.33 in.
Width
64.79 in.
64.79 in.
Height
49.2 in.
49.2 in.
Weight
Curb - 987 lb.
Curb - 987 lb.
Mowing Width
52 in.
52 in.
Mowing Height Range
1.5 - 5.0 in. (3.8 - 12.7 cm) in 0.25 in. (0.64 cm) increments
1.5 - 5.0 in. (3.8 - 12.7 cm) in 0.25 in. (0.64 cm) increments
Mowing Height Adjustments
Adjustable from operator’s platform
Adjustable from operator’s platform

Operational

Steering
Control - Twin levers with center fixed reference bar for ease of control forward and reverse
Control - Twin levers with center fixed reference bar for ease of control forward and reverse
Deck Construction

10 ga. top that is formed and continuously seam welded, 7 ga. side skirt

Deck style - Floating deck

Deck style description - Full-floating UltraCut Series 4

10 ga. top that is formed and continuously seam welded, 7 ga. side skirt

Deck style - Floating deck

Deck style description - Full-floating UltraCut Series 4

Deck Lift
Single point HOC, with mechanical lift-assist springs
Single point HOC, with mechanical lift-assist springs
Discharge
Side discharge standard, with molded discharge chute and option to bag or mulch
Side discharge standard, with molded discharge chute and option to bag or mulch
Spindles
Blade - No maintenance, sealed and nongreasable spindles, 7.75 in. diameter cutter housing with 1.75 in. diameter splined blade driver 1.0 in. diameter spindle shaft
Blade - No maintenance, sealed and nongreasable spindles, 7.75 in. diameter cutter housing with 1.75 in. diameter splined blade driver 1.0 in. diameter spindle shaft
Blades
3 at 18 in. length
3 at 18 in. length
Blade Tip Speed
Approximately 18,500 fpm
Approximately 18,500 fpm
Power Take-Off (PTO)
Engagement - Warner 200 ft. lb. clutch
Engagement - Warner 200 ft. lb. clutch

Other

Includes
Cup holder
Cup holder
Warranty
Commercial / Consumer - 4 year limited or 1,250 hr. (with no hour limit the first 2 years)
Commercial / Consumer - 4 year limited or 1,250 hr. (with no hour limit the first 2 years)

Features

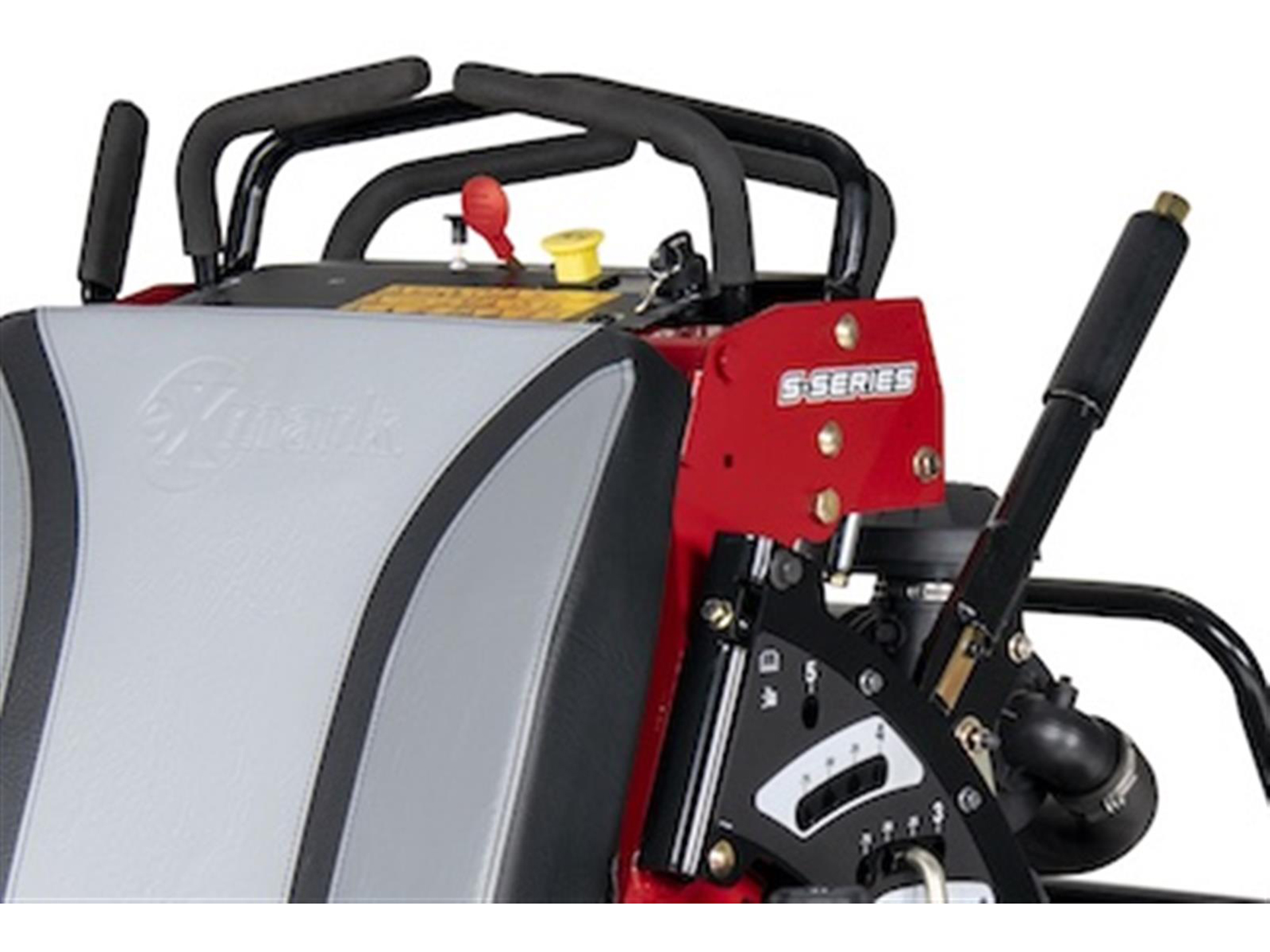

  • DESIGN SIMPLICITY: Operating a Vertex mower is easy, thanks to the simple, ergonomic design. Key, choke, throttle, height of cut adjustment...they're all right there. Hop on, and you're ready to go.

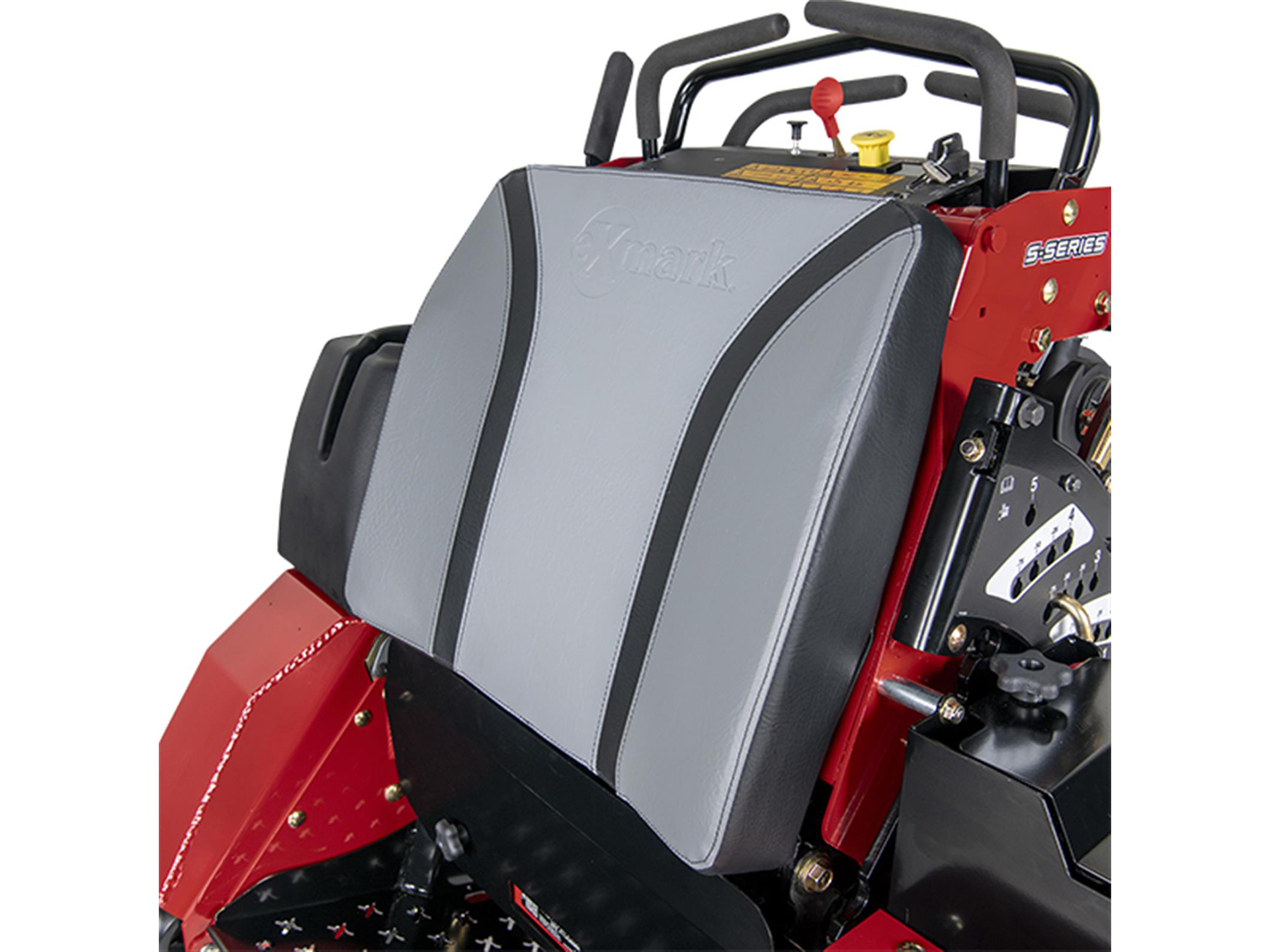

  • OPERATOR COMFORT: Designed to place the operator in a position of comfortable control. The wide, open platform offers more room for the operator to adjust their stance, while the ergonomic control panel places all vital controls close for easy reach and operation.
  • CUT QUALITY: All models are equipped with Exmark UltraCut Series 4 side-discharge cutting decks. The decks feature flow-control baffles, anti-scalp rollers, and a rod-style floating deck design for easy deck rake adjustments. The result is a signature cut quality on any turf type.
  • REDUCED MAINTENANCE: With no in-season grease points, flat-free semi-pneumatic front caster tires, and maintenance-free sealed bearing cutter housings, Vertex S-Series is designed to minimize in-season maintenance and the downtime that goes with it.

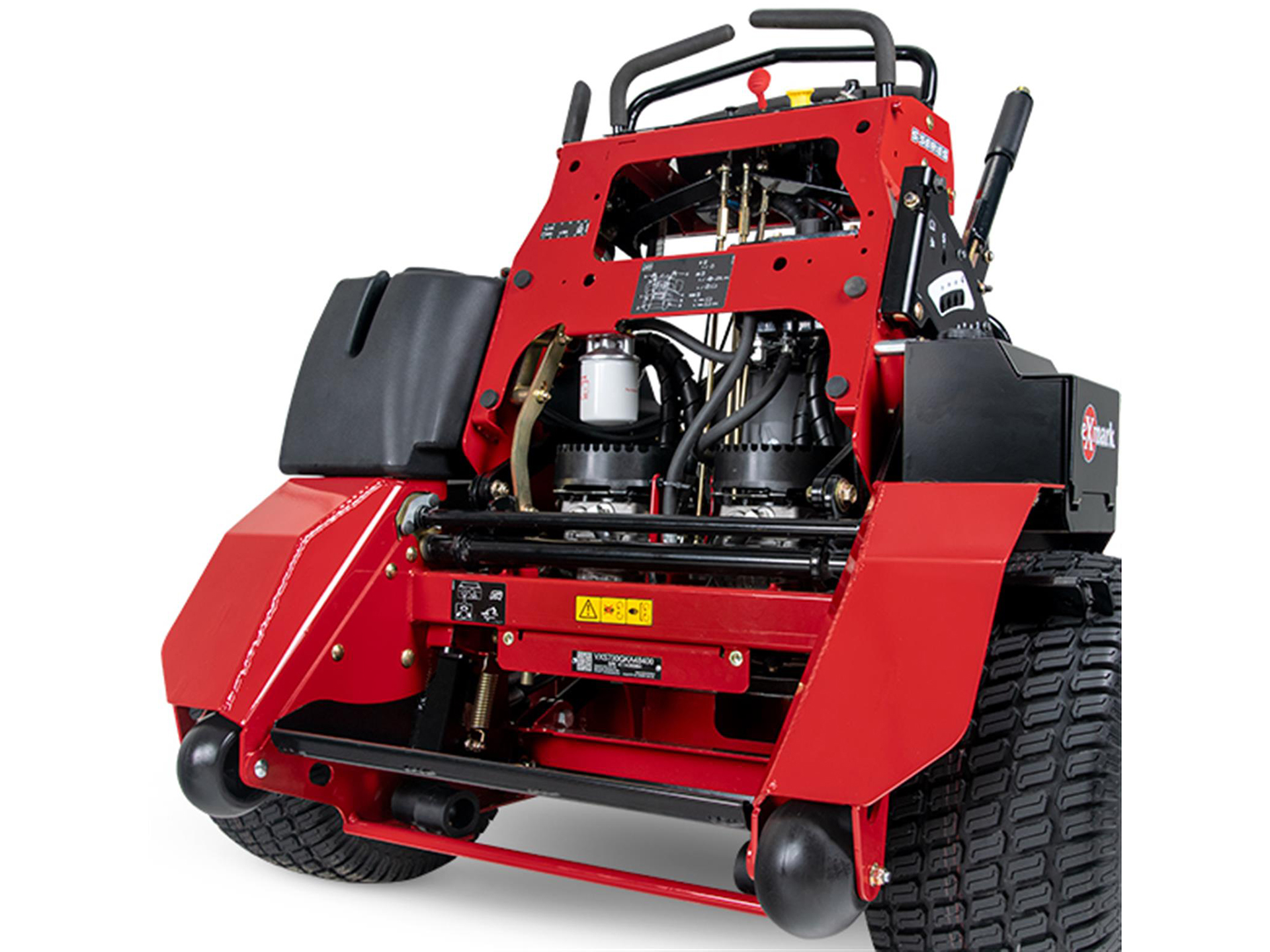

  • EASE OF SERVICE: These units are easy to service thanks to the tools-free access to the engine and hydro drive components. The reliable single-belt drive system is simple and easy to maintain, and Exmark’s patented spherical idler bearings require only annual lubrication.

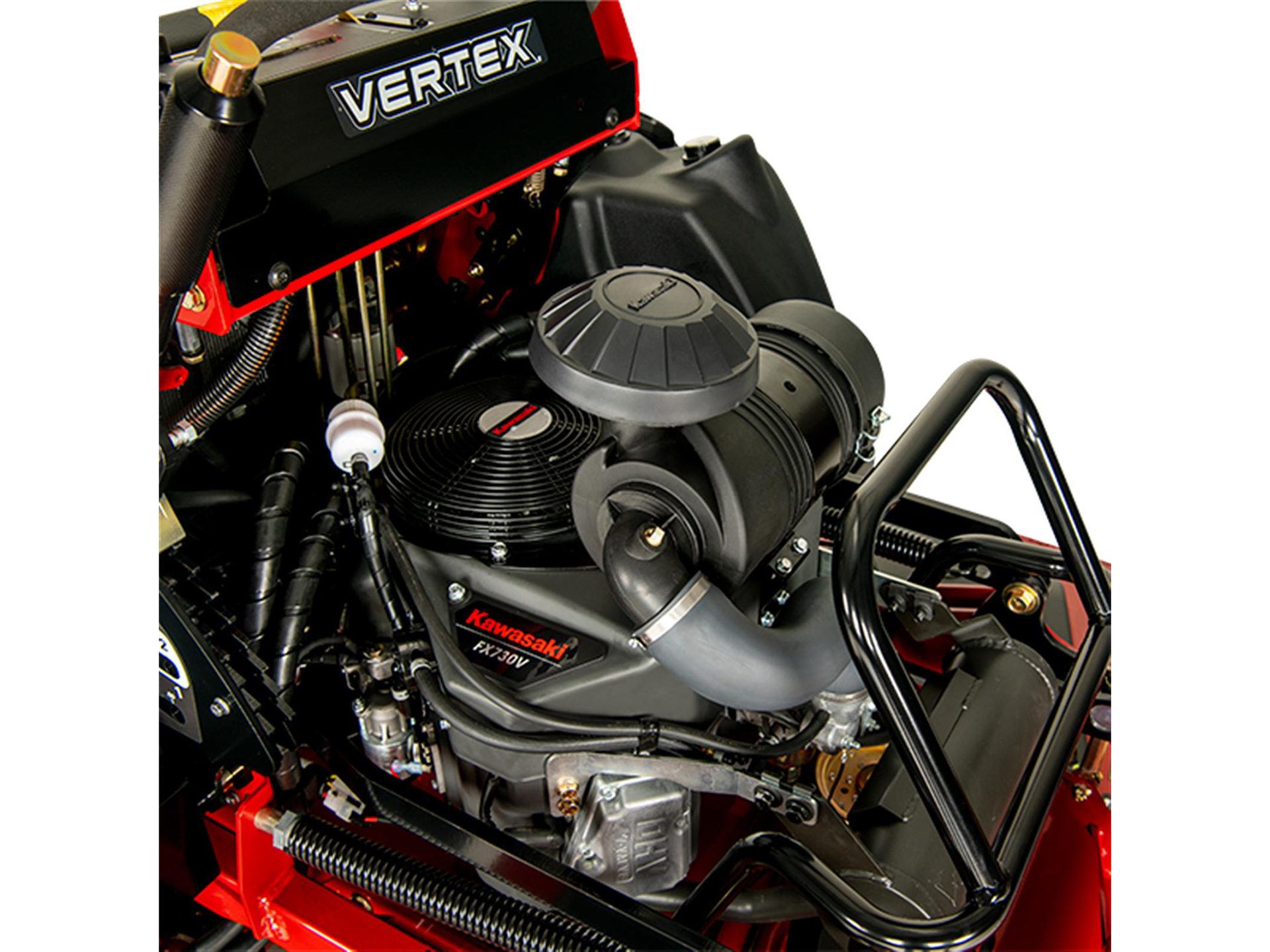

  • COMMERCIAL ENGINE: Choose from a fuel-saving EFI Kohler or carbureted Kawasaki commercial engine. Both engines feature heavy-duty canister-style air filtration systems and pressurized lubrication for maximum durability in daily commercial use.

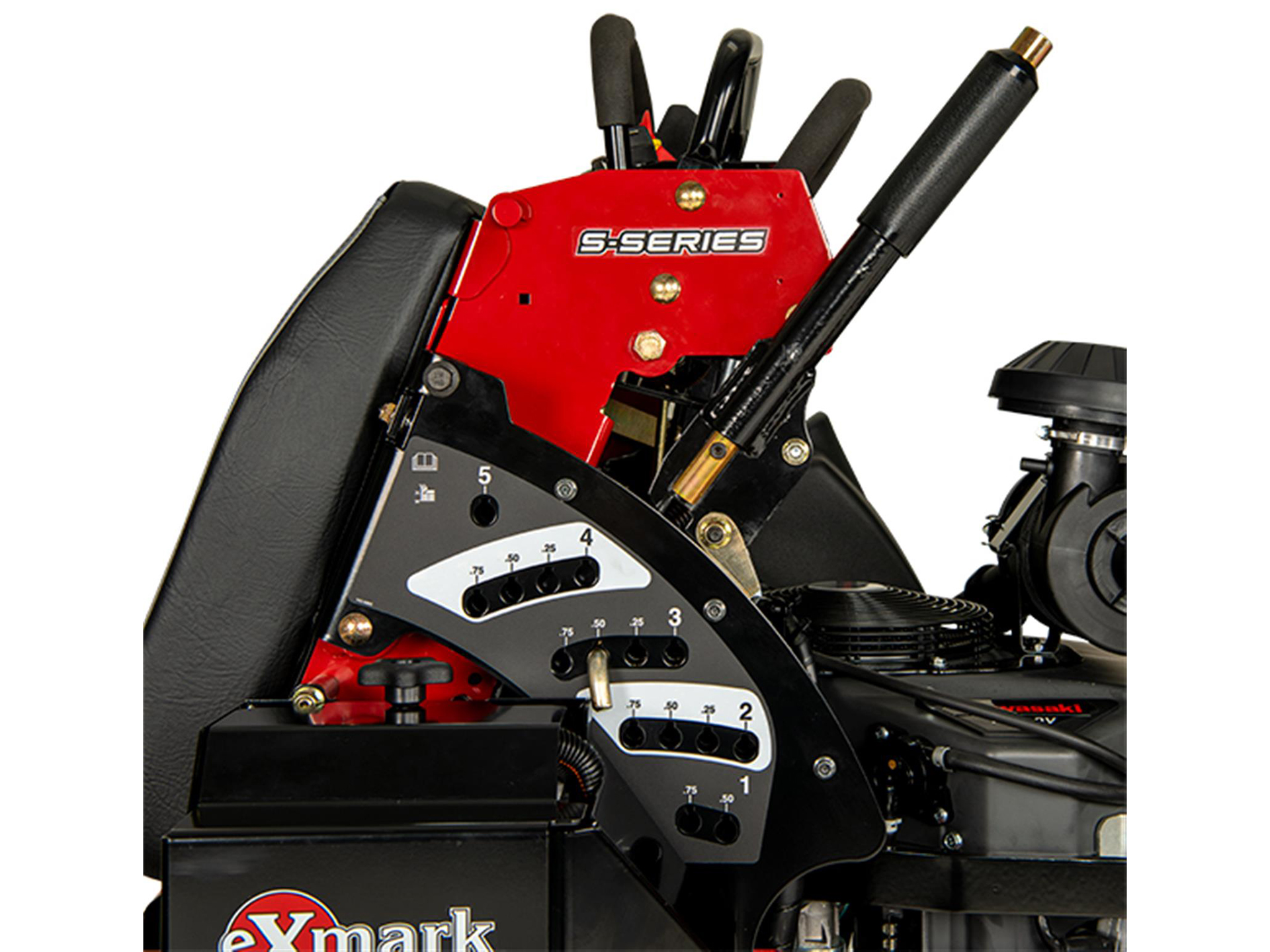

  • SINGLE-POINT HEIGHT OF CUT: The single-point height of cut makes it easy to accurately set deck height without tools. This enables the operator to quickly change cut height by simply raising and lowering the deck.

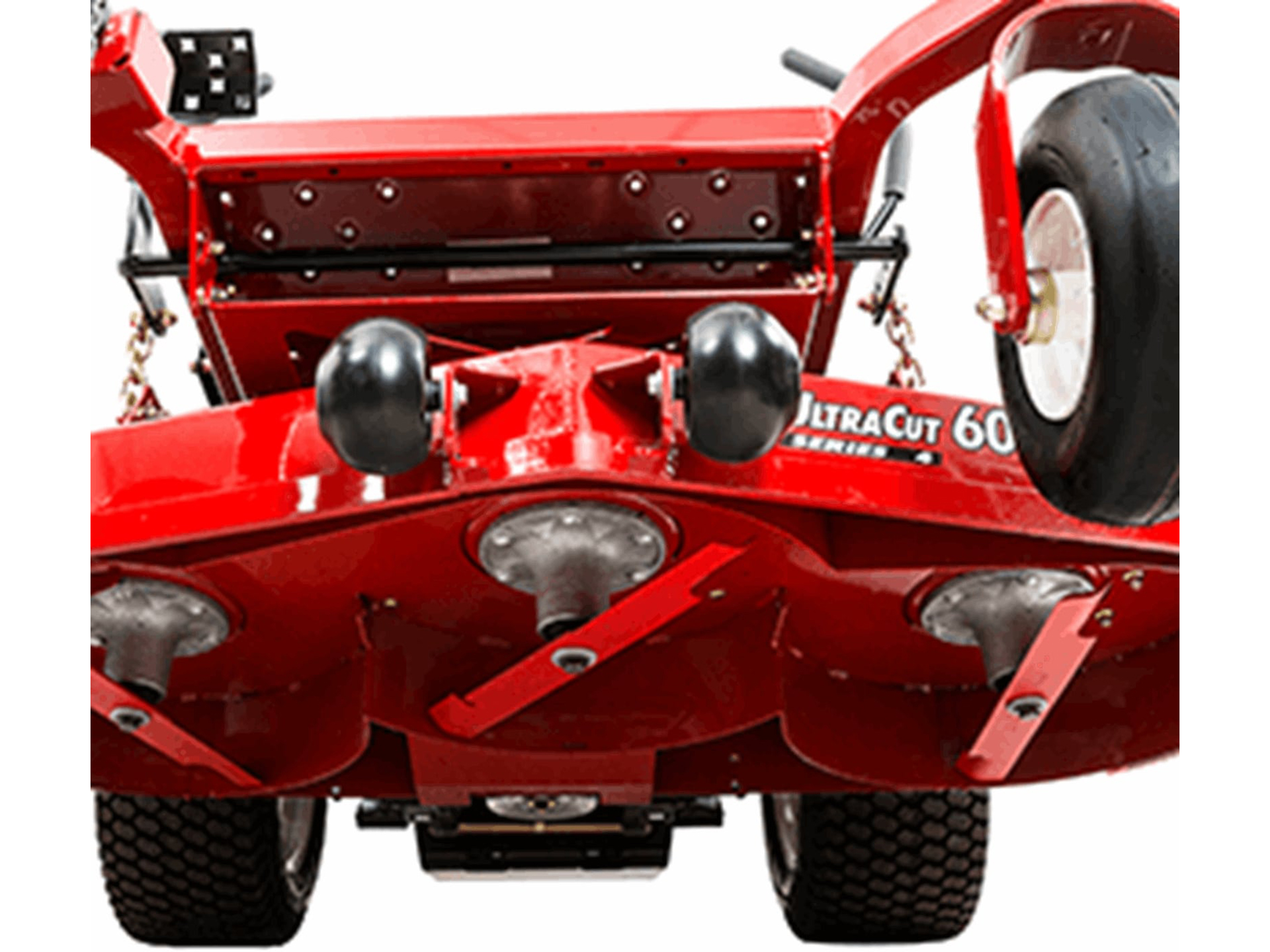

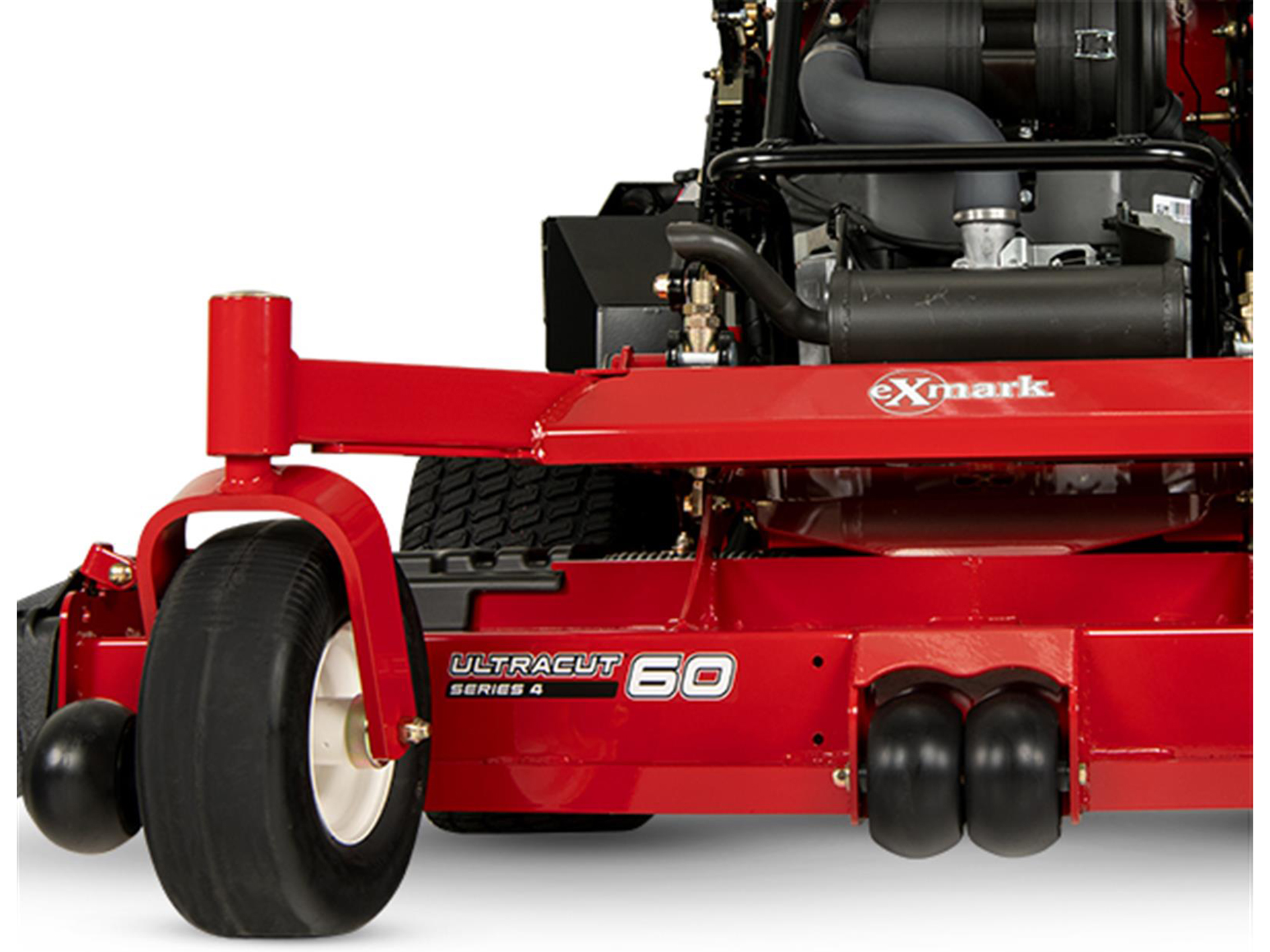

  • ULTRACUT SERIES 4 DECK: This full-floating deck uses maintenance free spindle with a splined blade driver to stop bolt tightening on impacts. And, our patented bearing design on idler arm pivots only needs annual service.
