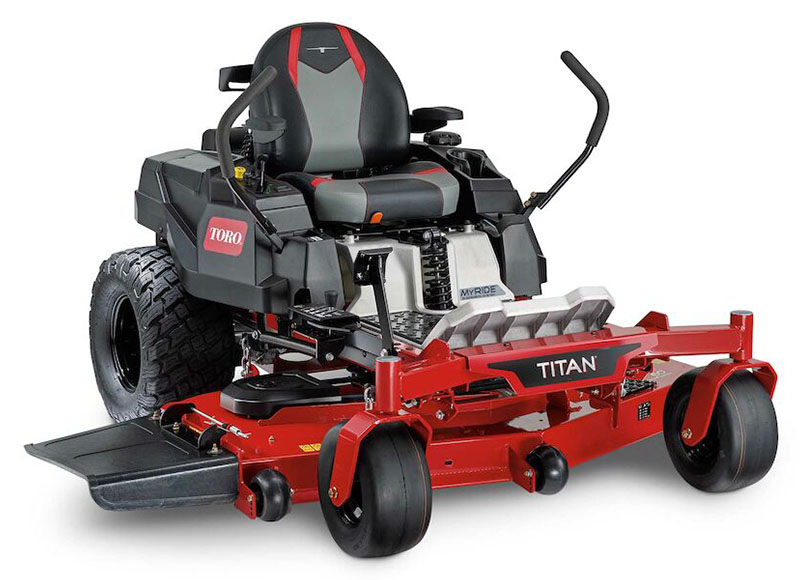

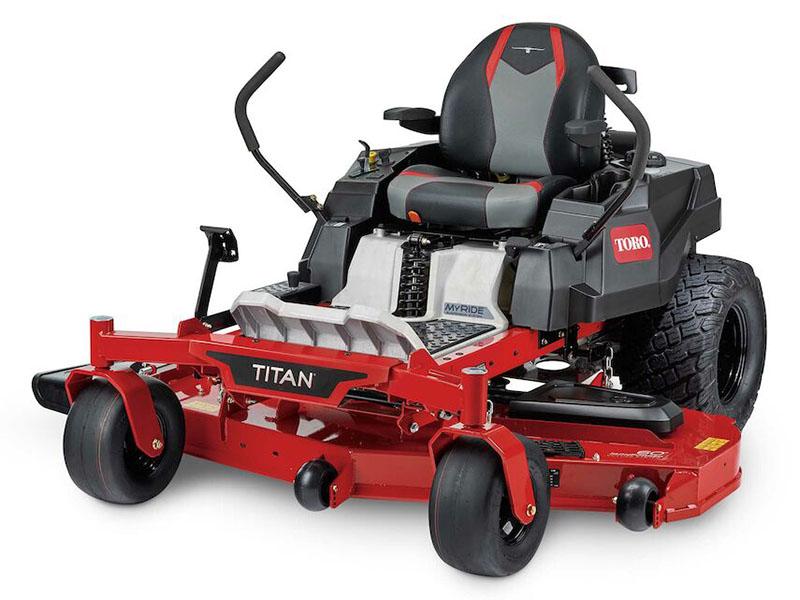

2024 Toro TITAN 60 in. Kohler 26 hp MyRIDE
2024 Toro TITAN 60 in. Kohler 26 hp MyRIDE

General Information

Manufacturer
Toro
Toro
Model Year
2024
2024
Model
TITAN 60 in. Kohler 26 hp MyRIDE
TITAN 60 in. Kohler 26 hp MyRIDE
Model Code
75316
75316
Color
Red
Red

Body

Seat
18 in. handcrafted high back with arm rests - lever slide
18 in. handcrafted high back with arm rests - lever slide
Safety Features
Front Bumper - Bull-nose
Front Bumper - Bull-nose

Drivetrain

Drive Type
Rear-wheel
Rear-wheel
Transmission
HG-2800 with charge pumps
HG-2800 with charge pumps
Travel Speed Forward
Ground / Transport - Up to 8.5 mph (13.6 kph)
Ground / Transport - Up to 8.5 mph (13.6 kph)
Drive Tires
22 x 11 - 10 in. (56 x 28 - 25.4 cm)
22 x 11 - 10 in. (56 x 28 - 25.4 cm)
Steering Tires
Caster - 13 x 6.5 - 6 in. (33 x 16.5 - 15.2 cm)
Caster - 13 x 6.5 - 6 in. (33 x 16.5 - 15.2 cm)

Electrical

Hour Meter
Standard
Standard

Engine

Engine Make
Kohler
Kohler
Gross Horsepower

26 hp

26 HP gross at 3,600 RPM SAE J1940 and SAE J2723, as rated by Toro®. As configured to meet safety, emission and operating requirements, the actual engine horsepower on this mower may be significantly lower.

26 hp

26 HP gross at 3,600 RPM SAE J1940 and SAE J2723, as rated by Toro®. As configured to meet safety, emission and operating requirements, the actual engine horsepower on this mower may be significantly lower.

Displacement
747 cc
747 cc
Air Cleaner

Pro

Air Filter - Heavy duty canister

Pro

Air Filter - Heavy duty canister

Starter
Electric
Electric
Lubrication
Recommended Oil Type - 10W - 30 with filter change
Recommended Oil Type - 10W - 30 with filter change
Fuel Type
Gasoline
Gasoline
Fuel Capacity
5 gal. (18.9 l / 20 qt.)
5 gal. (18.9 l / 20 qt.)

Hydraulics

Hydraulic System
Dampeners - Pro control
Dampeners - Pro control

Measurements

Length
Box Dimensions - 91.0 in. (231.14 cm)
Box Dimensions - 91.0 in. (231.14 cm)
Width
Box Dimensions - 70.2 in. (178.43 cm)
Box Dimensions - 70.2 in. (178.43 cm)
Height
Box Dimensions - 52.0 in. (132.0 cm)
Box Dimensions - 52.0 in. (132.0 cm)
Mowing Width
60 in. (152 cm)
60 in. (152 cm)
Turning Radius
Zero
Zero
Mowing Height Range
1.5 - 4.5 in. (3.8 - 11.4 cm)
1.5 - 4.5 in. (3.8 - 11.4 cm)
Mowing Height Adjustments
Foot Operated - Standard
Foot Operated - Standard

Operational

Steering
Controls - 1.3 in. (3.3 cm) diameter grips; adjustable, dampened
Controls - 1.3 in. (3.3 cm) diameter grips; adjustable, dampened
Deck Construction
Design - 60 in. IronForged® fabricated 10 ga. high strength with bull nose
Design - 60 in. IronForged® fabricated 10 ga. high strength with bull nose
Deck Material
10 ga. steel
10 ga. steel
Blades
3
3
Blade Tip Speed
18,908 ft. / min. (5,763 m. / min.)
18,908 ft. / min. (5,763 m. / min.)
Working Area Capacity

Yard Size - Up to 4 acres

Terrain Type - Flat with obstacles

Yard Size - Up to 4 acres

Terrain Type - Flat with obstacles

Tractor Hitch
Bracket - Standard
Bracket - Standard

Other

Includes

Comfort Platform - MyRIDE® suspension system

Cup Holder - Standard

In the Box - 1 battery, engine oil

Product Type - TITAN MyRide

Product Use - Residential

Comfort Platform - MyRIDE® suspension system

Cup Holder - Standard

In the Box - 1 battery, engine oil

Product Type - TITAN MyRide

Product Use - Residential

Warranty

3-year unlimited hour residential or 3-year / 300 hour commercial

See dealer for details.

3-year unlimited hour residential or 3-year / 300 hour commercial

See dealer for details.

Features

  • MYRIDE® SUSPENSION SYSTEM: No more rocky rides. Save your body from the toughest terrain and avoid slow mowing speeds with the MyRIDE Suspension System. Enjoy a more comfortable ride, keeping you productive and feeling fresh.
  • IRONFORGED® DECK: Toro IronForged® fabricated deck ensures years of reliability and top performance.

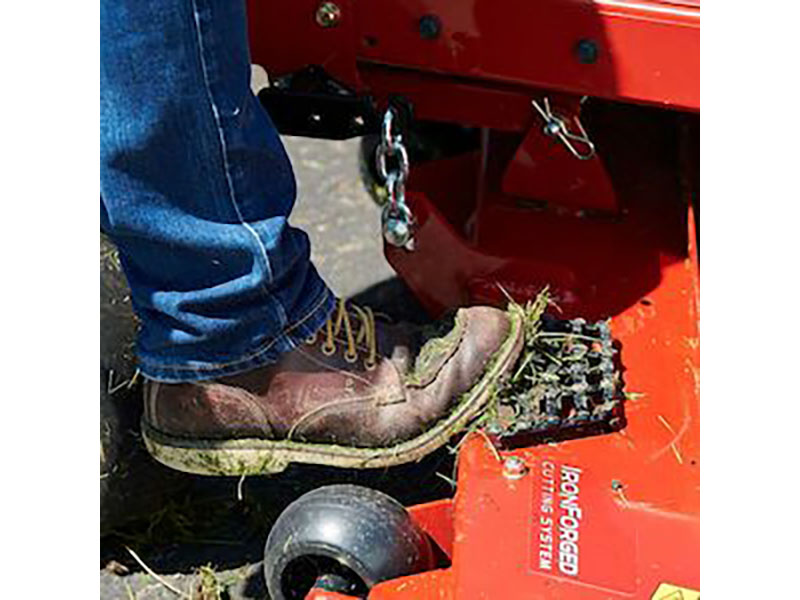

  • CAST ALUMINUM STOMP PAD: Keep your grip and remove excess mud from your shoes with a cast aluminum stomp pad.

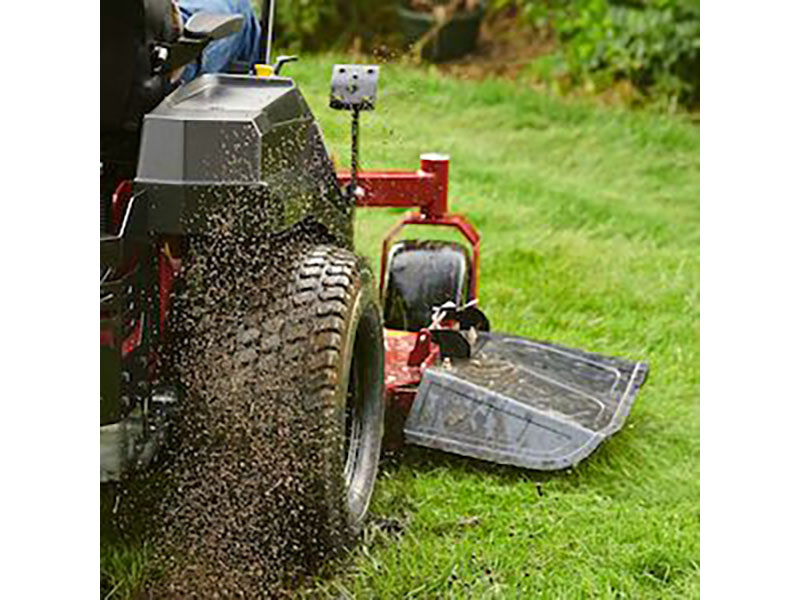

  • WET SPRAY BLOCKING FENDERS: Shield your engine from tire spray and avoid backsplash on you with protective tire fenders.

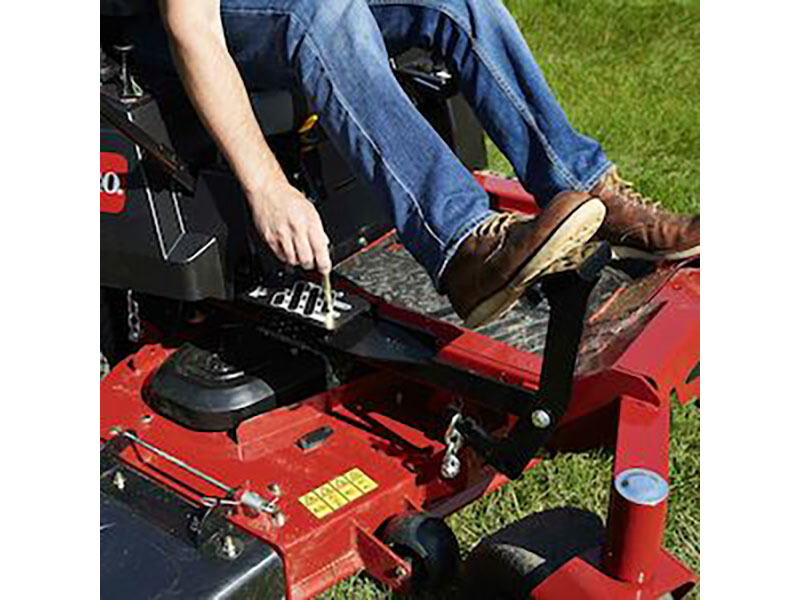

  • EASY HEIGHT-OF-CUT ADJUSTMENT: Easily clear unexpected obstacles and save your deck with the deck lift pedal.
  • PRO DNA: Commercial DNA courses through these machines' veins with the same technology professionals depend on. Get a beautiful, professional-looking lawn.

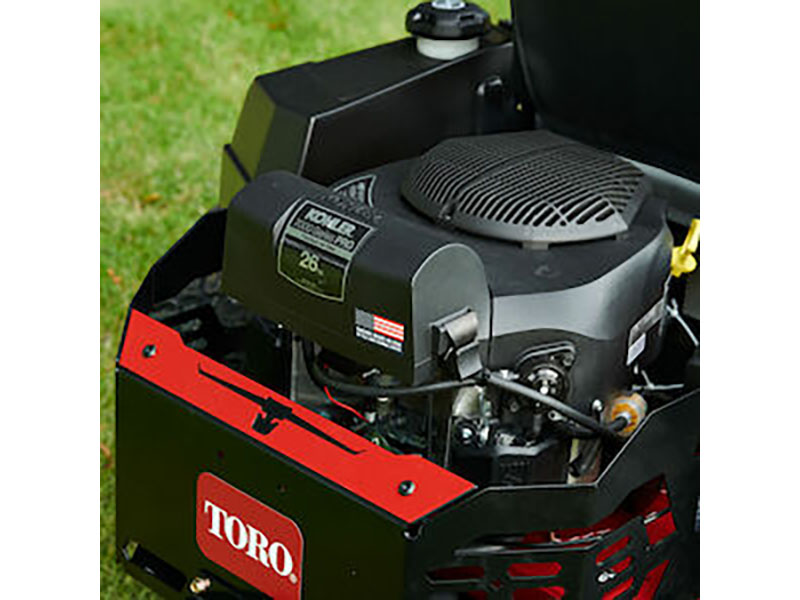

  • BIG POWER: Designed to give your mower powerful performance to cut through the nastiest lawns with the 26 HP* Kohler Engine. (*26 HP gross at 3,600 RPM SAE J1940 and SAE J2723, as rated by Toro®. As configured to meet safety, emission and operating requirements, the actual engine horsepower on this mower may be significantly lower.)

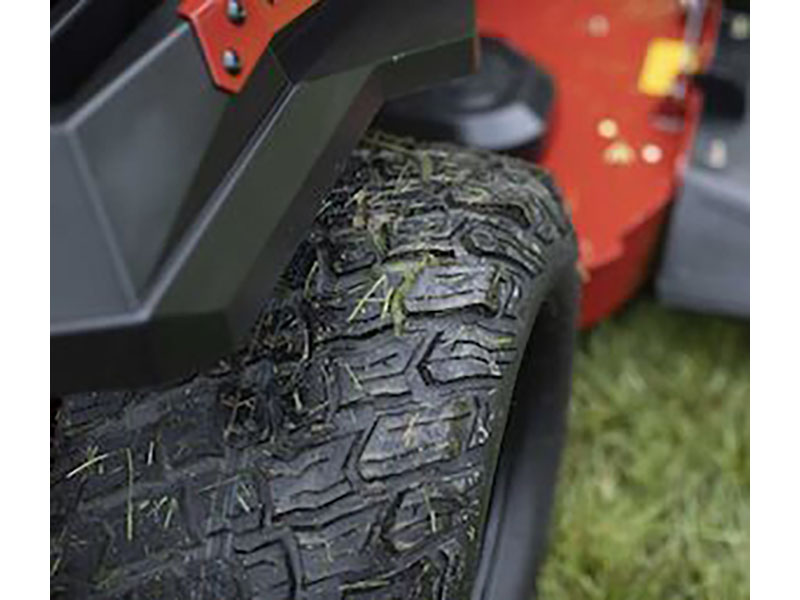

  • ULTIMATE TRACTION: Massive drive tires feature wide aggressive tread that deliver maximum traction.

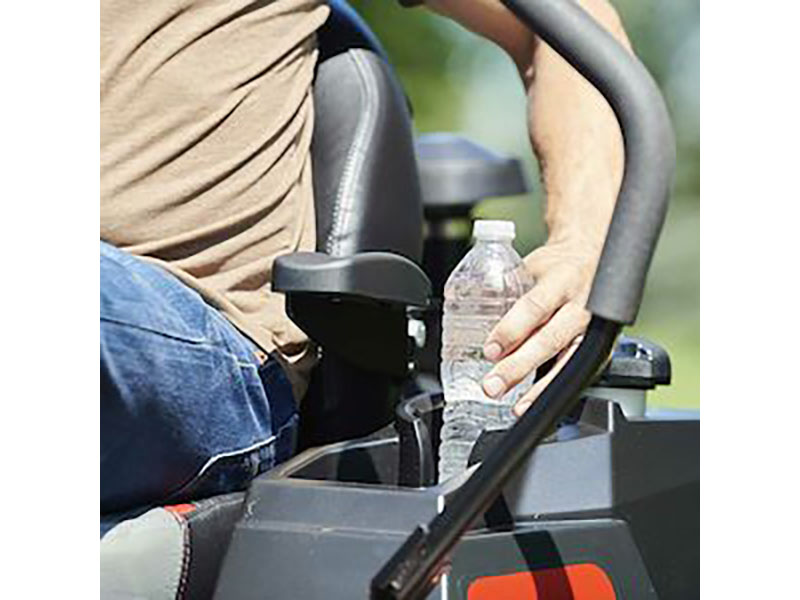

  • CUP HOLDER: Stay cool and hydrated with a built-in cup holder.

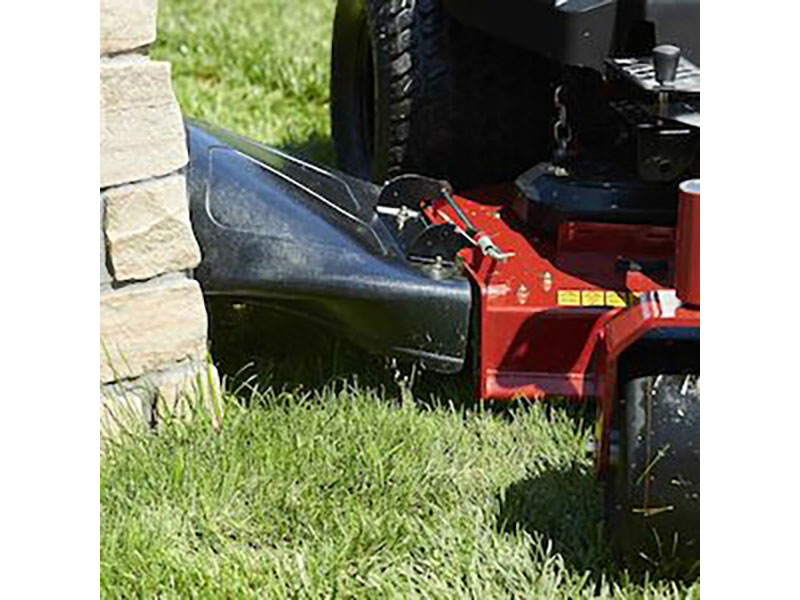

  • RUBBER DISCHARGE CHUTE: Trim close without damaging landscape structures or your chute.
  • COMPATIBLE WITH THE MYTORO APP: The MyToro app serves up essential product resources like manuals & service reminders, parts & maintenance kits, how-to videos, weather and more. To download please visit your mobile device's App Store.

Features

  • MYRIDE® SUSPENSION SYSTEM: No more rocky rides. Save your body from the toughest terrain and avoid slow mowing speeds with the MyRIDE Suspension System. Enjoy a more comfortable ride, keeping you productive and feeling fresh.
  • IRONFORGED® DECK: Toro IronForged® fabricated deck ensures years of reliability and top performance.
  • CAST ALUMINUM STOMP PAD: Keep your grip and remove excess mud from your shoes with a cast aluminum stomp pad.
  • WET SPRAY BLOCKING FENDERS: Shield your engine from tire spray and avoid backsplash on you with protective tire fenders.
  • EASY HEIGHT-OF-CUT ADJUSTMENT: Easily clear unexpected obstacles and save your deck with the deck lift pedal.
  • PRO DNA: Commercial DNA courses through these machines' veins with the same technology professionals depend on. Get a beautiful, professional-looking lawn.
  • BIG POWER: Designed to give your mower powerful performance to cut through the nastiest lawns with the 26 HP* Kohler Engine. (*26 HP gross at 3,600 RPM SAE J1940 and SAE J2723, as rated by Toro®. As configured to meet safety, emission and operating requirements, the actual engine horsepower on this mower may be significantly lower.)
  • ULTIMATE TRACTION: Massive drive tires feature wide aggressive tread that deliver maximum traction.
  • CUP HOLDER: Stay cool and hydrated with a built-in cup holder.
  • RUBBER DISCHARGE CHUTE: Trim close without damaging landscape structures or your chute.
  • COMPATIBLE WITH THE MYTORO APP: The MyToro app serves up essential product resources like manuals & service reminders, parts & maintenance kits, how-to videos, weather and more. To download please visit your mobile device's App Store.
