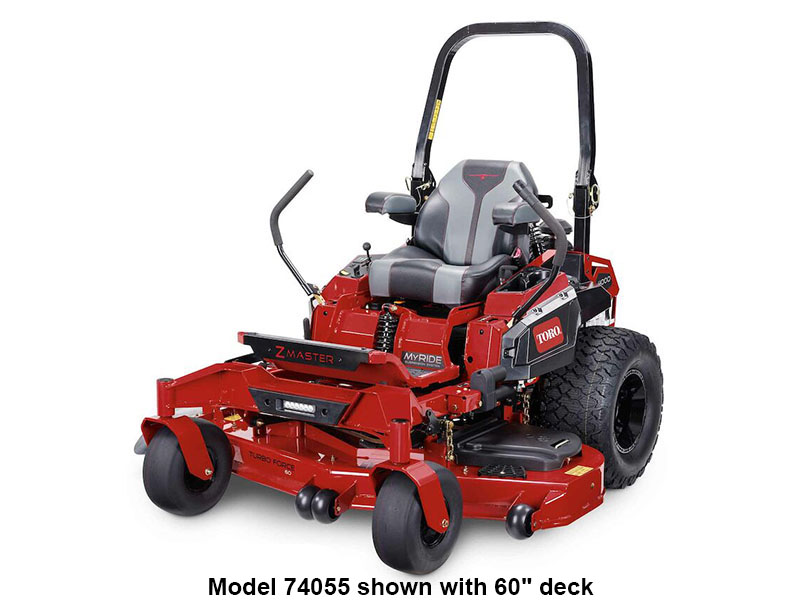

2024 Toro Z Master 4000 HDX 52 in. Kawasaki FX921V 31 hp MyRIDE
2024 Toro Z Master 4000 HDX 52 in. Kawasaki FX921V 31 hp MyRIDE

General Information

Manufacturer
Toro
Toro
Model Year
2024
2024
Model
Z Master 4000 HDX 52 in. Kawasaki FX921V 31 hp MyRIDE
Z Master 4000 HDX 52 in. Kawasaki FX921V 31 hp MyRIDE
Model Code
74052
74052
Color
Red
Red

Body

Seat
Deluxe with armrests
Deluxe with armrests
Rollover Protection (ROPS)
Folding; standard
Folding; standard

Drivetrain

Transmission
ZT-4400 integrated pumps and wheel motors
ZT-4400 integrated pumps and wheel motors
Travel Speed Forward
Ground / Transport - Up to 12.0 mph (19.3 kph)
Ground / Transport - Up to 12.0 mph (19.3 kph)
Drive Tires
Voodoo Trac 26 x 10.5 - 12 in. (66 x 26.7 - 30.5 cm)
Voodoo Trac 26 x 10.5 - 12 in. (66 x 26.7 - 30.5 cm)
Steering Tires
Caster - 15 x 6.5 - 6 in. (38 x 16.5 - 15.2 cm) pneumatic
Caster - 15 x 6.5 - 6 in. (38 x 16.5 - 15.2 cm) pneumatic

Electrical

Lighting
LED headlights
LED headlights
Hour Meter
Standard
Standard

Engine

Engine Make
Kawasaki
Kawasaki
Engine Model
FX921V
FX921V
Gross Horsepower

31 hp

The gross horsepower of these engines was laboratory rated at 3,600 RPM by the engine manufacturer in accordance with SAE J1940 and SAE J1995. As configured to meet safety, emission and operating requirements, the actual engine horsepower on this mower may be significantly different.

31 hp

The gross horsepower of these engines was laboratory rated at 3,600 RPM by the engine manufacturer in accordance with SAE J1940 and SAE J1995. As configured to meet safety, emission and operating requirements, the actual engine horsepower on this mower may be significantly different.

Displacement
999 cc
999 cc
Air Cleaner
Heavy-duty Donaldson® canister-style
Heavy-duty Donaldson® canister-style
Starter
Electric
Electric
Fuel Type
Gasoline
Gasoline
Fuel Capacity
10 gal. (37.8 l / 40 qt.)
10 gal. (37.8 l / 40 qt.)

Measurements

Length
Box Dimensions - 91 in. (213.1 cm)
Box Dimensions - 91 in. (213.1 cm)
Width
Box Dimensions - 70 in. (316.2 cm)
Box Dimensions - 70 in. (316.2 cm)
Height
Box Dimensions - 52.5 in. (133.4 cm)
Box Dimensions - 52.5 in. (133.4 cm)
Mowing Width
52 in. (132 cm)
52 in. (132 cm)
Turning Radius
Zero
Zero
Mowing Height Range
1.5 - 5.5 in. (3.8 - 14.0 cm)
1.5 - 5.5 in. (3.8 - 14.0 cm)
Mowing Height Adjustments
Foot Operated - Standard
Foot Operated - Standard

Operational

Steering

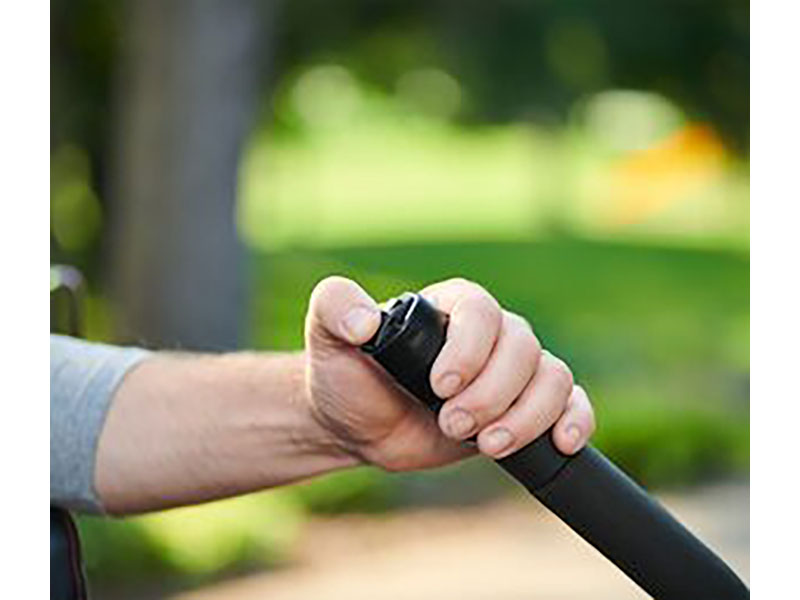

Controls - 1.4 in. (3.6 cm) diameter grips; adjustable, dampened
Controls - 1.4 in. (3.6 cm) diameter grips; adjustable, dampened
Deck Construction
Design - 52 in. (132.1 cm) 7 ga. high-strength steel TURBO FORCE®
Design - 52 in. (132.1 cm) 7 ga. high-strength steel TURBO FORCE®
Deck Material
7 ga. high-strength steel
7 ga. high-strength steel
Discharge
Chute - Rubber
Chute - Rubber
Spindles

Bearings - Maintenance-free

Housing - 9 in. (22.9 cm) diameter aluminum

Bearings - Maintenance-free

Housing - 9 in. (22.9 cm) diameter aluminum

Blades
0.204 in. (0.5 cm) heat-treated steel
0.204 in. (0.5 cm) heat-treated steel
Blade Tip Speed
18,500 ft. / min. (5,638 m. / min.)
18,500 ft. / min. (5,638 m. / min.)
PTO Clutch
Electromagnetic
Electromagnetic

Other

Includes

Comfort Platform - MyRIDE® suspension system

Platform Travel - 3.0 in. (7.62 cm)

Product Type - Zero turn mowers

Shocks - 1 front center / 2 rear

Comfort Platform - MyRIDE® suspension system

Platform Travel - 3.0 in. (7.62 cm)

Product Type - Zero turn mowers

Shocks - 1 front center / 2 rear

Warranty

5-year / 1250 hour limited (no hour limit first 2 years)

See dealer for details.

5-year / 1250 hour limited (no hour limit first 2 years)

See dealer for details.

Features

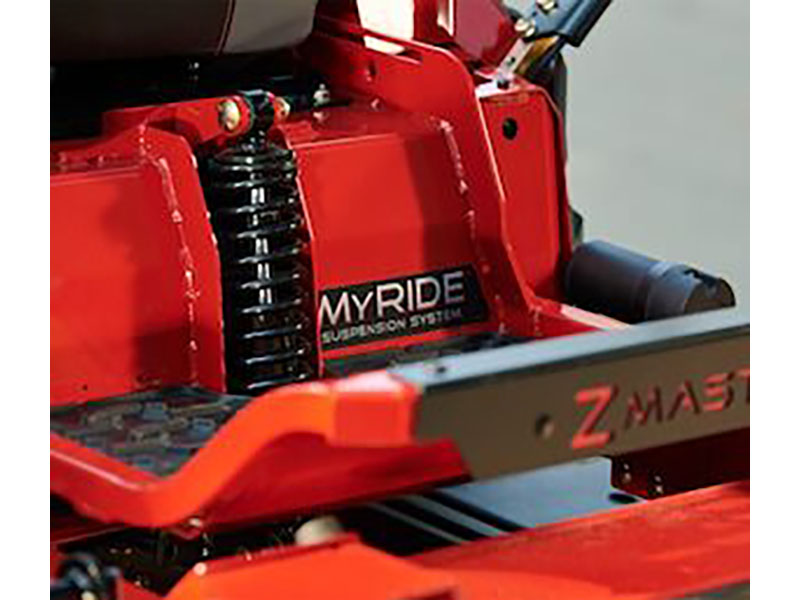

  • MYRIDE® SUSPENSION SYSTEM: Save your body from the toughest terrain with the MyRIDE Suspension System.
  • ELECTRONIC DECK LIFT ASSIST: Electronic deck lift assist in dialing in your desired cut height.

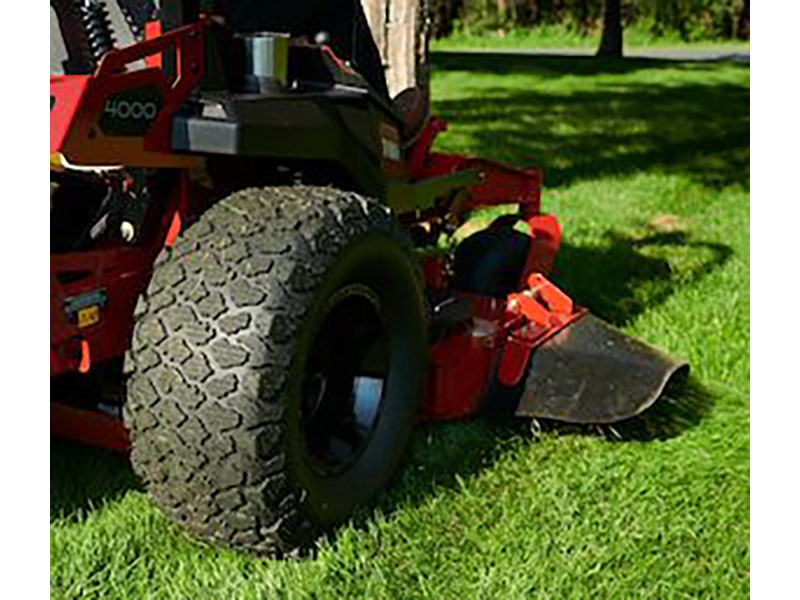

  • 26" VOODOO TRAC™ DRIVE TIRES: Get the ultimate in agressive tread and styling and survey the task from a higher-vantage-point with 26" Voodoo Trac™ Drive Tires.
  • UP TO 12 MPH: Get more done with ground speeds up to 12 MPH without reducing cut quality.
  • LED HEADLIGHTS: Powerful illumination for after-hours work.

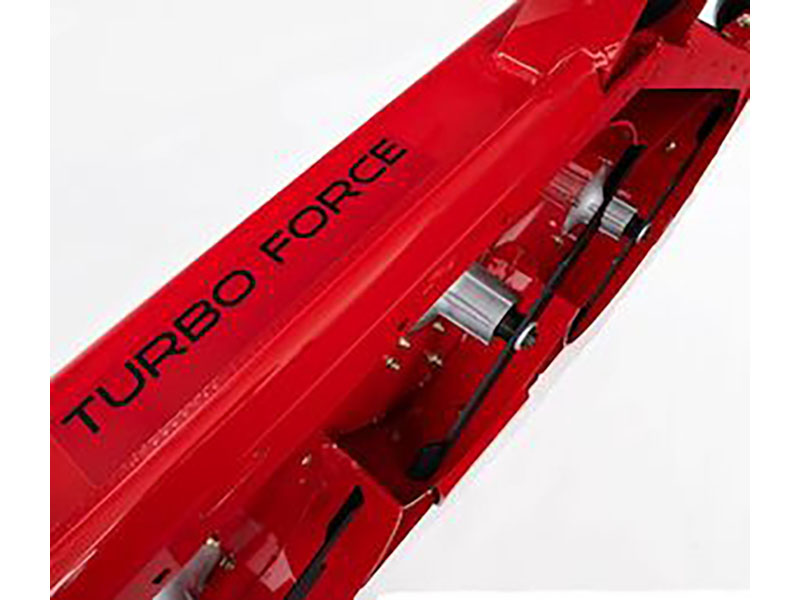

  • TURBO FORCE® CUTTING DECK: Enjoy years of reliable performance with a fully tubular frame and 7-gauge steel deck.

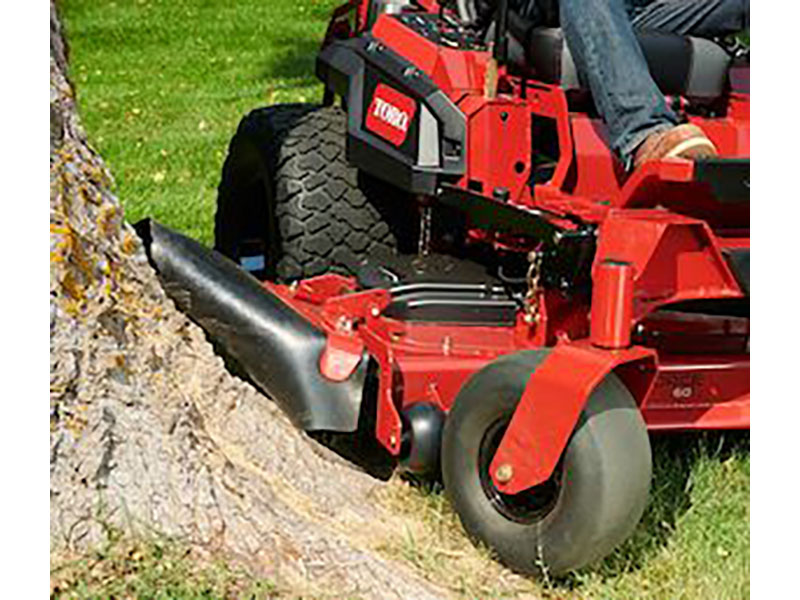

  • RUBBER DISCHARGE CHUTE: Trim close without damaging landscape structures or your chute.

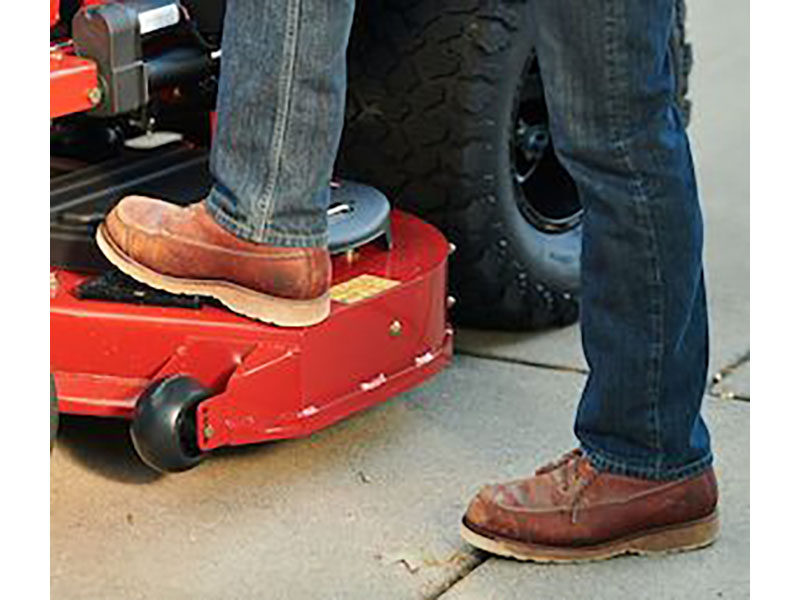

  • DECK STEP PLATE: Keep your grip and remove excess mud from your shoes with a deck step plate.

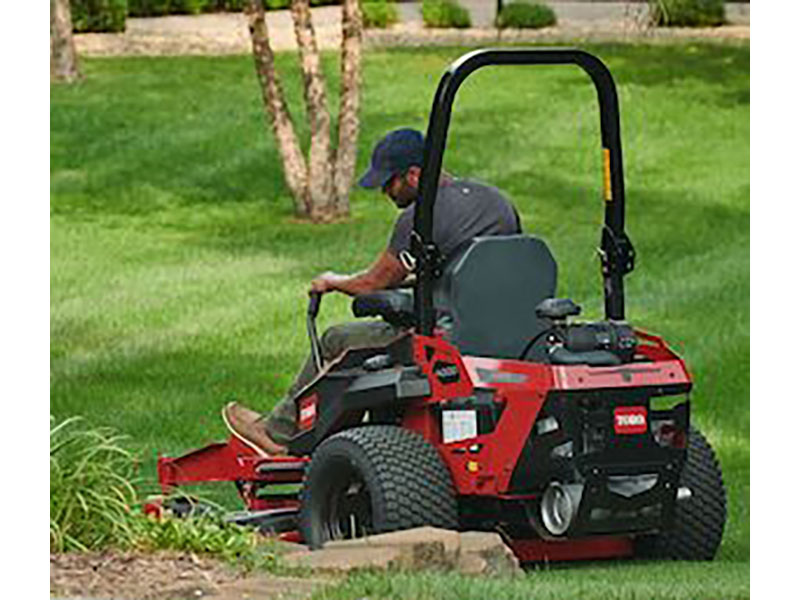

  • CLEAR SIGHTLINE TO REAR TIRES: Clear sightline to rear tires for enhanced contro so you can clear a path without tire spin.

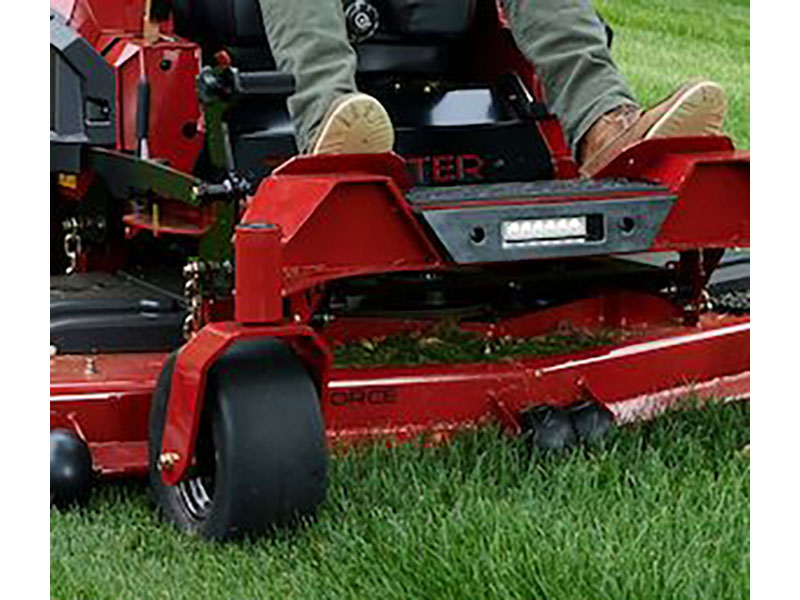

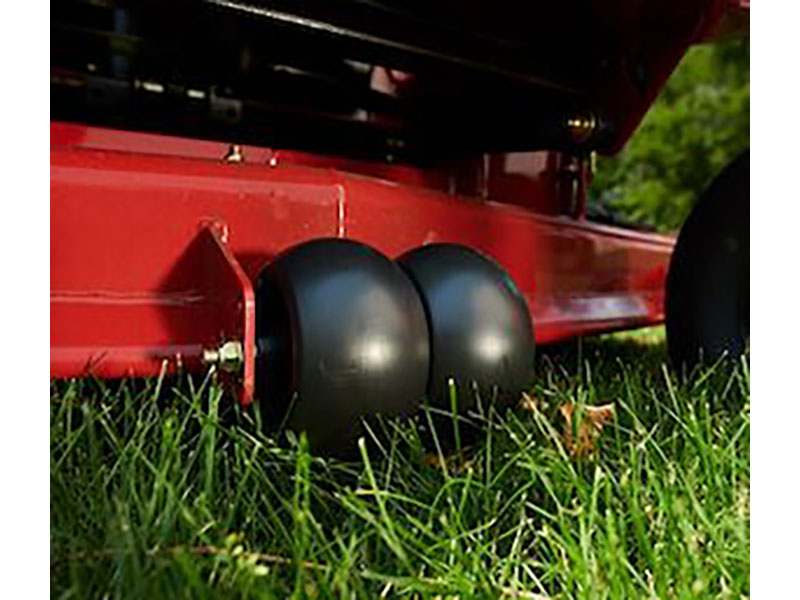

  • DUAL CAPTURE ANTI-SCALP ROLLERS: Intelligently engineered dual capture anti-scalp rollers ensure the highest quality of cut in the harshest terrain you can throw at it.

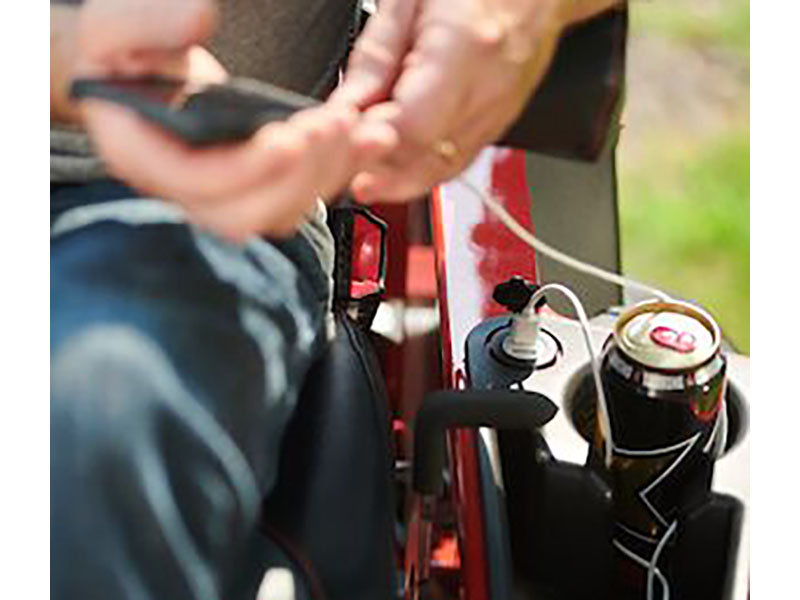

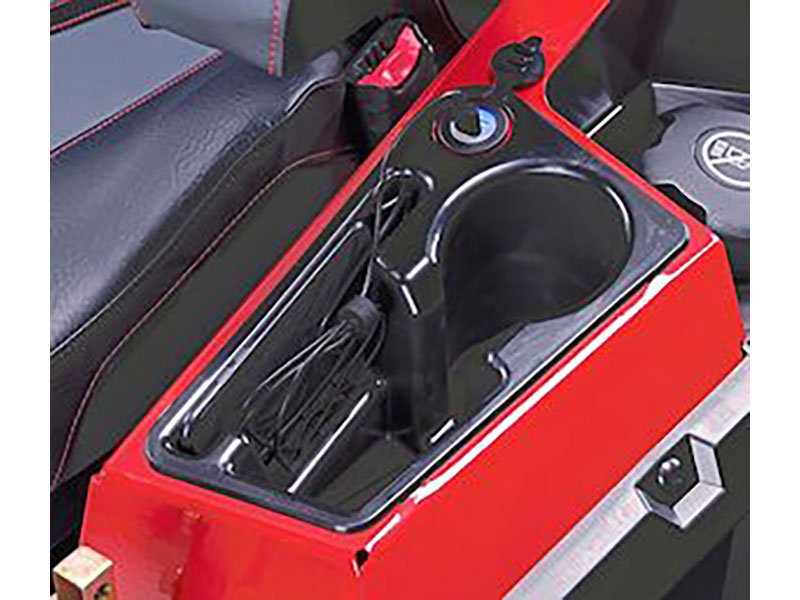

  • PHONE AND CUP HOLDER: Keep your phone and drink at arm's reach.
  • USB PORT: USB ports to help you stay charged on the job.
  • HORIZON360® BUSINESS MANAGEMENT SOFTWARE.: Managing and growing your business is hard work. Using a business management software system shouldn't make it harder. That is why we built Horizon360. If you can type and point/click a mouse, you have all the skills required.
