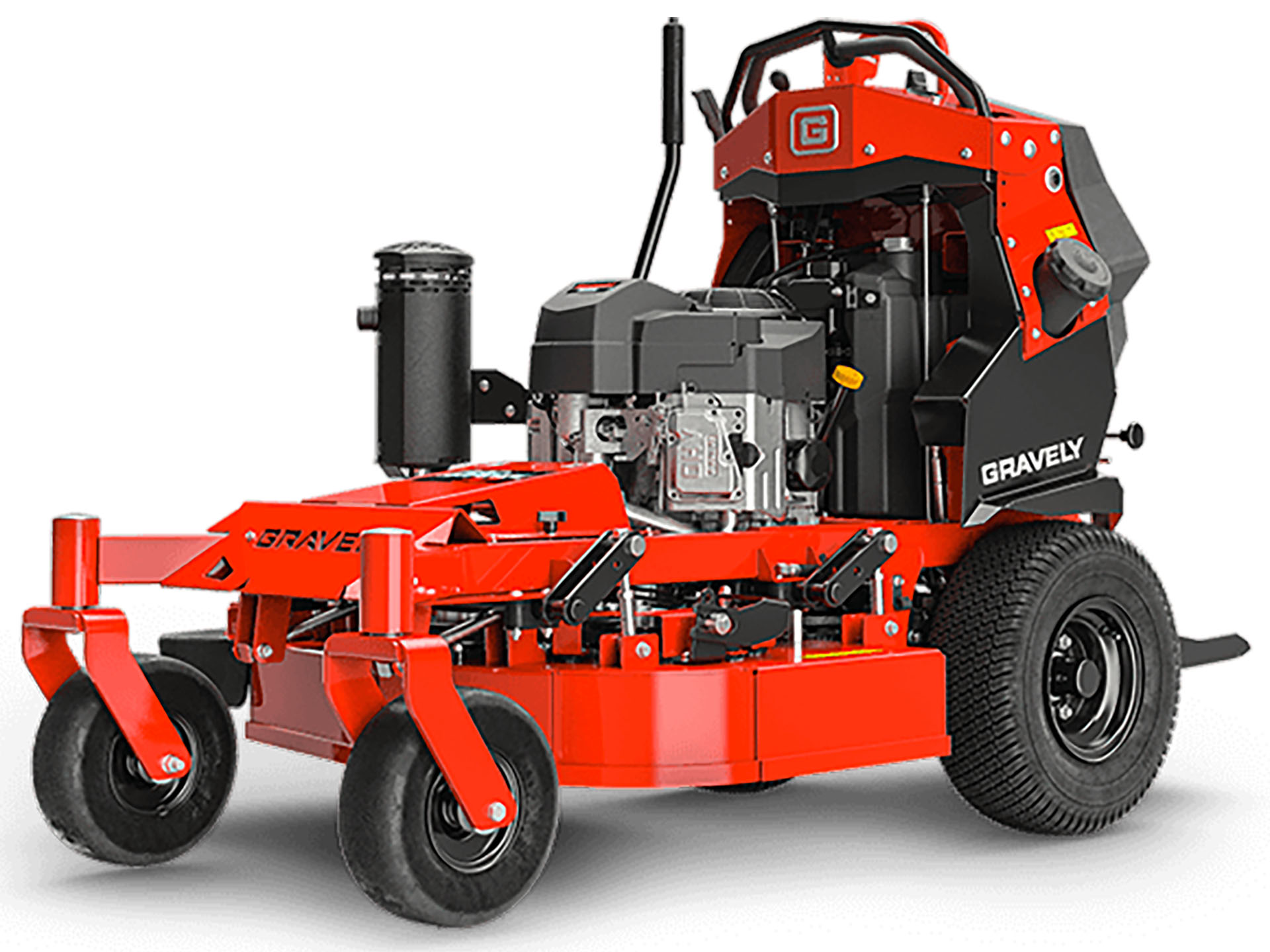

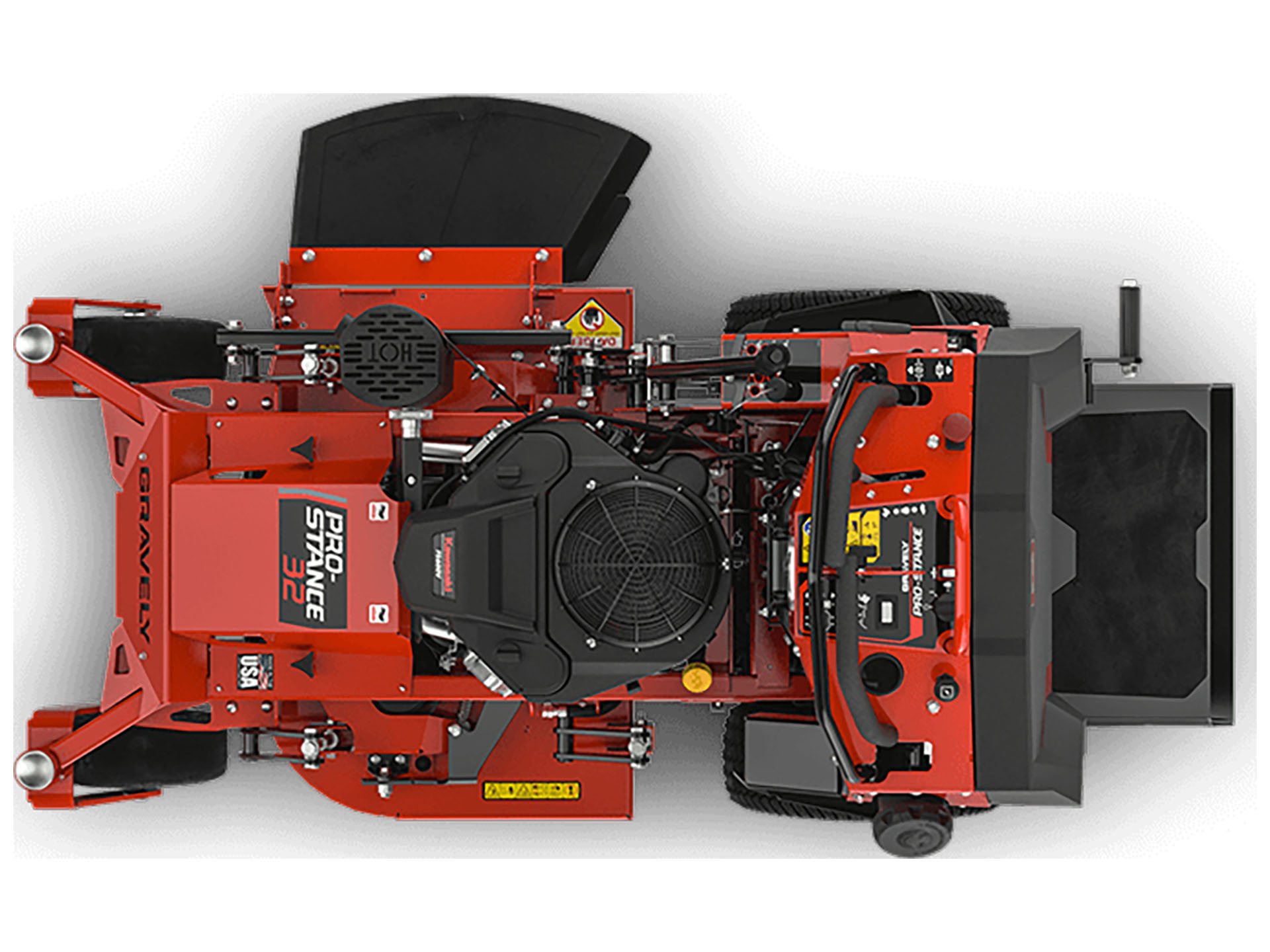

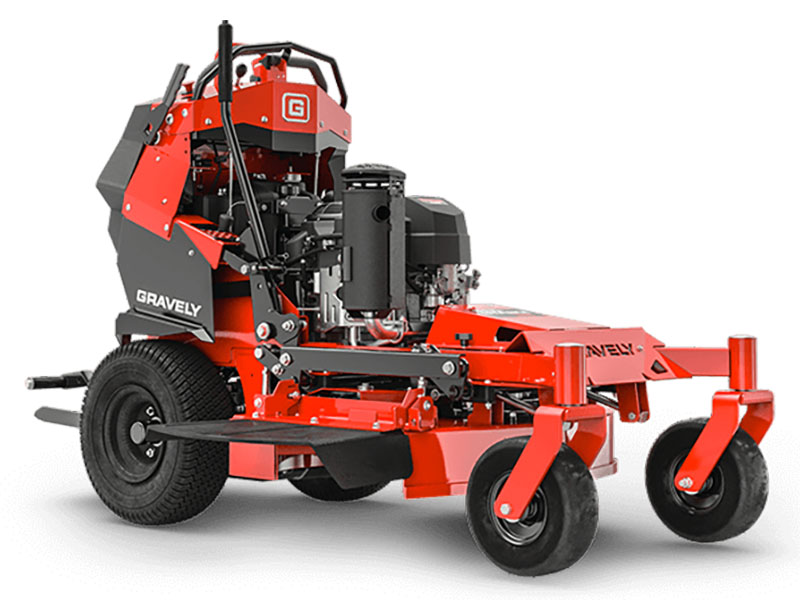

2025 Gravely USA Pro-Stance 32 in. Kawasaki FS600V 18.5 hp
2025 Gravely USA Pro-Stance 32 in. Kawasaki FS600V 18.5 hp

General Information

Manufacturer
Gravely USA
Gravely USA
Model Year
2025
2025
Model
Pro-Stance 32 in. Kawasaki FS600V 18.5 hp
Pro-Stance 32 in. Kawasaki FS600V 18.5 hp
Model Code
994157
994157
Color
Gravely Red
Gravely Red

Drivetrain

Drive System
Hydro-Gear® ZT-3100® Transaxles
Hydro-Gear® ZT-3100® Transaxles
Transmission/Drive
Driver position - Stand
Driver position - Stand
Transmission Type
Hydrostatic
Hydrostatic
Travel Speed Forward
8 mph (12.9 kph)
8 mph (12.9 kph)
Travel Speed Reverse
3 mph (4.8 kph)
3 mph (4.8 kph)
Drive Tires
18 x 8.5 - 8 in. (45.7 x 21.6 - 20.3 cm)
18 x 8.5 - 8 in. (45.7 x 21.6 - 20.3 cm)
Steering Tires
11 x 4 - 5 in. (27.9 x 10.2 - 12.7 cm)
11 x 4 - 5 in. (27.9 x 10.2 - 12.7 cm)
Parking Brake
Lever Activated
Lever Activated

Electrical

Battery
Size - U1
Size - U1
Battery Type
Lead Acid - Maintenance Free
Lead Acid - Maintenance Free
Battery Capacity
300 CCA
300 CCA

Engine

Engine Make
Kawasaki®
Kawasaki®
Engine Model
FS600V
FS600V
Horsepower
18.5 hp
18.5 hp
Displacement
603 cc (36.8 ci)
603 cc (36.8 ci)
Fuel System
Gas
Gas
Fuel Capacity
6 gal. (22.7 l)
6 gal. (22.7 l)

Measurements

Length
64 in. (162.6 cm)
64 in. (162.6 cm)
Width

32 in. (81.3 cm)

Chute up - 33.5 in. (85.1 cm)

Chute down - 49 in. (124.5 cm)

32 in. (81.3 cm)

Chute up - 33.5 in. (85.1 cm)

Chute down - 49 in. (124.5 cm)

Weight
Assembled - 762 lb. (345.6 kg)
Assembled - 762 lb. (345.6 kg)
Cutting Width
32 in. (81.3 cm)
32 in. (81.3 cm)
Mowing Height Range
1.5 - 5 in. (3.8 - 12.7 cm)
1.5 - 5 in. (3.8 - 12.7 cm)

Operational

Deck Construction
Fabricated X-Factor® 3
Fabricated X-Factor® 3
Deck Material
7 ga.
7 ga.
Discharge
Side
Side
Working Area Capacity
2.6 acres / 1.1 hectares
2.6 acres / 1.1 hectares

Other

Warranty
5 year or 1,000 hour no hour limit for the first two years limited lifetime deck shell and frame
5 year or 1,000 hour no hour limit for the first two years limited lifetime deck shell and frame

Features

  • ADDED EFFICIENCY: Reduced complexity gives users the freedom to make critical adjustments in just minutes.

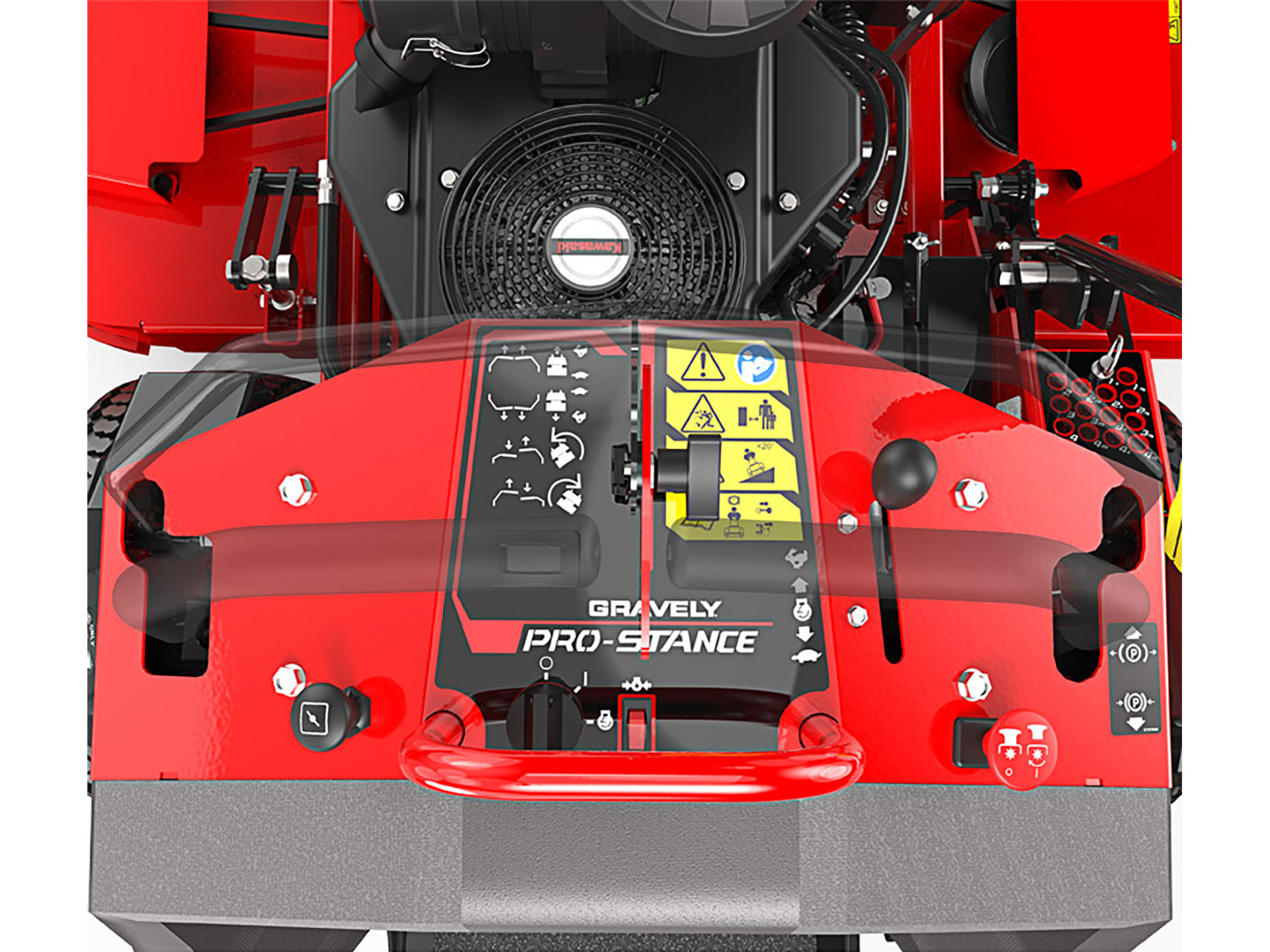

  • ADJUSTABLE CRUISE BAR: Allows the operator to limit and expand the unit’s maximum speed in tight working environments.
  • HEIGHT OF CUT SYSTEM: Less deck-lifting force, a thumb release and vertical pin system add ease to cutting height adjustments.

Features

  • ADDED EFFICIENCY: Reduced complexity gives users the freedom to make critical adjustments in just minutes.
  • ADJUSTABLE CRUISE BAR: Allows the operator to limit and expand the unit’s maximum speed in tight working environments.
  • HEIGHT OF CUT SYSTEM: Less deck-lifting force, a thumb release and vertical pin system add ease to cutting height adjustments.
